2024 Ford Mustang fuse box diagram
The 2024 Mustang 7th generation (also known as "S650") has 2 different fuse boxes:
Under hood fuse box diagram
Body control module diagram

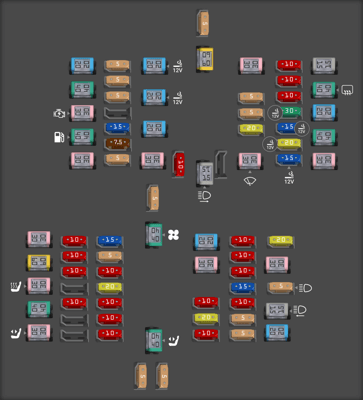

Under hood fuse box
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse FMM/MCase 30A | 1 | Body control module 2. | |||
Fuse FMM/MCase 60A | 2 | Automatic brake system pump. | |||
Fuse FMM/MCase 30A | 3 | Climate controlled seat. | |||
Fuse FMM/MCase 40A | 4 | Automatic brake system valve. | |||
Fuse FMM/MCase 30A | 5 | Passenger power seat. | |||
Fuse FMM/MCase 20A | 6 | Convertible top motor - right-hand side. | |||
Fuse FMM/MCase 40A | 7 | Not used (spare). | |||
Fuse FMM/MCase 30A | 8 | Starter motor. | |||
Fuse FMM/MCase 40A | 9 | Fuel pump. | |||
Fuse FMM/MCase 30A | 10 | Not used (spare). | |||
Fuse MINI 10A | 11 | Not used (spare). | |||
Fuse MINI 10A | 12 | Not used (spare). | |||
Fuse MINI 10A | 13 | Not used (spare). | |||
Fuse MINI 10A | 15 | Not used (spare). | |||
Fuse MINI 5A | 18 | Not used (spare). | |||
Fuse MINI 5A | 19 | Not used (spare). | |||
Fuse MINI 5A | 20 | USB charge port 2. | |||
Fuse MINI 15A | 22 | Fuel injectors. | |||
Fuse MINI 7.5A | 23 | Wireless accessory charging module. | |||
Fuse MINI 5A | 24 | Not used (spare). | |||
Fuse MINI 15A | 25 | Not used (spare). | |||
Fuse MINI 5A | 26 | Not used (spare). | |||
Fuse MINI 10A | 27 | Not used (spare). | |||
Fuse MINI 20A | 28 | Not used (spare). | |||
Fuse MINI 10A | 29 | Not used (spare). | |||
Fuse MINI 10A | 30 | Advanced driver assistance module. | |||
Fuse MINI 10A | 31 | Not used (spare). | |||
Fuse FMM/MCase 20A | 32 | Power point 2. | |||
Fuse FMM/MCase 20A | 33 | Power point 1. | |||
Fuse FMM/MCase 20A | 34 | Not used (spare). | |||
Fuse FMM/MCase 30A | 35 | Not used (spare). | |||
Fuse MINI 5A | 36 | Not used (spare). | |||
Fuse FMM/MCase 40A | 37 | Blower motor. | |||
Fuse FMM/MCase 40A | 38 | Driver power seat, Driver seat module. | |||
Fuse MINI 5A | 39 | Not used (spare). | |||
Fuse MINI 5A | 40 | Not used (spare). | |||
Fuse MINI 10A | 41 | On-board diagnostic connector, Gateway module. | |||
Fuse MINI 5A | 42 | Not used (spare). | |||
Fuse FMM/MCase 60A | 43 | Not used (spare). | |||
Fuse FMM/MCase 15A | 44 | Right-hand headlamps. | |||
Fuse FMM/MCase 20A | 45 | Transmission fluid pump. | |||
Fuse FMM/MCase 30A | 46 | Not used (spare). | |||
Fuse MINI 10A | 47 | Automatic brake system module. | |||
Fuse MINI 20A | 48 | Not used (spare). | |||
Fuse MINI 10A | 49 | Not used (spare). | |||
Fuse FMM/MCase 30A | 51 | Not used (spare). | |||
Fuse MINI 5A | 52 | Not used (spare). | |||
Fuse MINI 5A | 53 | Rain sensor. | |||
Fuse MINI 20A | 54 | Not used (spare). | |||
Fuse FMM/MCase 30A | 55 | Wiper motor. | |||
Fuse MINI 10A | 56 | Decklid release. | |||
Fuse MINI 10A | 57 | Not used (spare). | |||
Fuse MINI 10A | 58 | Powertrain control module, Electronic power assist steering. | |||
Fuse MINI 15A | 59 | Not used (spare). | |||
Fuse MINI 10A | 60 | Not used (spare). | |||
Fuse MINI 5A | 61 | Right-hand tail lamp. | |||
Fuse MINI 5A | 62 | Left-hand tail lamp. | |||
Fuse MINI 10A | 63 | Heated exterior mirror. | |||
Fuse MINI 10A | 64 | Not used (spare). | |||
Fuse MINI 10A | 65 | Not used (spare). | |||
Fuse MINI 30A | 66 | Vehicle power 2. | |||
Fuse MINI 15A | 67 | Vehicle power 1. | |||
Fuse MINI 20A | 68 | Vehicle power 4. | |||
Fuse MINI 15A | 69 | Vehicle power 3. | |||
Fuse MINI 20A | 70 | Electronic steering column lock. | |||
Fuse FMM/MCase 30A | 71 | Body control module. | |||
Fuse MINI 5A | 72 | Headlamp control module. | |||
Fuse FMM/MCase 15A | 73 | Left-hand headlamps. | |||
Fuse FMM/MCase 20A | 74 | Differential pump. | |||
Fuse FMM/MCase 15A | 75 | Not used (spare). | |||
Fuse FMM/MCase 40A | 76 | Heated rear window. | |||
Fuse FMM/MCase 20A | 77 | Convertible top motor - lefthand side. | |||
Fuse FMM/MCase 40A | 78 | Body control module 1. | |||
Fuse FMM/MCase 30A | 79 | Not used (spare). | |||

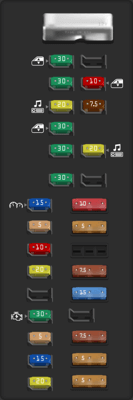

Body control module
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse MICRO2 10A | 2 | Power windows. | |||
Fuse MICRO2 7.5A | 3 | Not used (spare). | |||
Fuse MICRO2 20A | 4 | Amplifier. | |||
Fuse MICRO3 10A | 6 | Not used (spare). | |||
Fuse MICRO3 10A | 7 | Auxiliary body module. | |||
Fuse MICRO3 5A | 8 | Telematics control unit module. | |||
Fuse MICRO3 5A | 9 | Intrusion sensor module, Performance electric parking brake. | |||
Fuse MICRO3 7.5A | 12 | Climate control module. | |||
Fuse MICRO3 7.5A | 13 | Steering column control module, Instrument cluster display. | |||
Fuse MICRO3 15A | 14 | Not used. | |||
Fuse MICRO3 15A | 15 | SYNC. | |||
Fuse MICRO3 7.5A | 17 | Not used (spare). | |||
Fuse MICRO3 7.5A | 18 | Not used (spare). | |||
Fuse MICRO3 5A | 19 | Headlamp switch. | |||
Fuse MICRO3 5A | 20 | Push button ignition switch. | |||
Fuse MICRO3 5A | 21 | Not used. | |||
Fuse MICRO3 5A | 22 | Vehicle dynamics module. | |||
Fuse MICRO2 30A | 23 | Driver door module, Driver door window. | |||
Fuse MICRO2 30A | 24 | Vehicle dynamics module. | |||
Fuse MICRO2 20A | 25 | Amplifier. | |||
Fuse MICRO2 30A | 26 | Passenger door module, Passenger door window. | |||
Fuse MICRO2 30A | 27 | Left-hand rear window power (convertible). | |||
Fuse MICRO2 30A | 28 | Right-hand rear window power (convertible). | |||
Fuse MICRO2 15A | 29 | Instrument cluster module. | |||
Fuse MICRO2 5A | 30 | Not used (spare). | |||
Fuse MICRO2 10A | 31 | SYNC display screen, Integrated control panel, Gateway module, Remote keyless entry. | |||
Fuse MICRO2 20A | 32 | Audio unit. | |||
Fuse MICRO2 30A | 34 | Run/start relay. | |||
Fuse MICRO2 5A | 35 | Auxiliary body module. | |||
Fuse MICRO2 15A | 36 | Not used (spare). | |||
Fuse MICRO2 20A | 37 | Auto-dimming interior mirror, Heated steering wheel. | |||
Ford Mustang fuse box diagrams change across years, pick the right year of your vehicle:
Doesn't match your car?Ask for your diagram
Found a mistake? Let us know!
Source: Ford Mustang 2024 Owner's Manual
