1998 Ford Mustang fuse box diagram

The 1998 Mustang 4th generation (also known as "SN-95", "SN95") has 2 different fuse boxes:

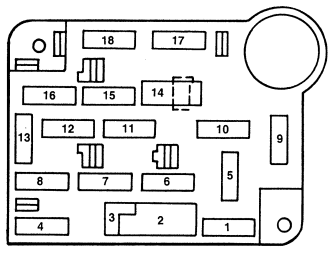

The instrument panel fuse panel

The instrument panel fuse panel

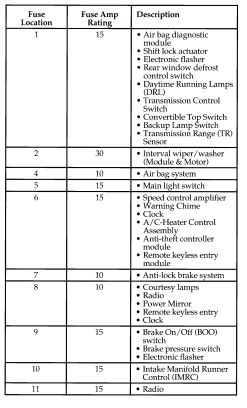

Type	No.	Description
Fuse ATO 15A	1	Air bag diagnostic module, Shift lock actuator, Electronic flasher, Rear window defrost control switch, Daytime Running Lamps (DRL), Transmission Control Switch, Convertible Top: Switch, Backup Lamp, Switch Transmission Range (TR) Sensor View problems with the headlight fuse...
Fuse ATO 30A	2	Interval wiper/washer (Module & Motor)
Fuse ATO 10A	4	Air bag system
Fuse ATO 15A	5	Main light switch
Fuse ATO 15A	6	Speed control amplifier, Warning Chime, Clock, A/CHHanter Control Assembly, Anti-theft controller module, Remote keyless entry module
Fuse ATO 10A	7	Anti-lock brake system
Fuse ATO 10A	8	Courtesy lamps, Radio, Power Mirror, Remote keyless entry, Clock View problems with the radio fuse...
Fuse ATO 15A	9	Brake On/Off (BOO) switch, Brake pressure switch, Electronic flasher
Fuse ATO 15A	10	Intake Manifold Runner Control (IMRC)
Fuse ATO 15A	11	Radio View problems with the radio fuse...

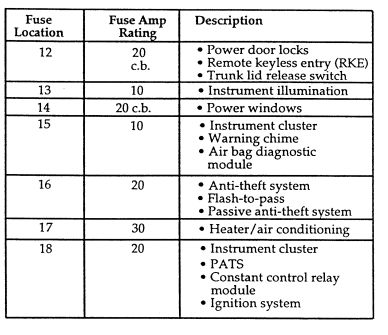

Circuit breaker MAXI	12	Power door locks, Remote keyless entry (RKE), Trunk lid release switch
Fuse ATO 10A	13	Instrument illumination
Circuit breaker MAXI	14	Power windows
Fuse ATO 10A	15	Instrument cluster, Warning chime, Air bag diagnostic module
Fuse ATO 20A	16	Anti-theft system, Flash-to-pass, Passive anti-theft system
Fuse ATO 30A	17	Heater/air conditioning View problems with the air conditioning fuse...
Fuse ATO 20A	18	Instrument cluster, PATS, Constant control relay module, Ignition system View problems with the starter fuse...

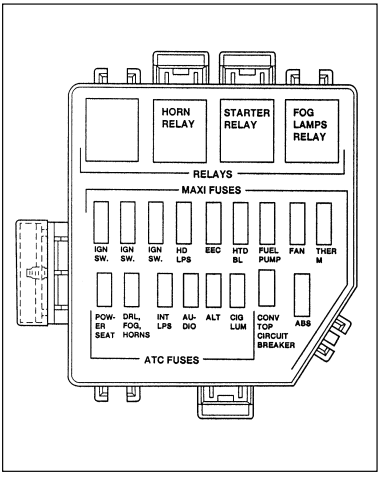

The high current fuse panel

The high current fuse panel

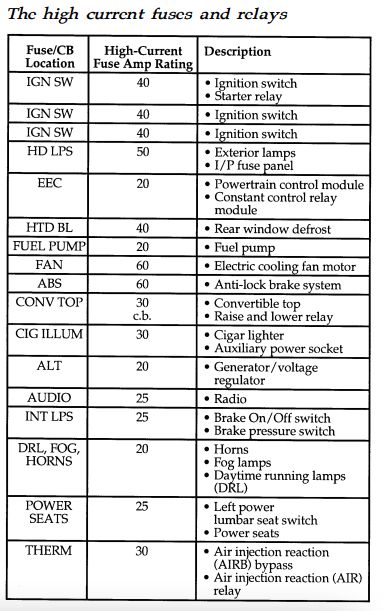

Type	No.	Description
Fuse MAXI 40A	1	Ignition switch, Starter relay View problems with the starter fuse...
Fuse MAXI 40A	2	Ignition switch
Fuse MAXI 40A	3	Ignition switch
Fuse MAXI 50A	4	Exterior lamps I/P fuse panel
Fuse MAXI 20A	5	Powertrain control module, Constant control relay module
Fuse MAXI 40A	6	Rear window defrost
Fuse MAXI 20A	7	Fuel pump View problems with the fuel pump fuse...
Fuse MAXI 60A	8	Electric cooling fan motor
Fuse MAXI 30A	9	Air injection reaction (AIRB) bypass, Air injection reaction (AIR) relay
Fuse MAXI 60A	10	Anti-lock brake system
Fuse ATO 25A	11	Left power lumbar seat switch, Power seats
Fuse ATO 20A	12	Horns, Fog lamps, Daytime running lamps (DRL) View problems with the headlight fuse... View problems with the fog light fuse... View problems with the horn fuse...
Fuse ATO 25A	13	Brake On/Off switch, Brake pressure switch
Fuse ATO 25A	14	Radio View problems with the radio fuse...
Fuse ATO 20A	15	Generator/voltage regulator View problems with the alternator fuse...
Fuse ATO 30A	16	Cigar lighter, Auxiliary power socket View problems with the cigarette lighter fuse...
Circuit breaker ATO	17	Convertible top, Raise and lower relay
Relay	R1	undefined
Relay	R2	HORN RELAY View problems with the horn relay...
Relay	R3	STARTER RELAY View problems with the starter relay...
Relay	R4	FOG LAMPS RELAY
