1999 Mazda Bongo fuse box diagram
The 1999 Bongo 4th generation (also known as "SK", "SL") has 2 different fuse boxes:
Passenger compartment fuse box A diagram
Passenger compartment fuse box B diagram

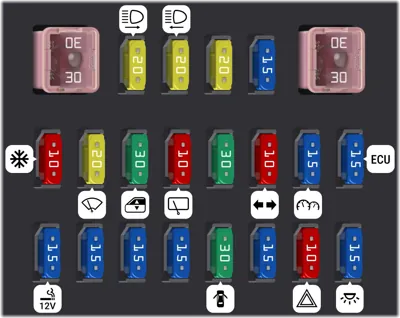

Passenger compartment fuse box A
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse MINI 20A | 1 | (HEAD R) Right-hand headlight | |||
Fuse MINI 20A | 2 | (HEAD L) Left-hand headlight | |||
Fuse MINI 20A | 3 | (HEAD HI) Headlights high beam | |||
Fuse MINI 15A | 4 | (CLOSER) Power back door | |||
Fuse MINI 10A | 5 | (A/C) Air conditioning | |||
Fuse MINI 20A | 6 | (WIPER) Wipers | |||
Fuse MINI 30A | 7 | (P.WIND) Power windows | |||
Fuse MINI 10A | 8 | (R. WIP) Rear wiper | |||
Fuse MINI 30A | 9 | L. ROOF | |||
Fuse MINI 10A | 10 | (TURN) Turn signal | |||
Fuse MINI 15A | 11 | (METER) Instrument cluster | |||
Fuse MINI 15A | 12 | (ENGINE) Engine control system | |||
Fuse MINI 15A | 13 | (CIGAR) Cigar lighter / power outlet | |||
Fuse MINI 15A | 14 | BLIND R | |||
Fuse MINI 15A | 15 | BLIND L | |||
Fuse MINI 15A | 16 | (TAIL) Tail lights | |||
Fuse MINI 30A | 17 | (D. LOCK) Power door lock system | |||
Fuse MINI 15A | 18 | (STOP) Stop lights | |||
Fuse MINI 10A | 19 | (HAZARD) Hazard light | |||
Fuse MINI 15A | 20 | (ROOM) Interior lights | |||

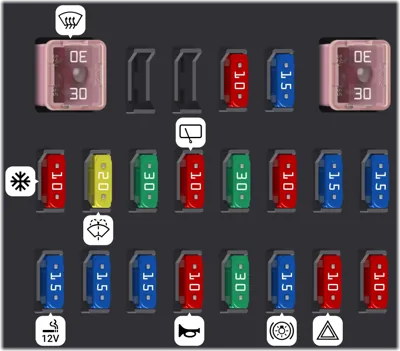

Passenger compartment fuse box B
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse MINI 10A | 3 | Glow | |||
Fuse MINI 15A | 4 | Closer | |||
Fuse MINI 10A | 5 | Air Conditioning | |||
Fuse MINI 20A | 6 | Wiper washer | |||
Fuse MINI 30A | 7 | Wind | |||
Fuse MINI 10A | 8 | Rear wiper | |||
Fuse MINI 30A | 9 | Lifting loop | |||
Fuse MINI 10A | 10 | Turn | |||
Fuse MINI 15A | 11 | Meter | |||
Fuse MINI 15A | 12 | Engine | |||
Fuse MINI 15A | 13 | Cigarette Lighter | |||
Fuse MINI 15A | 14 | Right curtain | |||
Fuse MINI 15A | 15 | Left curtain | |||
Fuse MINI 10A | 16 | Horn | |||
Fuse MINI 30A | 17 | Door's lock | |||
Fuse MINI 15A | 18 | Stop | |||
Fuse MINI 10A | 19 | Hazard | |||
Fuse MINI 10A | 20 | Room | |||
Fuse FMX/JCase 30A | 21 | Defogger | |||
Fuse FMX/JCase 30A | 22 | Option | |||
Mazda Bongo fuse box diagrams change across years, pick the right year of your vehicle:
Doesn't match your car?Ask for your diagram
Found a mistake? Let us know!
Source: Mazda Bongo 1999 Owner's Manual
