The 2012 Duster generation G1 pre-facelift (also known as "H79", "HS") has 6 different fuse boxes:

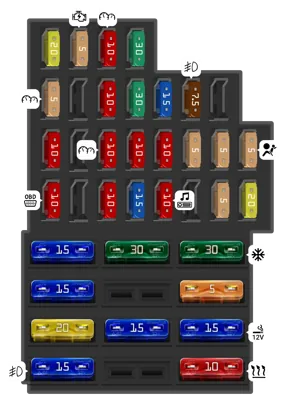

| Type | No. | Description | |||
|---|---|---|---|---|---|
Fuse MINI 20A | 1 | Windshield cleaner, glass cleaner switch, rear door glass heating relay | |||
Fuse MINI 5A | 2 | Instrument cluster, fuel pump relay, electronic unit of the engine control system (ECU), signal unit seat belt lamps and airbag deactivation security | |||
Fuse MINI 10A | 3 | Brake light switch | |||
Fuse MINI 10A | 4 | Diagnostic connector, immobilizer antenna unit, automatic transmission control selector, body electrical equipment control unit | |||
Fuse MINI 5A | 5 | automatic transmission, starter relay, electronic transmission control unit | |||
Fuse MINI 10A | 9 | Instrument cluster, low beam left headlight | |||
Fuse MINI 10A | 10 | Low beam right headlight | |||
Fuse MINI 10A | 11 | Instrument cluster, left headlamp driving beam | |||
Fuse MINI 10A | 12 | Right headlight high beam | |||
Fuse MINI 30A | 13 | Rear door window regulators electric motors | |||
Fuse MINI 30A | 14 | Front door window regulators electric motors | |||
Fuse MINI 10A | 15 | ABS system electronic control unit, acceleration sensors, steering angle sensor | |||
Fuse MINI 15A | 16 | Electric heating of the front seats | |||
Fuse MINI 15A | 17 | Beep | |||
Fuse MINI 10A | 18 | Left front and rear position lamps | |||
Fuse MINI 10A | 19 | Right front and rear position lamps lights, glove box lighting, instrument cluster lighting, hazard warning switch, heating system control unit (air conditioning) and ventilation, audio system, cigarette lighter, center lock switch, power window switches front doors, transmission mode switch, lights license plate lights, right front and rear marker lights lights | |||
Fuse MINI 7.5A | 20 | Rear fog lamp | |||
Fuse MINI 5A | 21 | Electric heating of exterior mirrors | |||
Fuse MINI 5A | 24 | Electric steering pump | |||
Fuse MINI 5A | 25 | Gas fuel supply system | |||
Fuse MINI 5A | 26 | SRS system | |||
Fuse MINI 20A | 27 | Rear door windshield wiper motor, sound alarm, TDC sensor, reverse light switch on manual transmission | |||
Fuse ATO 15A | 28 | Control unit for interior electrical equipment (energy-saving mode) | |||
Fuse ATO 15A | 29 | Intermittent operation of the windscreen cleaner, direction indicator switch, hazard warning switch, central locking control unit, buzzer, engine control system diagnostic connector (pin 16) | |||
Fuse ATO 20A | 30 | Central lock | |||
Fuse ATO 15A | 31 | Fog lamps, fog lamp relays | |||
Fuse ATO 30A | 32 | Heated rear door glass | |||
Fuse ATO 15A | 34 | Rear gear solenoid clutch | |||
Fuse ATO 30A | 36 | HVAC and ventilation system electric motor | |||
Fuse ATO 5A | 37 | Electric drive of external rear view mirrors | |||
Fuse ATO 15A | 38 | Cigarette lighter | |||
Fuse ATO 10A | 39 | Heating, air conditioning and ventilation system electric motor relay | |||
| Type | No. | Description | |||
|---|---|---|---|---|---|
Relay | 2 | Fog light relay | |||
Fuse MAXI 25A | 3 | ABS ECU fuse (118) on modification without ESP - ABS ECU and ESP (1094) on modification with ESP | |||
Fuse MAXI 50A | 4 | ABS ECU fuse (118) on modification without ESP - ABS ECU and ESP (1094) on modification with ESP | |||
Relay | 5 | Cold air electric fan relay | |||
Fuse MAXI 70A | 6 | Preheating unit supply circuit fuse (257) | |||
Fuse MAXI 40A | 7 | Fuse in modification with cooling system electric fan power conditioner (262) through motor cooling system electric fan high speed relay (336) or through motor cooling system electric fan low speed relay (700) on relay board (784) and electric fan resistor (321) - powering the air conditioner clutch (171) through the air conditioner clutch relay (474) on the board (784) | |||
Fuse MAXI 80A | 8 | Power supply circuit fuse for power steering electric pump (186) | |||
Fuse MAXI 60A | 9 | Outdoor Light Switch Power Circuit Fuse (209) - Interior Fuse Box (1016) | |||
Fuse MAXI 60A | 10 | Ignition lock fuse (104) - outdoor light switch (209) | |||
Fuse MAXI 25A | 11 | Fuse F34 power supply in the interior fuse box (1016) on the 4x4 modification (all-wheel drive) | |||
Fuse MAXI 80A | 12 | Power fuse for the additional interior heater (1113) through the additional heater relay 1 (1067) and the additional heater relay 2 (1068) | |||
Relay | 13 | Diesel Engine Injection System ECU Power Relay | |||
Fuse ATO 30A | 14 | A fuse in a standard modification with a cooling system electric fan power heater (188) through the low speed of the engine cooling system electric fan (700) on the relay board (784) | |||
Fuse ATO 15A | 15 | Cylinder No. 5 (1890) Injector Shut-Off Solenoid Valve Power Fuse 5 (197) - Vehicle Speed Sensor (250) - Fuel Water Sensor (414) - Camshaft Position Sensor (746) - Mass Air Flow Sensor (799) | |||
Fuse ATO 30A | 16 | Injection System ECU Relay Power Circuit Fuse (983) | |||
Diode MINI | 18 | Air Conditioner Compressor Electromagnetic Clutch Diode | |||
Relay | 19 | Low speed electric fan relay | |||
Relay | 20 | Air Conditioning Switch relay | |||
Relay | 21 | Electric fan high speed relay | |||
| Type | No. | Description | |||
|---|---|---|---|---|---|
Relay | R1 | Relay for additional interior heater 1 | |||
Relay | R2 | Relay for additional interior heater 2 | |||
| Type | No. | Description | |||
|---|---|---|---|---|---|
Relay | R1 | Rear window heating relay | |||
| Type | No. | Description | |||
|---|---|---|---|---|---|
Fuse ATO 25A | F3 | Control and power supply for the injection lock relay on the relay board - power supply for the fuel pump relay on the relay board | |||
Fuse ATO 30A | F4 | Fuse in standard heating version: Power supply for the cooling fan assembly through the low-speed fan relay on the relay board | |||
Fuse MAXI 40A | F5 | Fuse in version with air conditioning: Power supply for the cooling fan assembly through the high-speed fan relay or through the low-speed fan relay on the relay board and the fan assembly resistor - Power supply for the air conditioning clutch through the air conditioning clutch relay on the board | |||
Fuse MAXI 60A | F6 | Power supply for the single lever - power supply for fuses F29 and F36 in the passenger compartment fuse box | |||
Fuse MAXI 60A | F7 | Ignition switch - single lever - power supply to fuse F23 in the passenger compartment fuse box | |||
Fuse MAXI 25A | F8 | Power supply for fuse F34 in the passenger compartment fuse box in 4x4 version (four-wheel drive) | |||
Fuse MAXI 20A | F10 | Additional fuel pump | |||
Fuse MAXI 50A | F11 | Electronic control unit for the anti-lock braking system in versions without electronic stability program | |||
Fuse MAXI 25A | F12 | Electronic control unit for the anti-lock braking system in versions without electronic stability program | |||
Relay | K1 | High-speed fan assembly | |||
Relay | K2 | Air conditioning clutch | |||
Relay | K3 | Low-speed fan assembly | |||
Relay | K4 | Fuel pump | |||
Relay | K5 | Injection lock | |||
Relay | K6 | Horn | |||
Relay | K7 | Front fog lights | |||
Relay | K8 | Cold air blower | |||
| Type | No. | Description | |||
|---|---|---|---|---|---|
Fuse ATO 15A | F1 | Electronic control unit for the automatic transmission (119) with a 4-speed automatic transmission in F4R403 and F4R405 engines | |||
Fuse ATO 25A | F3 | Control and power supply for the injection lock relay on the relay board - power supply for the fuel pump relay on the relay board | |||
Fuse ATO 15A | F4 | Fuse in version with air conditioning: power supply for the air conditioning clutch through the air conditioning clutch relay on the board | |||
Fuse MAXI 40A | F5 | Fuse in version with air conditioning: power supply for the cooling fan assembly through the high-speed fan relay or through the low-speed fan relay on the relay board and fan assembly resistor | |||
Fuse MAXI 60A | F6 | Ignition switch - single lever - power supply to fuse F23 in the passenger compartment fuse box | |||
Fuse MAXI 60A | F7 | Power supply for the single lever - power supply for fuses F29 and F36 in the passenger compartment fuse box | |||
Fuse MAXI 25A | F8 | Power supply for fuse F34 in the passenger compartment fuse box in 4x4 version (four-wheel drive) | |||
Fuse MAXI 20A | F10 | Additional fuel pump | |||
Fuse MAXI 50A | F11 | Electronic control unit for the anti-lock braking system in versions without electronic stability program | |||
Fuse MAXI 25A | F12 | Electronic control unit for the anti-lock braking system in versions without electronic stability program | |||
Relay | K1 | High-speed fan assembly | |||
Relay | K2 | Air conditioning clutch | |||
Relay | K3 | Low-speed fan assembly | |||
Relay | K4 | Fuel pump | |||
Relay | K5 | Injection lock | |||
Relay | K6 | Horn | |||
Relay | K7 | Front fog lights | |||
Relay | K8 | Cold air blower | |||
Relay | K9 | Starter motor | |||
