2020 Hyundai Elantra fuse box diagram
The 2020 Elantra generation Gen6 (also known as "AD") has 2 different fuse boxes:
Instrument panel fuse panel diagram
Engine compartment fuse panel diagram

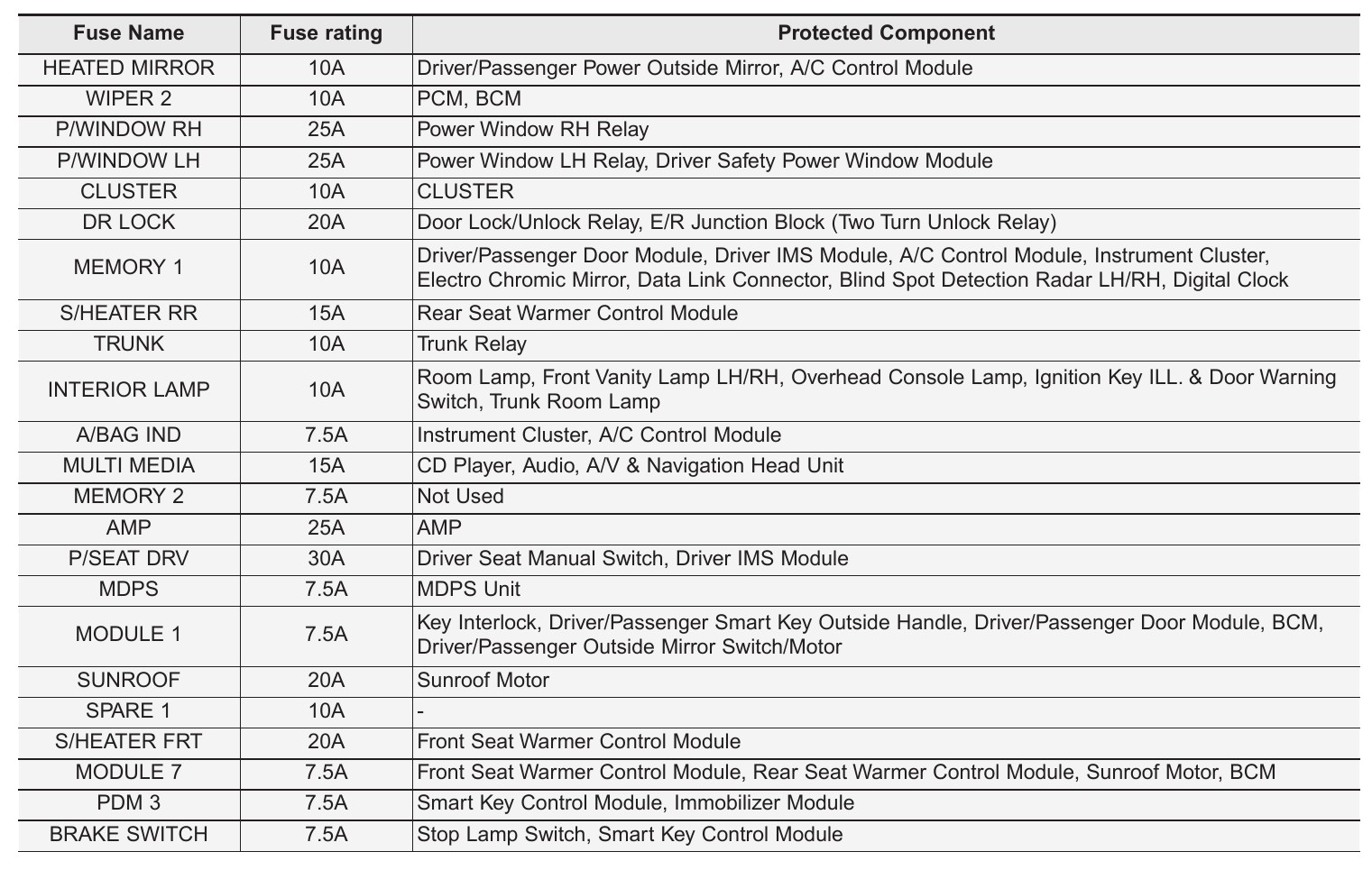

Instrument panel fuse panel
| Type | Description | |
|---|---|---|
Fuse MICRO2 10A | HEATED MIRROR Driver/Passenger Power Outside Mirror, A/C Control Module | |
Fuse MICRO2 10A | WIPER 2 PCM, BCM | |
Fuse MICRO2 25A | P/WINDOW RH Power Window RH Relay | |
Fuse MICRO2 25A | P/WINDOW LH Power Window LH Relay, Driver Safety Power Window Module | |
Fuse MICRO2 10A | CLUSTER CLUSTER | |
Fuse MICRO2 20A | DR LOCK Door Lock/Unlock Relay, E/R Junction Block (Two Turn Unlock Relay) | |
Fuse MICRO2 10A | MEMORY 1 Driver/Passenger Door Module, Driver IMS Module, A/C Control Module, Instrument Cluster, Electro Chromic Mirror, Data Link Connector, Blind Spot Detection Radar LH/RH, Digital Clock | |
Fuse MICRO2 15A | S/HEATER RR Rear Seat Warmer Control Module | |
Fuse MICRO2 10A | TRUNK Trunk Relay | |
Fuse MICRO2 10A | INTERIOR LAMP Room Lamp, Front Vanity Lamp LH/RH, Overhead Console Lamp, Ignition Key ILL. & Door Warning Switch, Trunk Room Lamp | |
Fuse MICRO2 7.5A | A/BAG IND Instrument Cluster, A/C Control Module | |
Fuse MICRO2 15A | MULTI MEDIA CD Player, Audio, A/V & Navigation Head Unit | |
Fuse MICRO2 7.5A | MEMORY 2 Not Used | |
Fuse MICRO2 25A | AMP AMP | |
Fuse MICRO2 30A | P/SEAT DRV Driver Seat Manual Switch, Driver IMS Module | |
Fuse MICRO2 7.5A | MDPS MDPS Unit | |
Fuse MICRO2 7.5A | MODULE 1 Key Interlock, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Door Module, BCM, Driver/Passenger Outside Mirror Switch/Motor | |
Fuse MICRO2 20A | SUNROOF Sunroof Motor | |
Fuse MICRO2 10A | SPARE 1 - | |
Fuse MICRO2 20A | S/HEATER FRT Front Seat Warmer Control Module | |
Fuse MICRO2 7.5A | MODULE 7 Front Seat Warmer Control Module, Rear Seat Warmer Control Module, Sunroof Motor, BCM | |
Fuse MICRO2 7.5A | PDM 3 Smart Key Control Module, Immobilizer Module | |
Fuse MICRO2 7.5A | BRAKE SWITCH Stop Lamp Switch, Smart Key Control Module | |
Fuse MICRO2 7.5A | PDM 2 Smart Key Control Module, Immobilizer Module | |
Fuse MICRO2 7.5A | START W/O Smart Key : Transmission Range Switch, Ignition Lock Switch With Smart Key :Transmission Range Switch, PCM | |
Fuse MICRO2 7.5A | A/C lonizer, A/C Control Module, E/R Junction Block (A/Con Relay, Blower Relay), Gasoline PTC Relay | |
Fuse MICRO2 15A | AIR BAG SRS Control Module, Passenger Occupant Detection Sensor | |
Fuse MICRO2 10A | MODULE 3 Stop Lamp Switch, BCM, Sport Mode Switch, Driver/Passenger Door Module | |
Fuse MICRO2 25A | IG1 PCB Block (Fuse : ABS3, ECU5, TCU2) | |
Fuse MICRO2 15A | PDM 1 Smart Key Control Module | |
Fuse MICRO2 15A | HEATED STEERING BCM | |
Fuse MICRO2 7.5A | MODULE 6 BCM, Smart Key Control Module | |
Fuse MICRO2 10A | MODULE 5 Crash Pad Switch, Electro Chromic Mirror, A/T Shift Lever Indicator, A/V & Navigation Head Unit, Audio, A/C Control Module, Console Switch LH/RH, Head Lamp Leveling Device LH/RH, Front Seat Warmer Control Module, Rear Seat Warmer Control Module, Driver IMS Module | |
Fuse MICRO2 10A | FCA FCA Module | |
Fuse MICRO2 10A | A/CON 2 E/R Junction Block (Blower Relay), Blower Motor, Blower Resistor, A/C Control Module | |
Fuse MICRO2 25A | WIPER 1 Wiper Motor, PCB Block (Front Wiper (Low) Relay) | |
Fuse MICRO2 15A | WASHER Multifunction Switch | |
Fuse MICRO2 10A | MODULE 4 Lane keeping Assist System, Parking Assist Buzzer, BCM | |
Fuse MICRO2 10A | SPARE 2 - | |
Fuse MICRO2 10A | MODULE 2 E/R Junction Block (Power Outlet Relay), USB Charging Connector, Smart Key Control Module, BCM, Audio, A/V & Navigation Head Unit, CD Player, Power Outside Mirror Switch, AMP, Driver Door Module, Digital Clock, Console Switch |

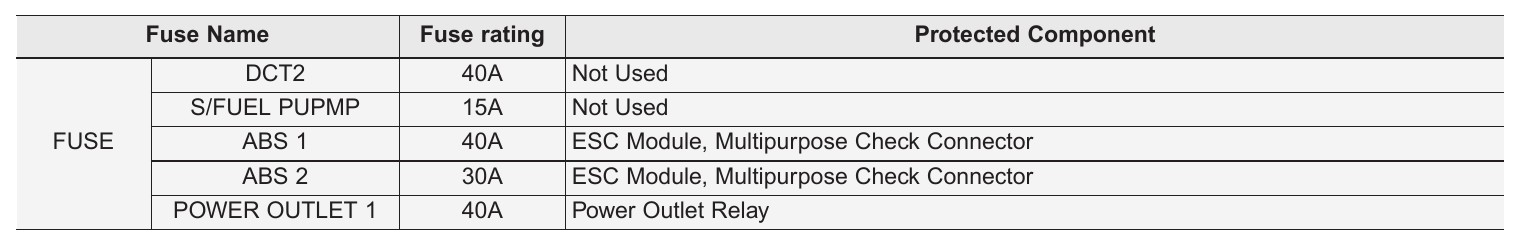

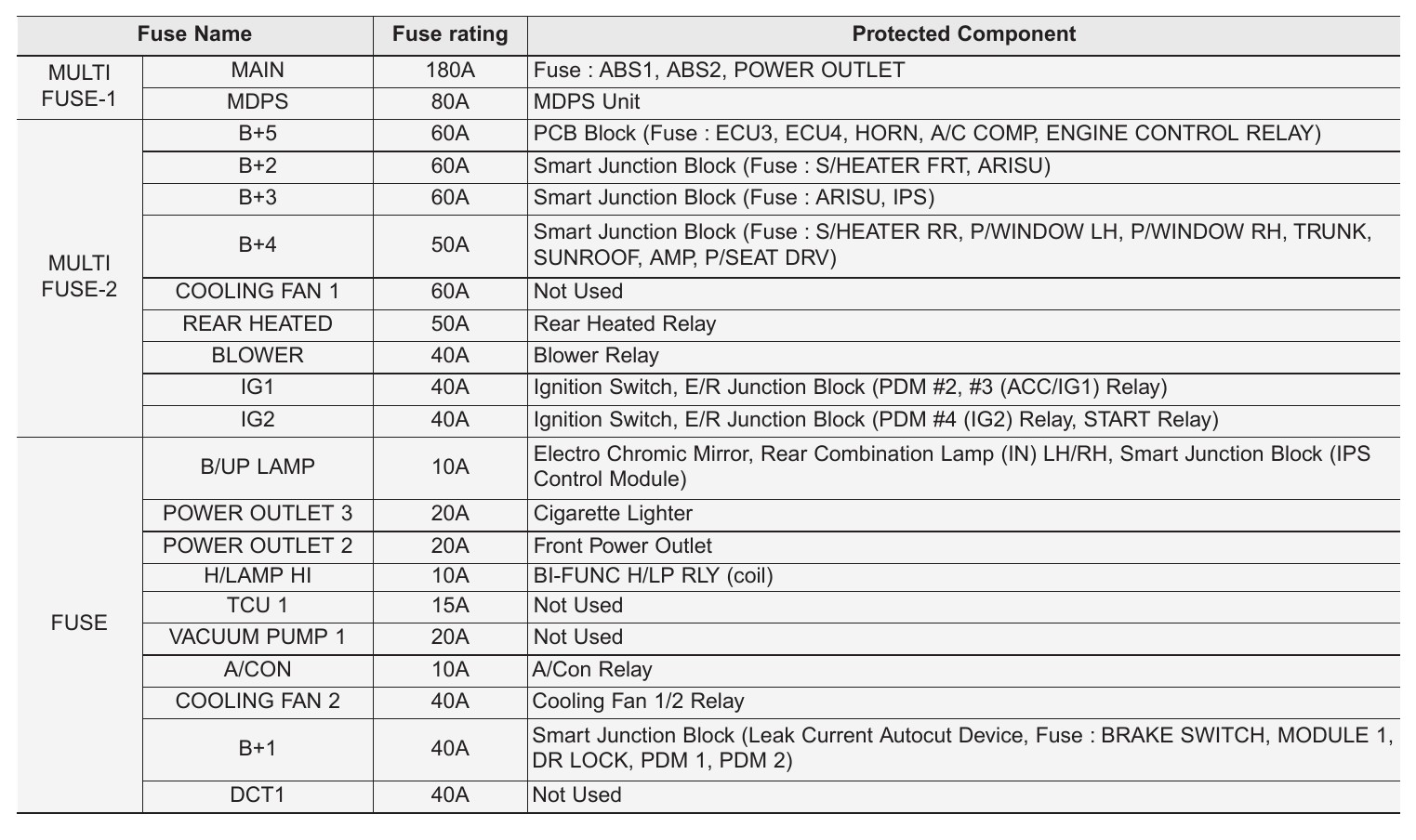

Engine compartment fuse panel
| Type | Description | |
|---|---|---|
Fuse MICRO2 10A | 1 Canister Close Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (Cooling Fan 1/2 Relay) | |
Fuse MICRO2 10A | 2 ECU2 - Not used | |
Fuse MICRO2 20A | 3 PCM | |
Fuse MICRO2 15A | 4 Oxygen Sensor (UP/DOWN) | |
Fuse MICRO2 20A | 5 Ignition Coil #1/#2/#3/#4 | |
Fuse MICRO2 10A | 6 Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH, Smart Junction Block (IPS Control Module) | |
Fuse MICRO2 15A | 7 PCM | |
Fuse MICRO2 10A | 8 A/Con Relay | |
Fuse MICRO2 7.5A | 9 SPARE | |
Fuse MICRO2 10A | 10 SPARE | |
Fuse MICRO2 10A | 11 PCM | |
Fuse MICRO2 15A | 12 (Vacuum pump) - Not Used | |
Fuse MICRO2 15A | 13 Transmission Range Switch, E/R Junction Block (Fuse : B/UP LAMP) | |
Fuse MICRO2 10A | 14 ESC Module, Multipurpose Check Connector | |
Fuse MICRO2 15A | 15 Injector #1/#2/#3/#4 | |
Fuse MICRO2 10A | 16 Fuel Pump Relay | |
Fuse MICRO2 15A | 17 PCM | |
Fuse MICRO2 20A | 18 Horn Relay | |
Fuse MICRO2 15A | 19 SPARE | |
Fuse MICRO2 20A | 20 SPARE | |
Fuse MICRO2 25A | 21 SPARE | |
Fuse MICRO2 30A | 22 SPARE | |
Fuse MICRO2 15A | 23 LDC | |
Multi fuse block MUSB | 24 PCB Block (Fuse : ECU3, ECU4, HORN, A/C COMP, ENGINE CONTROL RELAY) | |
Multi fuse block MUSB | 25 Smart Junction Block (Fuse : S/HEATER FRT, ARISU) | |
Multi fuse block MUSB | 26 Smart Junction Block (Fuse : ARISU, IPS) | |
Multi fuse block MUSB | 27 Smart Junction Block (Fuse : S/HEATER RR, P/WINDOW LH, P/WINDOW RH, TRUNK, SUNROOF, AMP, P/SEAT DRV) | |
Multi fuse block MUSB | 28 (COOLING FAN 1) - Not Used | |
Multi fuse block MUSB | 29 Rear Heated Relay | |
Multi fuse block MUSB | 30 Blower Relay | |
Multi fuse block MUSB | 31 Ignition Switch, E/R Junction Block (PDM #2, #3 (ACC/IG1) Relay) | |
Multi fuse block MUSB | 32 Ignition Switch, E/R Junction Block (PDM #4 (IG2) Relay, START Relay) | |
Multi fuse block MUSB | 34 PTC HEATER | |
Fuse MICRO2 20A | 38 Cigarette Lighter | |
Fuse MICRO2 20A | 39 Front Power Outlet | |
Fuse MICRO2 15A | 41 (TCU 1) - Not used | |
Fuse MICRO2 20A | 42 (Vaccum pump) - Not Used | |
Fuse MICRO2 15A | 43 S/FUEL PUMP | |
Fuse FMM/MCase 40A | 44 Cooling Fan 1/2 Relay | |
Fuse FMM/MCase 40A | 45 Smart Junction Block (Leak Current Autocut Device, Fuse : BRAKE SWITCH, MODULE 1, DR LOCK, PDM 1, PDM 2) | |
Fuse FMM/MCase 40A | 46 DCT1 | |
Fuse FMM/MCase 40A | 47 DCT2 | |
Fuse FMM/MCase 40A | 50 ESC Module, Multipurpose Check Connector | |
Fuse FMM/MCase 30A | 51 ESC Module, Multipurpose Check Connector | |
Fuse FMM/MCase 40A | 54 Power Outlet Relay | |
Multi fuse block MUSB | 55 Fuse : ABS1, ABS2, POWER OUTLET | |
Multi fuse block MUSB | 56 MDPS Unit | |
Fuse puller | FUSE PULLER Extraction tool for fuse replacement. | |
Relay | R1 DOOR LOCK | |
Relay | R2 COOLING FAN 2_R | |
Relay | R3 PDM3 | |
Relay | R4 START | |
Relay | R6 PDM4 | |
Relay | R7 Fuel Pump Relay | |
Relay | R8 PDM2 | |
Relay | R9 COOLING FAN | |
Relay | R10 REAR HEATED | |
Relay | R11 PTC HEATER | |
Relay | R12 BLOWER | |
Relay | R14 BI-FUNC H/LP RLY (coil) |
