2019 Honda CR-V fuse box diagram

The 2019 CR-V 5th generation (also known as "RW1", "RW2", "RW3", "RW4", "RW5", "RW6", "RT") has 2 different fuse boxes:

Interior Fuse Box diagram

Engine Compartment Fuse Box diagram

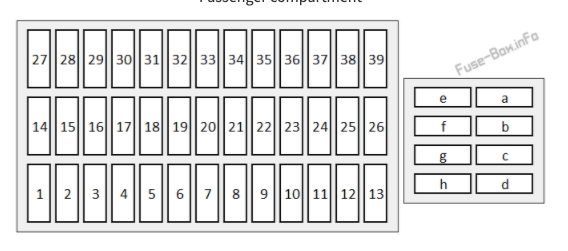

Interior Fuse Box

Interior Fuse Box
Type	No.		Description
Fuse MINI 10A	1		Accessory
Fuse MINI 5A	2		Key Lock
Fuse MINI 10A	3		Option 3
Fuse MINI 5A	4		Option 2 [Models with smart entry system]
Fuse MINI 10A	4		Transmission [Models without smart entry system]
Fuse MINI 10A	5		Option
Fuse MINI 10A	6		SRS Indicator
Fuse MINI 10A	7		Meter
Fuse MINI 15A	8		Fuel Pump View problems with the fuel pump fuse...
Fuse MINI 10A	9		A/C View problems with the air conditioning fuse...
Fuse MINI 20A	10		Accessory Power Socket (Center Console) View problems with the cigarette lighter fuse...
Fuse MINI 5A	11		Engine Control
Fuse MINI 10A	12		Passenger's Side Door Lock
Fuse MINI 10A	13		Driver's Side Door Unlock
Fuse MINI 20A	14		Rear Driver's Side Power Window
Fuse MINI 20A	15		Front Passenger's Side Power Window
Fuse MINI 20A	16		Door Lock
Fuse MINI 10A	17		Transmission [Models with smart entry system]
Fuse MINI 5A	17		Option 2 [Models without smart entry system]
Fuse MINI 10A	18		Front Driver's Lumbar support [Not avalaible on all models]
Fuse MINI 20A	19		Moonroof [Not avalaible on all models] View problems with the sunroof fuse...
Fuse MINI 10A	20		Starter View problems with the starter fuse...
Fuse MINI 10A	21		ACG
Fuse MINI 10A	22		Daytime Running Light View problems with the headlight fuse...
Fuse MINI 10A	23		Steering Wheel Heater [Not avalaible on all models]
Fuse MINI 5A	24		Option
Fuse MINI 10A	25		Driver's Door Lock
Fuse MINI 10A	26		Passenger's Side Door Unlock
Fuse MINI 20A	27		Rear Passenger's Side Power Window
Fuse MINI 20A	28		Driver's Power Window
Fuse MINI 20A	29		Front Accessory Power Socket
Fuse MINI 10A	30		Smart Entry [Models with smart entry system]
Fuse MINI 5A	30		STS [Models without smart entry system] View problems with the starter fuse...
Fuse MINI 20A	31		Driver's Power Seat Reclining [Not avalaible on all models]
Fuse MINI 20A	32		Front Seat Heater [Not avalaible on all models]
Fuse MINI 20A	33		Driver's Power Seat Sliding [Not avalaible on all models]
Fuse MINI 10A	34		ABS/VSA
Fuse MINI 10A	35		SRS
Fuse MINI 20A	36		HAC Option [Not avalaible on all models]
Fuse MINI 15A	37		Trailer [Not avalaible on all models]
Fuse MINI 10A	38		Driver's Side Door Lock
Fuse MINI 10A	39		Driver's Door Unlock
Fuse MINI 20A	a		Power Tailgate Closer [Not avalaible on all models]
Fuse MINI 20A	b		Passenger's Power Seat Sliding [Not avalaible on all models]
Fuse MINI 20A	c		Passenger's Power Seat Reclining [Not avalaible on all models]
Fuse MINI 20A	d		Panorama Shade Motor
Fuse MINI 20A	e		Rear Blower
Fuse MINI 20A	f		EPT L
Fuse MINI 20A	g		EPT R
Fuse MINI 20A	h		Accessory Power Socket (Cargo Area)

🖨️ Printable diagram💎

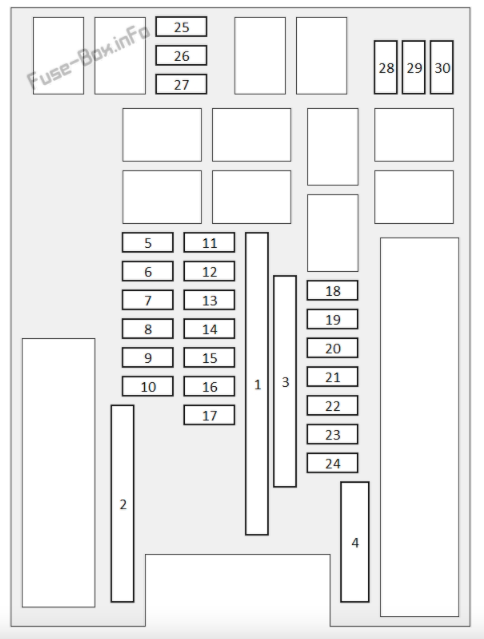

Engine Compartment Fuse Box

Engine Compartment Fuse Box
Type	No.		Description
Multi fuse block MUSB	1		Audio AMP [Models with smart entry system]
Multi fuse block MUSB	1		Electric Brake Booster
Multi fuse block MUSB	1		Main Fan Motor
Multi fuse block MUSB	1		Relay Module 1
Multi fuse block MUSB	1		IG Main 2 [Models with smart entry system]
Multi fuse block MUSB	1		Relay Module 2
Multi fuse block MUSB	1		Battery
Multi fuse block MUSB	2		EPS
Multi fuse block MUSB	2		IG Main 1 [Models with smart entry system]
Multi fuse block MUSB	2		IG Main 1 [Models without smart entry system]
Multi fuse block MUSB	2		Fuse Box Option
Multi fuse block MUSB	2		Fuse Box 1
Multi fuse block MUSB	2		Front Wiper Motor
Multi fuse block MUSB	2		Sub Fan Motor
Multi fuse block MUSB	3		Rear Defroster
Multi fuse block MUSB	3		Starter Motor
Multi fuse block MUSB	3		Fuse Box 2
Multi fuse block MUSB	3		ABS/VSA Motor
Multi fuse block MUSB	3		ABS/VSA FSR
Multi fuse block MUSB	3		Blower Motor
Multi fuse block MUSB	4		Option Block 1 [Models with smart entry system]
Multi fuse block MUSB	4		Option Block 2 [Models with smart entry system]
Multi fuse block MUSB	4		Power Tail Gate [Models with smart entry system]
Fuse MINI 7.5A	5		VB ACT [Models with smart entry system]
Fuse MINI 15A	6		Washer
Fuse MINI 15A	7		FI Main
Fuse MINI 15A	8		FI Sub [Models with smart entry system]
Fuse MINI 15A	8		DBW [Models without smart entry system]
Fuse MINI 10A	9		Stop Lights View problems with the brake light fuse...
Fuse MINI 20A	10		Injector
Fuse MINI 7.5A	11		LAF
Fuse MINI 10A	12		FI ECU [Models with smart entry system]
Fuse MINI 15A	13		Front Wiper Deicer [Models with smart entry system]
Fuse MINI 10A	14		Hazard
Fuse MINI 15A	15		IG Coil
Fuse MINI 15A	16		Transmission [Models with smart entry system]
Fuse MINI 10A	18		Back Up
Fuse MINI 15A	19		Audio View problems with the radio fuse...
Fuse MINI 20A	20		E-DPS [Not avalaible on all models]
Fuse MINI 20A	21		Rear Seat Heater [Models with smart entry system]
Fuse MINI 15A	22		Front Fog Lights [Not avalaible on all models]/Lower Shutter Grille
Fuse MINI 10A	23		Magnetic Clutch/Upper Shutter Grille
Fuse MINI 10A	24		Horn View problems with the horn fuse...
Fuse MINI 7.5A	25		Cooling Fan View problems with the cooling fan fuse...
Fuse MINI -	28		ST Magnetic Switch [Models without smart entry system]
