2007 Honda CR-V Petrol fuse box diagram
The 2007 CR-V 3rd generation (also known as "RE1", "RE2", "RE3", "RE4", "RE5", "RE7") has 3 different fuse boxes:
Interior fuse box diagram
Primary under-bonnet fuse box diagram
Secondary under-bonnet fuse box diagram

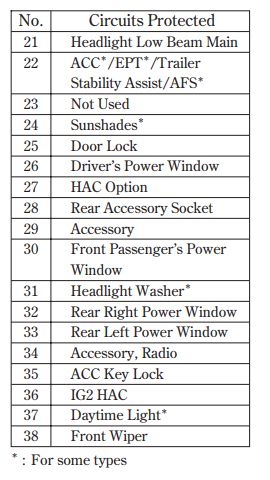

Interior fuse box
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 7.5A | 1 | Power Window | |
Fuse MINI 15A | 2 | Fuel Pump | |
Fuse MINI 10A | 3 | IG1 ACG | |
Fuse MINI 7.5A | 4 | ABS/VSA Unit | |
Fuse MINI 15A | 5 | Heated Seats [For some types] | |
Fuse MINI 20A | 6 | Front Fog Lights [For some types] | |
Fuse MINI | 7 | Daytime Running Lights [For some types] | |
Fuse MINI 10A | 8 | Rear Wiper | |
Fuse MINI 7.5A | 9 | ODS (Occupant Detection System) | |
Fuse MINI 7.5A | 10 | Meter | |
Fuse MINI 10A | 11 | SRS | |
Fuse MINI 10A | 12 | Right Headlight High Beam | |
Fuse MINI 10A | 13 | Left Headlight High Beam | |
Fuse MINI 7.5A | 14 | Small Lights (Interior) | |
Fuse MINI 7.5A | 15 | Small Lights (Exterior) | |
Fuse MINI 10A | 16 | Right Headlight Low Beam | |
Fuse MINI 10A | 17 | Left Headlight Low Beam | |
Fuse MINI 20A | 18 | Headlight High Beam Main | |
Fuse MINI 15A | 19 | Small Lights Main | |
Fuse MINI 7.5A | 20 | Rear Fog Light | |
Fuse MINI 20A | 21 | Headlight Low Beam Main | |
Fuse MINI | 22 | ACC [For some types]/EPT[For some types]/Trailer Stability Assist/AFS[For some types] | |
Fuse MINI 20A | 24 | Sunshades [For some types] | |
Fuse MINI 20A | 25 | Door Lock | |
Fuse MINI 20A | 26 | Driver's Power Window | |
Fuse MINI 20A | 27 | HAC Option | |
Fuse MINI 15A | 28 | Rear Accessory Socket | |
Fuse MINI 15A | 29 | Accessory | |
Fuse MINI 20A | 30 | Front Passenger's Power Window | |
Fuse MINI 15A | 31 | Headlight Washer [For some types] | |
Fuse MINI 20A | 32 | Rear Right Power Window | |
Fuse MINI 20A | 33 | Rear Left Power Window | |
Fuse MINI 7.5A | 34 | Accessory, Radio | |
Fuse MINI 7.5A | 35 | ACC Key Lock | |
Fuse MINI 10A | 36 | IG2 HAC | |
Fuse MINI 7.5A | 37 | Daytime Light [For some types] | |
Fuse FMX/JCase 30A | 38 | Front Wiper |

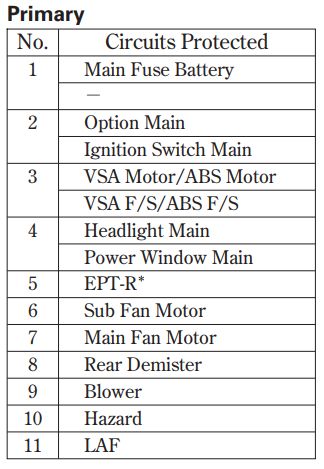

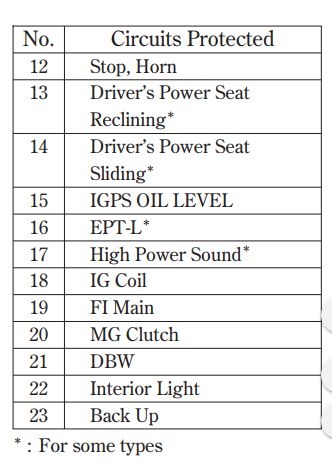

Primary under-bonnet fuse box
| Type | No. | Description | |
|---|---|---|---|
Multi fuse block MUSB | 1 | Main Fuse Battery, - | |
Multi fuse block MUSB | 2 | Option Main | |
Multi fuse block MUSB | 2 | Ignition Switch Main | |
Multi fuse block MUSB | 3 | VSA F/S/ABS F/S | |
Multi fuse block MUSB | 3 | VSA Motor/ABS Motor | |
Multi fuse block MUSB | 4 | Headlight Main | |
Multi fuse block MUSB | 4 | Power Window Main | |
Fuse FMX/JCase 30A | 5 | EPT-R [For some types] | |
Fuse FMX/JCase 20A | 6 | Sub Fan Motor | |
Fuse FMX/JCase 20A | 7 | Main Fan Motor | |
Fuse FMX/JCase 30A | 8 | Rear Demister | |
Fuse FMX/JCase 40A | 9 | Blower | |
Fuse MINI 15A | 10 | Hazard | |
Fuse MINI 15A | 11 | LAF | |
Fuse MINI 15A | 12 | Stop, Horn | |
Fuse MINI 20A | 13 | Driver's Power Seat Reclining [For some types] | |
Fuse MINI 20A | 14 | Driver's Power Seat Sliding [For some types] | |
Fuse MINI 7.5A | 15 | IGPS OIL LEVEL | |
Fuse MINI 30A | 16 | EPT-L [For some types] | |
Fuse MINI 15A | 17 | High Power Sound [For some types] | |
Fuse MINI 15A | 18 | IG Coil | |
Fuse MINI 15A | 19 | FI Main | |
Fuse MINI 7.5A | 20 | MG Clutch | |
Fuse MINI 15A | 21 | DBW | |
Fuse MINI 7.5A | 22 | Interior Light | |
Fuse MINI 10A | 23 | Back Up |
Secondary under-bonnet fuse box
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI | 1 | Headlight Washer [For some types] |
