2007 Honda CR-V Diesel fuse box diagram
The 2007 CR-V 3rd generation (also known as "RE1", "RE2", "RE3", "RE4", "RE5", "RE7") has 2 different fuse boxes:
Interior fuse box diagram
Under-bonnet fuse box diagram
Interior fuse box
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI | 1 | Power Window | |
Fuse MINI | 2 | Fuel Pump | |
Fuse MINI | 3 | IG1 ACG | |
Fuse MINI | 4 | ABS/VSA Unit | |
Fuse MINI | 5 | Heated Seats [For some types] | |
Fuse MINI | 6 | Front Fog Lights [For some types] | |
Fuse MINI | 7 | Daytime Running Lights [For some types] | |
Fuse MINI | 8 | Rear Wiper | |
Fuse MINI | 9 | ODS (Occupant Detection System) | |
Fuse MINI | 10 | Meter | |
Fuse MINI | 11 | SRS | |
Fuse MINI | 12 | Right Headlight High Beam | |
Fuse MINI | 13 | Left Headlight High Beam | |
Fuse MINI | 14 | Small Lights (Interior) | |
Fuse MINI | 15 | Small Lights (Exterior) | |
Fuse MINI | 16 | Right Headlight Low Beam | |
Fuse MINI | 17 | Left Headlight Low Beam | |
Fuse MINI | 18 | Headlight High Beam Main | |
Fuse MINI | 19 | Small Lights Main | |
Fuse MINI | 20 | Rear Fog Light | |
Fuse MINI | 21 | Headlight Low Beam Main | |
Fuse MINI | 22 | ACC [For some types]/EPT[For some types]/Trailer Stability Assist/AFS[For some types] | |
Fuse MINI | 24 | Sunshades [For some types] | |
Fuse MINI | 25 | Door Lock | |
Fuse MINI | 26 | Driver's Power Window | |
Fuse MINI | 27 | HAC Option | |
Fuse MINI | 28 | Rear Accessory Socket | |
Fuse MINI | 29 | Accessory | |
Fuse MINI | 30 | Front Passenger's Power Window | |
Fuse MINI | 31 | Headlight Washer [For some types] | |
Fuse MINI | 32 | Rear Right Power Window | |
Fuse MINI | 33 | Rear Left Power Window | |
Fuse MINI | 34 | Accessory, Radio | |
Fuse MINI | 35 | ACC Key Lock | |
Fuse MINI | 36 | IG2 HAC | |
Fuse MINI | 37 | Daytime Light [For some types] | |
Fuse FMX/JCase | 38 | Front Wiper |

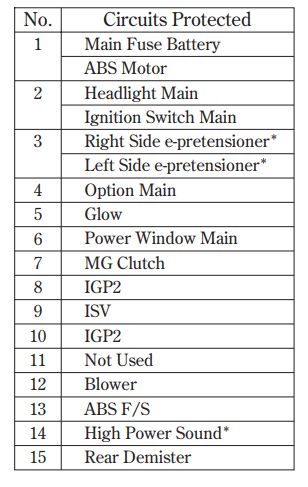

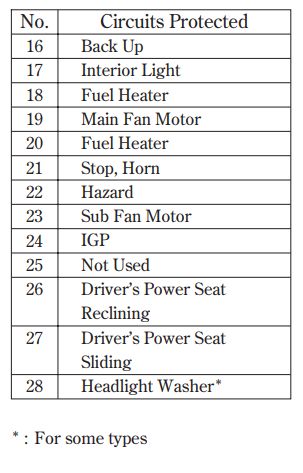

Under-bonnet fuse box
| Type | No. | Description | |
|---|---|---|---|
Multi fuse block MUSB | 1-1 | Main Fuse Battery | |
Multi fuse block MUSB | 1-2 | ABS Motor | |
Multi fuse block MUSB | 2 | Headlight Main, Ignition Switch Main | |
Multi fuse block MUSB | 3 | Right Side e-pretensioner (for some types), Left Side e-pretensioner (for some types) | |
Fuse MIDI | 4 | Option Main | |
Fuse MIDI | 5 | Glow | |
Fuse FMX/JCase | 6 | Power Window Main | |
Fuse MINI | 7 | MG Clutch | |
Fuse MINI | 8 | IGP2 | |
Fuse MINI | 9 | ISV | |
Fuse MINI | 10 | IGP2 | |
Fuse FMX/JCase | 12 | Blower | |
Fuse MINI | 13 | ABS F/S | |
Fuse MINI | 14 | High Power Sound* | |
Fuse FMX/JCase | 15 | Rear Demister | |
Fuse MINI | 16 | Back Up | |
Fuse MINI | 17 | Interior Light | |
Fuse FMX/JCase | 18 | Fuel Heater | |
Fuse FMX/JCase | 19 | Main Fan Motor | |
Fuse MINI | 20 | Fuel Heater | |
Fuse MINI | 21 | Stop, Horn | |
Fuse MINI | 22 | Hazard | |
Fuse FMX/JCase | 23 | Sub Fan Motor | |
Fuse MINI | 24 | IGP | |
Fuse FMX/JCase | 26 | Driver's Power Seat Reclining | |
Fuse FMX/JCase | 27 | Driver's Power Seat Sliding | |
Fuse FMX/JCase | 28 | Headlight Washer (for some types) | |
Fuse MINI | 29 | Spare | |
Fuse MINI | 30 | Spare | |
Fuse MINI | 31 | Spare | |
Fuse MINI | 32 | Spare | |
Fuse MINI | 33 | Spare | |
Fuse MINI | 34 | Spare |
Honda CR-V fuse box diagrams change across years, pick the right year of your vehicle:
Doesn't match your car?Ask for your diagram
Found a mistake? Let us know!
Source: Honda CR-V 2007 Owner's Manual
