2014 Chevrolet Silverado 1500 fuse box diagram
The 2014 Chevrolet Silverado 1500 has 3 different fuse boxes:
Engine Compartment Fuse Block diagram
Instrument Panel Fuse Block (Left) diagram

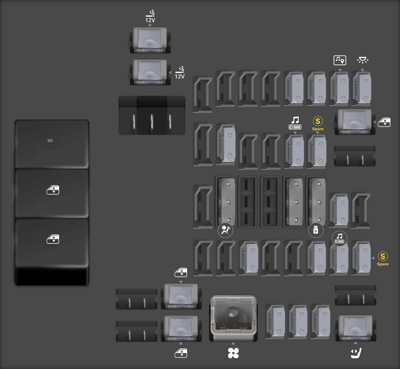

Instrument Panel Fuse Block (Right) diagram
Chevrolet Silverado 1500 fuse box diagrams change across years, pick the right year of your vehicle:
| Type | No. | Description |
|---|---|---|
Fuse FMM/MCase | 1 | Trailer Brake |
Fuse FMM/MCase | 2 | Trailer Battery |
Fuse FMX/JCase | 3 | Antilock Brake System Pump |
Fuse FMX/JCase | 4 | Instrument Panel BEC 1 |
Fuse FMX/JCase | 5 | Spare |
Fuse FMX/JCase | 6 | 4WD Trec |
Fuse FMX/JCase | 7 | Spare |
Fuse FMX/JCase | 8 | Instrument Pane BEC 2 |
Fuse FMX/JCase | 9 | Spare |
Fuse FMX/JCase | 10 | Rear Window Defogger |
Fuse FMX/JCase | 11 | Starter |
Fuse FMX/JCase | 12 | Cooling Fan 1 |
Fuse FMX/JCase | 13 | Cooling Fan 2 |
Fuse MINI | 14 | Trailer Stop/Turn Lamps, Left |
Fuse MINI | 15 | Trailer Park Lamps |
Fuse MINI | 16 | Trailer Back-up Lamp |
Fuse MINI | 17 | Trailer Stop/Turn Lamps, Right |
Fuse MICRO2 | 18 | Fuel Pump |
Fuse MICRO2 | 19 | Integrated Chassis Control Module |
Fuse MICRO2 | 20 | Electronic Suspension Control Module |
Fuse MICRO2 | 21 | Fuel Pump Power Module |
Fuse MICRO2 | 22 | Upfitter Switch 1 |
Fuse MICRO2 | 23 | Upfitter 2 |
Fuse MICRO2 | 24 | Front Wiper |
Fuse MICRO2 | 25 | Antilock Brake System Valves |
Fuse MICRO2 | 26 | Upfitter SW 2 |
Fuse MICRO2 | 27 | Upfitter SW 3 |
Fuse MICRO2 | 28 | Parking Lamps, Right |
Fuse MICRO2 | 29 | Parking Lamps, Left |
Fuse MICRO2 | 30 | Upfitter 3 |
Fuse MICRO2 | 31 | Upfitter SW 4 |
Fuse MICRO2 | 32 | Upfitter 4 |
Fuse MICRO2 | 33 | Back-up Lamps |
Fuse MICRO2 | 34 | Engine Control Module Ignition |
Fuse MICRO2 | 35 | Air Conditioning Compressor Clutch |
Fuse MICRO2 | 36 | Heated Mirrors |
Fuse MICRO2 | 37 | Upfitter 1 |
Fuse MICRO2 | 38 | Center High-Mounted Stoplamp |
Fuse MICRO2 | 39 | Miscellaneous Ignition |
Fuse MICRO2 | 40 | Transmission Ignition |
Fuse MICRO2 | 41 | Fuel Pump 2 |
Fuse MICRO2 | 42 | Cooling Fan Clutch |
Fuse MICRO2 | 43 | Engine |
Fuse MICRO2 | 44 | Fuel Injectors A, Odd |
Fuse MICRO2 | 45 | Fuel Injectors B, Even |
Fuse MICRO2 | 46 | Oxygen Sensor B |
Fuse MICRO2 | 47 | Throttle Control |
Fuse MICRO2 | 48 | Horn |
Fuse MICRO2 | 49 | Fog Lamp |
Fuse MICRO2 | 50 | Oxygen Sensor A |
Fuse MICRO2 | 51 | Engine Control Module |
Fuse MICRO2 | 52 | Interior Heater |
Fuse MICRO2 | 53 | Spare |
Fuse MICRO2 | 54 | Aeroshutter |
Fuse MICRO3 | 55 | Front Washer |
Fuse MICRO3 | 56 | Air Conditioning Compressor/ Battery Regulated Voltage Control |
Fuse MICRO3 | 57 | Air Conditioning Compressor Module/ Battery Pack |
Fuse MICRO3 | 58 | Transmission Control Module/Engine Control Module |
Relay | 59 | Headlamps |
Relay | 70 | Rear Window Defogger |
Relay | 71 | Engine Control Module |
Fuse puller | 72 | Cooling Fan Clutch |
Relay | 60 | Fuel Pump |
Relay | 61 | Upfitter 2 |
Relay | 62 | Upfitter 3 |
Relay | 63 | Upfitter 4 |
Relay | 64 | Trailer Park Lamps |
Relay | 65 | Run/Crank |
Relay | 66 | Upfitter 1 |
Relay | 67 | Fuel Pump 2 |
Relay | 68 | Air Conditioning Control |
Relay | 69 | Starter |
| Type | No. | Description |
|---|---|---|
Fuse FMM/MCase 15A | 1 | Accessory Power Outlet 2 |
Fuse MICRO2 10A | 2 | SEO Retained Accessory Power |
Fuse MICRO2 10A | 3 | Universal Garage Door Opener/inside Rearview Mirror |
Fuse MICRO2 | 4 | Empty |
Fuse MICRO2 | 5 | Empty |
Fuse MICRO2 20A | 6 | Body Control Module 3 |
Fuse MICRO2 10A | 7 | Body Contro Module 5 |
Fuse MICRO2 5A | 8 | Driver Window Switch/Mirror Switch |
Fuse MICRO2 15A | 9 | Spare |
Fuse FMX/JCase 50A | 10 | Accessory Power Outlet Retained Accessory Power |
Fuse FMX/JCase 50A | 11 | Accessory Power Outlet Battery |
Fuse FMM/MCase 15A | 12 | Retained Accessory Power/Accessory |
Fuse MINI 2A | 13 | Discrete Logic Ignition Switch |
Fuse MINI 2A | 14 | Switch Backlighting |
Fuse MICRO2 | 15 | Empty |
Fuse MICRO2 | 16 | Empty |
Fuse MICRO2 10A | 17 | Body Control Module 1 |
Fuse MICRO2 | 18 | Empty |
Fuse FMM/MCase | 19 | Spare |
Fuse FMM/MCase | 20 | Spare |
Fuse MICRO2 | 21 | Empty |
Fuse MICRO3 15A | 22 | Heater, Ventilation and Air Conditioning/ Auxiliary Heater, Ventilation and Air Conditioning Ignition |
Fuse MICRO3 10A | 23 | Instrument Cluster Ignition/Sensing Diagnostic Module Ignition |
Fuse MICRO3 15A | 24 | Spare |
Fuse MICRO3 10A | 25 | Data Link Connector/ Driver Seat Module |
Fuse MICRO3 10A | 26 | Passive Entry Passive Start/Heater, Ventilation and Air Conditioning |
Fuse MICRO2 10A | 27 | Spare |
Fuse MICRO2 10A | 28 | Spare |
Fuse MICRO2 15A | 29 | Park Enable/ Electrically Adjustable Pedals |
Fuse MICRO2 15A | 30 | SEO |
Fuse MICRO2 10A | 31 | Accessory/Run Crank |
Fuse MICRO2 7.5A | 32 | Heated Steering Whee |
Fuse MICRO2 10A | 33 | Spare |
Fuse MICRO2 10A | 34 | Instrument Cluster |
Fuse MICRO2 | 35 | Empty |
Fuse MICRO2 | 36 | Spare |
Fuse FMM/MCase | 37 | Spare |
Fuse FMM/MCase 30A | 38 | 4WD Trec |
Fuse FMM/MCase | 39 | Empty |
Fuse FMM/MCase 30A | 40 | Left Doors |
Fuse FMM/MCase 30A | 41 | Driver Power Seat |
Fuse FMX/JCase | 42 | Empty |
Fuse MICRO2 15A | 43 | Left Front Heated/ Cooled Seat |
Fuse MICRO2 15A | 44 | Right Front Heated/ Cooled Seats |
Fuse MICRO2 15A | 45 | Spare |
Fuse FMM/MCase | 46 | Empty |
Relay | 47 | Empty |
Relay | 48 | Empty |
Relay | 49 | Accessory Power Outlet 1 / Cigarette Lighter |
Relay | 50 | Run/Crank |
Relay | 51 | Empty |
| Type | No. | Description |
|---|---|---|
Fuse FMM/MCase | 1 | Accessory Power Outlet 3 |
Fuse FMM/MCase | 2 | Accessory Power Outlet 4 |
Fuse MICRO2 | 7 | Body Control Module 4 |
Fuse MICRO2 | 8 | Body Control Module 8 |
Fuse MICRO2 | 9 | Rear Seat Entertainment |
Fuse MICRO2 | 10 | Cargo Lamp |
Fuse MINI | 15 | Steering Wheel Controls |
Fuse MICRO2 | 18 | Radio |
Fuse MICRO2 | 19 | Spare |
Fuse FMM/MCase | 20 | Sunroof |
Fuse MICRO3 | 23 | Airbag/Info |
Fuse MICRO3 | 26 | Export/Power Take Off/SEO Battery 1 |
Fuse MICRO3 | 27 | Obstacle Detection/ USB Ports |
Fuse MICRO2 | 28 | Body Control Module 2 |
Fuse MICRO2 | 32 | SEO Battery 2 |
Fuse MICRO2 | 35 | AC Inverter |
Fuse MICRO2 | 36 | Amplifier |
Fuse MICRO2 | 37 | Spare |
Fuse FMM/MCase | 39 | Rear Sliding Window |
Fuse FMM/MCase | 42 | Right Door Window Motor |
Fuse FMX/JCase | 43 | Front Blower |
Fuse MICRO2 | 44 | TPIM2/SEO |
Fuse MICRO2 | 45 | Body Control Module 6 |
Fuse MICRO2 | 46 | Body Control Module 7 |
Fuse FMM/MCase | 47 | Passenger Seat |
Relay | 50 | Retained Accessory Power/Accessory |
Relay | 51 | Rear Sliding Window Open |
Relay | 52 | Rear Sliding Window Close |
