2011 Chevrolet Equinox fuse box diagram
The 2011 Equinox 2nd generation (also known as "GMT172") has 2 different fuse boxes:
Engine Compartment Fuse Block diagram

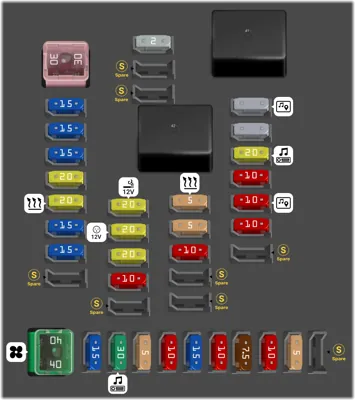

Instrument Panel Fuse Block diagram

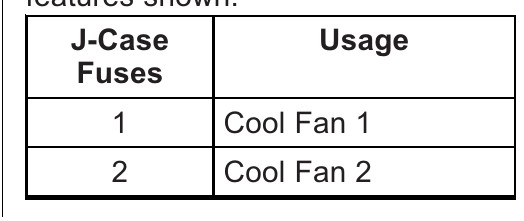

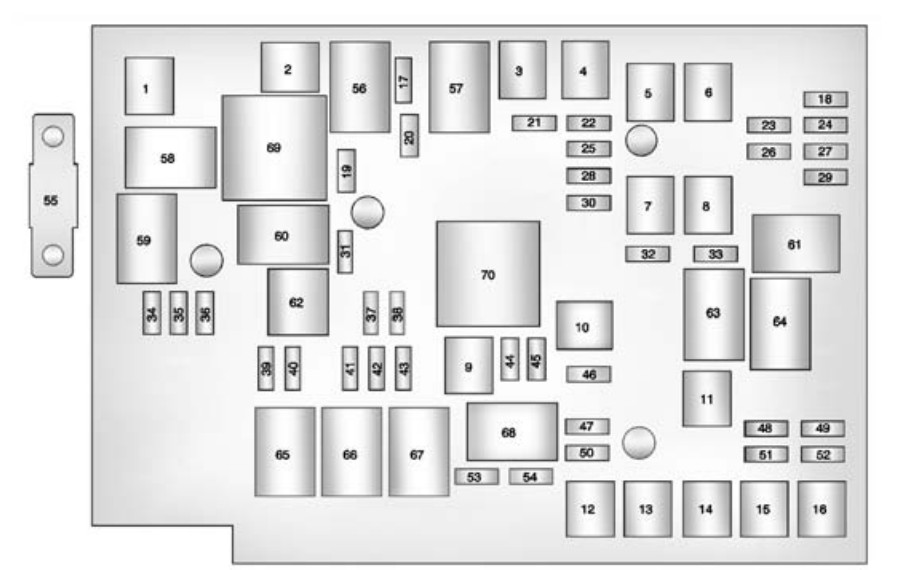

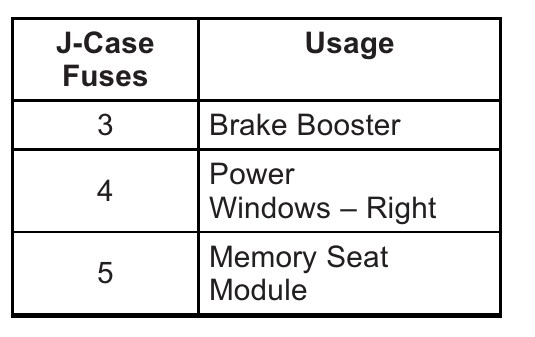

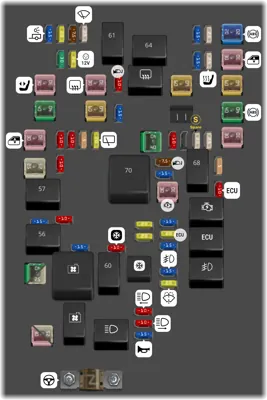

Engine Compartment Fuse Block
| Type | No. | Description | |
|---|---|---|---|
Fuse FMX/JCase 30A | 1 | Cool Fan 1 | |
Fuse FMX/JCase 25A | 1 | Cool Fan 1 | |
Fuse FMX/JCase 40A | 2 | Cool Fan 2 | |
Fuse FMX/JCase 25A | 2 | Cool Fan 2 | |
Fuse FMX/JCase 25A | 3 | Brake Booster | |
Fuse FMX/JCase 30A | 4 | Power Windows - Right | |
Fuse FMX/JCase 40A | 5 | Memory Seat Module | |
Fuse FMX/JCase 30A | 6 | Power Seat -Left | |
Fuse FMX/JCase 60A | 7 | Instrument Panel Fuse Block 1 | |
Fuse FMX/JCase 30A | 8 | Rear Defogger | |
Fuse FMX/JCase 30A | 9 | Starter | |
Fuse FMX/JCase 40A | 10 | AIR Pump Motor | |
Fuse FMX/JCase 60A | 11 | Instrument Panel Fuse Block 2 | |
Fuse FMX/JCase 30A | 12 | Sunroof | |
Fuse FMX/JCase 40A | 13 | Antilock Brake System Pump | |
Fuse FMX/JCase 60A | 14 | Instrument Panel Fuse Block 3 | |
Fuse FMX/JCase 30A | 15 | Power Windows - Left | |
Fuse FMX/JCase 20A | 16 | Antilock Brake System Module | |
Fuse MINI 15A | 17 | Transmission Control Module Battery | |
Fuse MINI 15A | 18 | Trailer Parking Light | |
Fuse MINI 15A | 19 | AIR Pump Solenoid | |
Fuse MINI 10A | 20 | Engine Control Module Battery | |
Fuse MINI 10A | 21 | Canister Vent | |
Fuse MINI 10A | 22 | Trailer Left Side (If Equipped) | |
Fuse MINI 30A | 23 | Lift Gate Module | |
Fuse MINI 20A | 24 | Power Lumbar | |
Fuse MINI 10A | 25 | Trailer Right Side (If Equipped) | |
Fuse MINI 20A | 26 | Rear Accessory Power Outlet | |
Fuse MINI 7.5A | 27 | Memory Mirror Module | |
Fuse MINI 5A | 28 | Regulated Voltage Control Battery Sensor | |
Fuse MINI 25A | 29 | Front Wiper | |
Fuse MINI 20A | 30 | Rear Wiper | |
Fuse MINI 10A | 31 | Air Conditioning Compressor | |
Fuse MINI 15A | 32 | Rear Latch | |
Fuse MINI 10A | 33 | Heated Mirrors | |
Fuse MINI 15A | 34 | Horn | |
Fuse MINI 10A | 35 | Right High-Beam Headlamp | |
Fuse MINI 10A | 36 | Left High-Beam Headlamp | |
Fuse MINI 20A | 37 | Ignition Even Coil | |
Fuse MINI 20A | 38 | Ignition Odd Coil | |
Fuse MINI 20A | 39 | Windshield Washer | |
Fuse MINI 15A | 40 | Front Fog Lamps | |
Fuse MINI 15A | 41 | Post Catalytic Converter Oxygen Sensor | |
Fuse MINI 20A | 42 | Engine Control Module | |
Fuse MINI 15A | 43 | Pre-Catalytic Converter Oxygen Sensor | |
Fuse MINI 15A | 44 | Transmission Control Module | |
Fuse MINI 7.5A | 45 | Mirror | |
Fuse MINI 10A | 46 | Chassis Control Module Ignition | |
Fuse MINI 25A | 47 | Spare | |
Fuse MINI 15A | 48 | Rear Drive Module | |
Fuse MINI 15A | 49 | Lift Gate Module Logic | |
Fuse MINI 25A | 50 | Instrument Panel Fuse Block Ignition | |
Fuse MINI 25A | 51 | Heated Seat - Front | |
Fuse MINI 25A | 52 | Chassis Control Module | |
Fuse MINI 10A | 53 | Engine Control Module | |
Fuse MINI 5A | 54 | Rear Vision Camera | |
Fuse MIDI | 55 | Electric Power Steering | |
Relay | 56 | AIR Pump Solenoid | |
Relay | 57 | Brake Booster | |
Relay | 58 | Cooling Fan Low | |
Relay | 59 | Headlamp High Beam | |
Relay | 60 | Cooling Fan Control | |
Relay | 61 | Wiper On/Off Control | |
Relay | 62 | Air Conditioning Compressor | |
Relay | 63 | Rear Defogger | |
Relay | 64 | Wiper Speed | |
Relay | 65 | Fog Lamp | |
Relay | 66 | Engine Control | |
Relay | 67 | Starter | |
Relay | 68 | Run/Crank | |
Relay | 69 | Cooling Fan High | |
Relay | 70 | AIR Pump Motor |

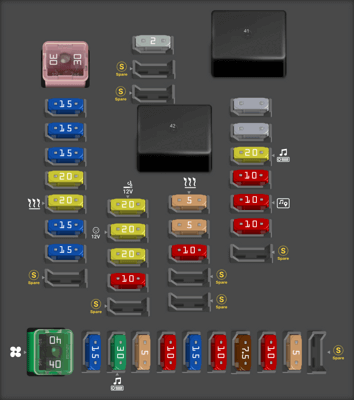

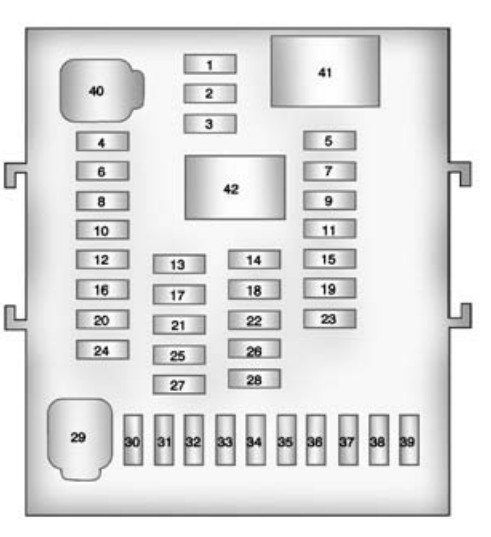

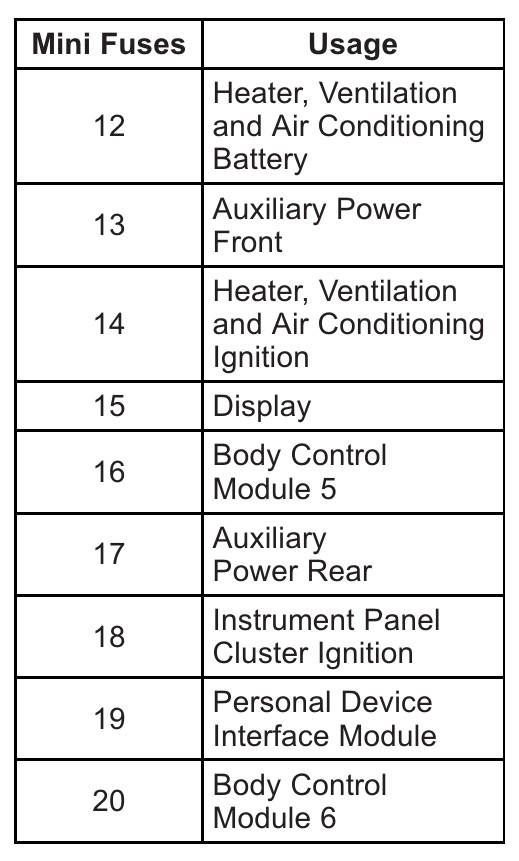

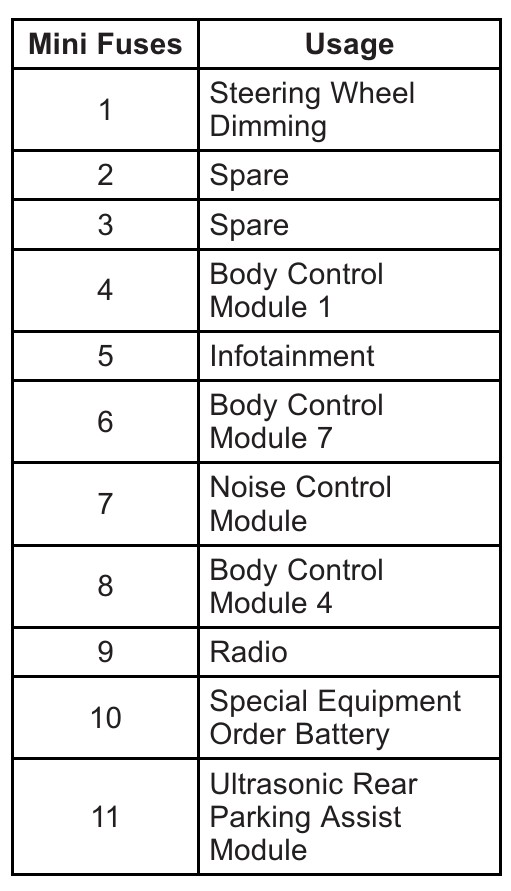

Instrument Panel Fuse Block
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 2A | 1 | Steering Wheel Dimming | |
Fuse MINI - | 2 | Spare | |
Fuse MINI - | 3 | Spare | |
Fuse MINI 15A | 4 | Body Control Module 1 | |
Fuse MINI | 5 | Infotainment | |
Fuse MINI 15A | 6 | Body Control Module 7 | |
Fuse MINI | 7 | Noise Control Module | |
Fuse MINI 15A | 8 | Body Control Module 4 | |
Fuse MINI 20A | 9 | Radio | |
Fuse MINI 20A | 10 | Special Equipment Order Battery | |
Fuse MINI 10A | 11 | Ultrasonic Rear Parking Assist Module | |
Fuse MINI 20A | 12 | Heater, Ventilation and Air Conditioning Battery | |
Fuse MINI 20A | 13 | Auxiliary Power Front | |
Fuse MINI 5A | 14 | Heater, Ventilation and Air Conditioning Ignition | |
Fuse MINI 10A | 15 | Display | |
Fuse MINI 15A | 16 | Body Control Module 5 | |
Fuse MINI 20A | 17 | Auxiliary Power Rear | |
Fuse MINI 5A | 18 | Instrument Panel Cluster Ignition | |
Fuse MINI 10A | 19 | Personal Device Interface Module | |
Fuse MINI 15A | 20 | Body Control Module 6 | |
Fuse MINI 20A | 21 | Special Equipment Order Retained Accessory Power | |
Fuse MINI 10A | 22 | Sensing and Diagnostic Module Ignition | |
Fuse MINI - | 23 | Spare | |
Fuse MINI - | 24 | Spare | |
Fuse MINI 10A | 25 | Transmission Gear Shift Position Indicator | |
Fuse MINI - | 26 | Spare | |
Fuse MINI - | 27 | Spare | |
Fuse MINI - | 28 | Spare | |
Fuse MINI 15A | 30 | Body Control Module 3 | |
Fuse MINI 30A | 31 | Amplifier | |
Fuse MINI 5A | 32 | Discrete Logic Ignition Switch | |
Fuse MINI 10A | 33 | Communications Integration Module | |
Fuse MINI 15A | 34 | Body Control Module 2 | |
Fuse MINI 10A | 35 | Sensing and Diagnostic Module Battery | |
Fuse MINI 7.5A | 36 | Data Link Connection | |
Fuse MINI 10A | 37 | Instrument Panel Cluster Battery | |
Fuse MINI 5A | 38 | Passenger Sensing System Module | |
Fuse MINI - | 39 | Spare | |
Fuse FMX/JCase 40A | 29 | Front Blower Motor | |
Fuse FMX/JCase 30A | 40 | Body Control Module 8 | |
Relay | 41 | Logistic Relay (If Equipped) | |
Relay | 42 | Retained Accessory Power Relay |
