2005 Chevrolet Blazer fuse box diagram
The 2005 Blazer generation S10-2 (also known as "GMT330") has 2 different fuse boxes:
Instrument Panel Fuse Block diagram
Engine Compartment Fuse Block diagram

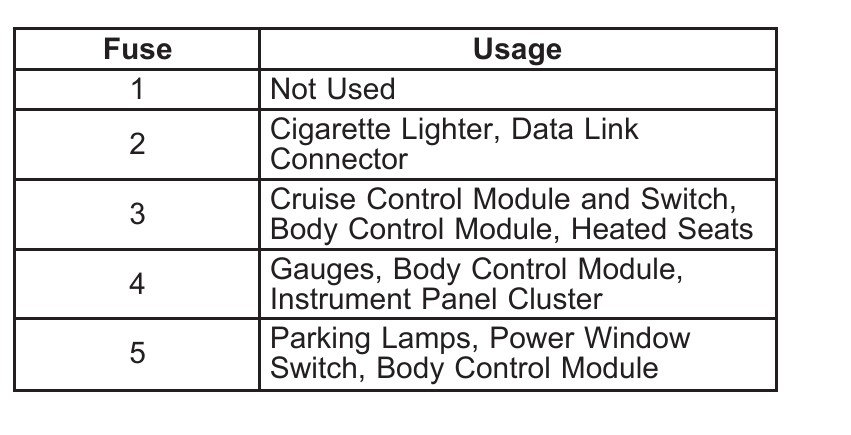

Instrument Panel Fuse Block
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse MINI | 2 | Cigarette Lighter, Data Link Connector | |||
Fuse MINI | 3 | Cruise Control Module and Switch, Body Control Module, Heated Seats | |||
Fuse MINI | 4 | Gauges, Body Control Module, Instrument Panel Cluster | |||
Fuse MINI | 5 | Parking Lamps, Power Window Switch, Body Control Module | |||
Fuse MINI | 6 | Steering Wheel Radio Controls | |||
Fuse MINI | 7 | Headlamps Switch, Body Control Module, Headlamp Relay | |||
Fuse MINI | 8 | Courtesy Lamps, Battery Run-Down Protection | |||
Fuse MINI | 9 | Heating, Ventilation, Air Cooling Control Head (Manual) | |||
Fuse MINI | 10 | Turn Signal | |||
Fuse MINI | 11 | Cluster, Engine Control Module | |||
Fuse MINI | 12 | Interior Lights | |||
Fuse MINI | 13 | Auxiliary Power | |||
Fuse MINI | 14 | Power Locks Motor | |||
Fuse MINI | 15 | 4WD Switch, Engine Controls (VCM, PCM, Transmission) | |||
Fuse MINI | 16 | Supplemental Inflatable Restraint | |||
Fuse MINI | 17 | Front Wiper | |||
Fuse MINI | 18 | Steering Wheel Radio Controls | |||
Fuse MINI | 19 | Radio, Battery | |||
Fuse MINI | 20 | Amplifier | |||
Fuse MINI | 21 | Heating, Ventilation, Air Cooling (Manual), Heating,Ventilation, Air Cooling (Automatic), Heating, Ventilation, Air Cooling Sensors (Automatic) | |||
Fuse MINI | 22 | Anti-Lock Brakes | |||
Fuse MINI | 23 | Rear Wiper | |||
Fuse MINI | 24 | Radio, Ignition | |||
Engine Compartment Fuse Block
| |||||
|---|---|---|---|---|---|
| Type | Description | ||||
Fuse MAXI | INT BAT Instrument Panel Fuse Block Feed | ||||
Fuse MAXI | ABS Anti-Lock Brake System | ||||
Fuse MAXI | IGN B Column Feed, Ignition 2, 3, 4 | ||||
Fuse MAXI | RAP Retained Accessory Power | ||||
Fuse MAXI | IGN A Starting and Charging Ignition 1 | ||||
Fuse MAXI | STUD #2 Accessory Feeds, Electric Brake | ||||
Fuse MINI | TRL LTRN Trailer Left Turn | ||||
Fuse MINI | LT TRN Left Turn Signal Rear | ||||
Fuse MINI | BTSI Automatic Transmission Shift Lock Control System | ||||
Fuse MINI | PRK LAMP Parking Lamps | ||||
Fuse MINI | HVAC Heating,Ventilation, Air Cooling System | ||||
Fuse MINI | HAZRD LP Hazard Lamps | ||||
Fuse MINI | TRL RTRN Trailer Right Turn | ||||
Fuse MINI | RT TRN Right Turn Signal Rear | ||||
Fuse MINI | TRLCHMSL Trailer Center High Mount Stop Light | ||||
Fuse MINI | VECHMSL Vehicle Center High-Mounted Stop Lamp | ||||
Fuse MINI | TRL B/U Trailer Back Up Lamps | ||||
Fuse MINI | ECM I Engine Control Module Injectors | ||||
Fuse MINI | VEH B/U Vehicle Back Up Lamps | ||||
Fuse MINI | ENG I Engine Sensors/Solenoids, MAF, CAM, PURGE, VENT | ||||
Fuse MINI | OXY SNSR Oxygen Sensor | ||||
Fuse MINI | REAR PRK Right Rear Parking Lamps | ||||
Fuse MINI | ECM B Engine Control Module, Fuel Pump Module, Oil Pressure | ||||
Fuse MINI | B/U LAMP Back Up Lamps | ||||
Fuse MINI | IGN E Engine | ||||
Fuse MINI | L RR PRK Left Rear Parking Lamps | ||||
Fuse MINI | RR DEFOG Rear Defogger | ||||
Fuse MINI | TRL PRK Trailer Park Lamps | ||||
Fuse MINI | LT HDLP Left Headlamp | ||||
Fuse MINI | HTDMIR Heated Mirror | ||||
Fuse MINI | RT HDLP Right Headlamp | ||||
Fuse MINI | MIR/LKS Mirrors, Door Locks | ||||
Fuse MINI | ATC Transfer Case (Four-Wheel Drive) | ||||
Fuse MINI | A/C Air Conditioning | ||||
Fuse MINI | FOG LAMP Fog Lamps | ||||
Fuse MINI | TBC Truck Body Computer | ||||
Fuse MINI | RT TURN Right Turn Signal Front | ||||
Fuse MINI | CRNK Clutch Switch, NSBU Switch | ||||
Fuse MINI | LT TURN Left Turn Signal Front | ||||
Fuse MINI | FT PRK Front Parking Lamps | ||||
Fuse MINI | IGN C Starter Solenoid, Fuel Pump, PRNDL | ||||
Fuse MINI | STOP LAMP Stop Lamps | ||||
Fuse MINI | HORN Horn | ||||
Fuse MINI | HTD/SEAT Heated Seat | ||||
Fuse MINI | RR W/W Rear Window Wiper | ||||
Relay | STRTR Starter | ||||
Relay | REAR DEFOG Rear Defogger | ||||
Relay | FUEL PUMP Fuel Pump | ||||
Relay | HEADLAMP PWR Headlamp Power | ||||
Relay | DRL Daytime Running Lamps | ||||
Relay | LG Liftglass | ||||
Relay | A/C_R Air Conditioning | ||||
Relay | FOG LAMP_R Fog Lamps | ||||
Relay | HORN_R Horn | ||||
Fuse puller | FUSE PULL Fuse Puller | ||||
