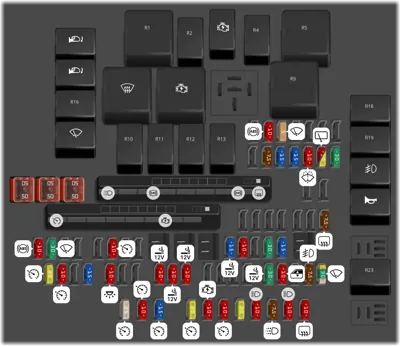

2021 Toyota Hiace 6th Gen Us fuse box diagram

Rear Fog Light

A/T Indicator [1GD-FTV, 7GR-FKS]. Cruise Control [1GD-FTV, 7GR-FKS]. Data Link Connector 3. ECT [1GD-FTV, 7GR-FKS]. Engine Control [1GD-FTV, 7GR-FKS]

Interior Light [Van, Commuter]. Theft Deterrent [w/o Entry and Start System]

Power Source [1GD-FTV, 7GR-FKS] [Van, Commuter]

ABS [Van, Commuter]. Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Daytime Running Light. Digital Inner Mirror. Door Lock Control [w/o Entry and Start System]. Front Fog Light. Front Wiper and Washer [Manual Type]. Headlight [Bulb Type]. Hill-Start Assist Control [Van, Commuter]. Illumination [Van, Commuter]. Interior Light [Van, Commuter]. Key Reminder. Light Reminder. Power Slide Door [Left Side, Right Side]. Power Window. Rear Fog Light. Rear Wiper and Washer [w/ Front Manual Wiper]. Seat Belt Warning [Van, Commuter]. Taillight. Theft Deterrent [w/o Entry and Start System]. Tire Pressure Warning System. VSC [Van, Commuter]. Wireless Door Lock Control [w/o Entry and Start System]

A/T Indicator [1GD-FTV, 7GR-FKS]. ABS [Van, Commuter]. Audio System [Display Audio Type [Built-in Type Amplifier], Except Display Audio Type, w/o Radio Receiver]. Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Blind Spot Monitor System. Combination Meter. Cruise Control [1GD-FTV, 7GR-FKS]. Daytime Running Light. Door Lock Control [w/o Entry and Start System]. Dynamic Radar Cruise Control. ECT [1GD-FTV, 7GR-FKS]. Engine Control [1GD-FTV, 7GR-FKS]. Front Auto Air Conditioning. Front Fog Light. Front Manual Air Conditioning. Headlight [Bulb Type]. Hill-Start Assist Control [Van, Commuter]. Illumination [Van, Commuter]. Key Reminder. Lane Departure Alert. Light Reminder. Navigation System (w/ Display Audio Built-in Type Amplifier). Power Slide Door [Left Side, Right Side]. Power Steering System. Pre-Collision System. Rear Fog Light. Road Sign Assist. Seat Belt Warning [Van, Commuter]. SRS [Van, Commuter]. Taillight. Theft Deterrent [w/o Entry and Start System]. Tire Pressure Warning System. TOYOTA Parking Assist-Sensor System. Turn Signal and Hazard Warning Light. VSC [Van, Commuter]. Wireless Door Lock Control [w/o Entry and Start System]

Audio System [Display Audio Type] [Built-in Type Amplifier]. Audio System [Except Display Audio Type, w/o Radio Receiver]. Navigation System (w/ Display Audio Built-in Type Amplifier). Parking Assist Monitor System

Power Window

Theft Deterrent [w/o Entry and Start System]

Power Source [1GD-FTV, 7GR-FKS] [Van, Commuter]

A/T Indicator [1GD-FTV, 7GR-FKS]. ABS [Van, Commuter]. Audio System [Display Audio Type, Built-in Type Amplifier, Except Display Audio Type, w/o Radio Receiver]. Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Back-Up Light. Combination Meter. Cruise Control [1GD-FTV, 7GR-FKS]. Daytime Running Light. ECT [1GD-FTV, 7GR-FKS]. Engine Control [1GD-FTV, 7GR-FKS]. Front Fog Light. Front Wiper and Washer [Manual Type]. Headlight [Bulb Type]. Hill-Start Assist Control [Van, Commuter]. Illumination [Van, Commuter]. Interior Light [Van, Commuter]. Key Reminder. Light Reminder. Multiplex Communication System (CAN) [Prior Aug. 2022]. Navigation System (w/ Display Audio Built-in Type Amplifier). Parking Assist Monitor System. Power Outlet (12V). Power Outlet [USB Jack] [Van, Commuter]. Rear Fog Light. Rear Wiper and Washer [w/ Front Manual Wiper]. Remote Control Mirror [Manual Folding Mirror]. Taillight. Telematics System. Tire Pressure Warning System. VSC [Van, Commuter]

Front Auto Air Conditioning. Front Manual Air Conditioning. Mirror Heater. Power Heater. PTC Heater. Rear Heater [w/ Rear Switch, w/o Rear Switch]. Rear Manual Cooler [w/ Rear Switch, w/o Rear Switch]. Rear Window Defogger. Windshield Deicer

A/T Indicator [1GD-FTV]. A/T Indicator [7GR-FKS]. ABS [Van, Commuter]. Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Back-Up Light. Cruise Control [1GD-FTV]. Cruise Control [7GR-FKS]. Daytime Running Light. ECT [1GD-FTV]. ECT [7GR-FKS]. Engine Control [1GD-FTV]. Engine Control [7GR-FKS]. Front Fog Light. Front Wiper and Washer [Manual Type]. Headlight [Bulb Type]. Hill-Start Assist Control [Van, Commuter]. Illumination [Van, Commuter] (LHD). Illumination [Van, Commuter] (RHD). Key Reminder. Light Reminder. Rear Fog Light. Rear Wiper and Washer [w/ Front Manual Wiper]. Starting [1GD-FTV] [w/ Stop and Start System]. Stop and Start System. Taillight. Turn Signal and Hazard Warning Light. VSC [Van, Commuter]

SRS [Van, Commuter]. Telematics System

A/T Indicator [1GD-FTV]. A/T Indicator [7GR-FKS]. ABS [Van, Commuter]. Audio System [Display Audio Type] [Built-in Type Amplifier]. Audio System [Except Display Audio Type]. Audio System [w/o Radio Receiver]. Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Blind Spot Monitor System. Combination Meter. Cruise Control [1GD-FTV]. Cruise Control [7GR-FKS]. Daytime Running Light. Door Lock Control [w/o Entry and Start System] (LHD). Door Lock Control [w/o Entry and Start System] (RHD). Dynamic Radar Cruise Control. ECT [1GD-FTV]. ECT [7GR-FKS]. Engine Control [1GD-FTV]. Engine Control [7GR-FKS]. Front Auto Air Conditioning. Front Fog Light. Front Manual Air Conditioning. Headlight [Bulb Type]. Hill-Start Assist Control [Van, Commuter]. Illumination [Van, Commuter] (LHD). Illumination [Van, Commuter] (RHD). Key Reminder. Lane Departure Alert. Light Reminder. Navigation System (w/ Display Audio Built-in Type Amplifier). Power Slide Door [Left Side]. Power Slide Door [Right Side]. Power Steering System. Pre-Collision System. Rear Fog Light. Road Sign Assist. Seat Belt Warning [Van, Commuter] (LHD). Seat Belt Warning [Van, Commuter] (RHD). SRS [Van, Commuter]. Starting [1GD-FTV] [w/ Stop and Start System]. Stop and Start System. Taillight. Theft Deterrent [w/o Entry and Start System] (LHD). Theft Deterrent [w/o Entry and Start System] (RHD). Tire Pressure Warning System. TOYOTA Parking Assist-Sensor System. Turn Signal and Hazard Warning Light. VSC [Van, Commuter]. Wireless Door Lock Control [w/o Entry and Start System] (LHD). Wireless Door Lock Control [w/o Entry and Start System] (RHD)

Combination Meter. Engine Immobiliser System [w/o Entry and Start System]. Multiplex Communication System (CAN) [Prior Aug. 2022]. Telematics System

ABS [Van, Commuter]. Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Combination Meter. Daytime Running Light. Front Fog Light. Headlight [Bulb Type]. Hill-Start Assist Control [Van, Commuter]. Illumination [Van, Commuter]. Key Reminder. Light Reminder. Multiplex Communication System (CAN) [Prior Aug. 2022]. Rear Fog Light. Rear Heater [w/ Rear Switch]. Rear Manual Cooler [w/ Rear Switch]. Taillight. Tire Pressure Warning System. Turn Signal and Hazard Warning Light. Urea SCR [Separate Type Urea Pump]. VSC [Van, Commuter]

Engine Immobiliser System [w/o Entry and Start System]

Door Lock Control [w/o Entry and Start System]. Wireless Door Lock Control [w/o Entry and Start System]

Horn. Theft Deterrent [w/o Entry and Start System]

Starting [1GD-FTV, 7GR-FKS]. Stop and Start System

Combination Meter. Dynamic Radar Cruise Control. Lane Departure Alert. Pre-Collision System. Road Sign Assist. Turn Signal and Hazard Warning Light

Illumination [Van, Commuter]

Daytime Running Light. Front Fog Light. Rear Fog Light. Taillight

Power Window

Shift Lock [w/o Entry and Start System]

Blind Spot Monitor System. Combination Meter. Door Lock Control [w/o Entry and Start System] [Left hand driving]. Front Wiper and Washer [Manual Type]. Multiplex Communication System (CAN) [Prior Aug. 2022]. Rear Wiper and Washer [w/ Front Manual Wiper]. Seat Belt Warning [Van, Commuter] [Right hand driving]. Theft Deterrent [w/o Entry and Start System] [Left hand driving]. Tire Pressure Warning System. TOYOTA Parking Assist-Sensor System. Wireless Door Lock Control [w/o Entry and Start System] [Left hand driving]

Shift Lock [w/o Entry and Start System]

ABS [Van, Commuter]. Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Daytime Running Light. Door Lock Control [w/o Entry and Start System]. Front Auto Air Conditioning. Front Fog Light. Front Manual Air Conditioning. Front Wiper and Washer [Manual Type]. Headlight [Bulb Type]. Hill-Start Assist Control [Van, Commuter]. Illumination [Van, Commuter]. Interior Light [Van, Commuter]. Key Reminder. Light Reminder. Power Heater. Power Window. PTC Heater. Rear Fog Light. Rear Heater [w/ Rear Switch]. Rear Manual Cooler [w/ Rear Switch]. Rear Wiper and Washer [w/ Front Manual Wiper]. Seat Belt Warning [Van, Commuter]. Taillight. Theft Deterrent [w/o Entry and Start System]. Tire Pressure Warning System. VSC [Van, Commuter]. Windshield Deicer. Wireless Door Lock Control [w/o Entry and Start System]

Back-Up Light. Combination Meter

Audio System [Display Audio Type] [Built-in Type Amplifier]. Automatic Glare-Resistant EC Mirror. Blind Spot Monitor System. Digital Inner Mirror. Navigation System (w/ Display Audio Built-in Type Amplifier). Parking Assist [Rear View Monitor]. Parking Assist Monitor System. Power Steering System. TOYOTA Parking Assist-Sensor System

Blind Spot Monitor System. Dynamic Radar Cruise Control. Lane Departure Alert. Pre-Collision System. Road Sign Assist. TOYOTA Parking Assist-Sensor System

Door Closer [Back Door]

Power Slide Door [Left Side]

Power Slide Door [Right Side]

A/T Indicator, ABS [Van, Commuter]. Cruise Control, ECT, Engine Control Hill-Start Assist Control [Van, Commuter], Stop Light [Bulb Type], Urea SCR [Separate Type Urea Pump], VSC [Van, Commuter]

Front Wiper and Washer [Manual Type]. Rear Wiper and Washer [w/ Front Manual Wiper]

A/T Indicator, Cruise Control, ECT, Engine Control, Starting [w/ Stop and Start System], Stop and Start System, Urea SCR [Separate Type Urea Pump]

A/T Indicator, Cruise Control, ECT, Engine Control

Rear Manual Cooler [w/o Rear Switch]

Rear Manual Cooler

Rear Manual Cooler

WASHER [Prior Jun. 2020]

WASHER [Jun. 2020 or later]

WIPER RR [Prior Aug. 2022]

WIPER RR [Aug. 2022 or later]

Power Source

Urea SCR [Separate Type Urea Pump]

Urea SCR [Separate Type Urea Pump]

Urea SCR [Separate Type Urea Pump]

Mirror Heater. Rear Window Defogger

ABS [Van, Commuter], Hill-Start Assist Control [Van, Commuter], Shift Lock [w/o Entry and Start System], Stop Light [Bulb Type], VSC [Van, Commuter]

Front Wiper and Washer [Manual Type], Rear Wiper and Washer [w/ Front Manual Wiper]

Charging

Power Outlet (12V)

Front Auto Air Conditioning, Front Manual Air Conditioning, Power Heater, PTC Heater, Rear Heater [w/ Rear Switch], Rear Manual Cooler [w/ Rear Switch], Windshield Deicer

Front Auto Air Conditioning, Front Manual Air Conditioning

Rear Heater [w/ Rear Switch, w/o Rear Switch]

A/T Indicator, Cruise Control, ECT, Engine Control

A/T Indicator, Cruise Control, ECT, Engine Control

Telematics System

Windshield Deicer

Interior Light [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Door Lock Control [w/o Entry and Start System]. Front Auto Air Conditioning. Front Manual Air Conditioning. Power Heater. Power Window. PTC Heater. Windshield Deicer. Wireless Door Lock Control [w/o Entry and Start System]

Front Fog Light

WIPER NO.2 [Prior Jun. 2020]

WIPER NO.2 [Jun. 2020 or later Prior Aug. 2022]

WIPER NO.2 [Aug. 2022 or later]

Mirror Heater. Rear Window Defogger

Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Headlight [Bulb Type]. Headlight Beam Level Control [Manual]

Daytime Running Light. Taillight

Automatic Hibeam System [Bulb Type Headlight]. Automatic Light Control [Bulb Type Headlight]. Headlight [Bulb Type]. Headlight Beam Level Control [Manual]

Power Source

Urea SCR [Separate Type Urea Pump]

Urea SCR [Separate Type Urea Pump]

A/T Indicator, Cruise Control, ECT, Engine Control, Urea SCR [Separate Type Urea Pump]

Power Heater. PTC Heater

Power Heater. PTC Heater

Power Heater. PTC Heater

Daytime Running Light. Front Fog Light. Illumination [Van, Commuter]. Rear Fog Light. Taillight

ABS [Van, Commuter]. Hill-Start Assist Control [Van, Commuter]. VSC [Van, Commuter]

Rear Manual Cooler

Front Auto Air Conditioning. Front Manual Air Conditioning

ABS [Van, Commuter]. Hill-Start Assist Control [Van, Commuter]. VSC [Van, Commuter]

Mirror Heater. Rear Window Defogger

Urea SCR [Separate Type Urea Pump]

A/T Indicator, Cruise Control, ECT, Engine Control

Starting [w/ Stop and Start System], Stop and Start System

Starting [w/ Stop and Start System], Stop and Start System

Starting, Stop and Start System

Starting [w/ Stop and Start System], Stop and Start System

Power Source

CLR RR

STOP LP

STARTER NO.2

IG1 NO.4

FR HTR

DEF

STARTER

EFI MAIN

S-HTR

FR MGC

RR MGC

CDS FAN

HTR RR NO.1

DIM LH / MIRROR NO.1

DIM RH / MIRROR NO.2

ACC NO.2

WIP MAIN

RR ROOM LP SW / SHORT PIN [Van, commuter]. H-LP CLN [wagon]

SECURITY HORN

FR FOG

HORN

GLOW

DCU MAIN

A/T Indicator, ABS [Van, Commuter], Cruise Control, ECT, Engine Control, Hill-Start Assist Control [Van, Commuter], Stop Light [Bulb Type], Urea SCR [Separate Type Urea Pump], VSC [Van, Commuter]

Front Wiper and Washer [Manual Type], Rear Wiper and Washer [w/ Front Manual Wiper]

Rear Manual Cooler [w/o Rear Switch]

Rear Manual Cooler

Rear Manual Cooler

WASHER

WIPER RR [Prior Aug. 2022]

WIPER RR [Aug. 2022 or later]

Power Source [Van, Commuter]

Mirror Heater, Rear Window Defogger

ABS [Van, Commuter], Hill-Start Assist Control [Van, Commuter], Shift Lock [w/o Entry and Start System], Stop Light [Bulb Type], VSC [Van, Commuter]

Front Wiper and Washer [Manual Type], Rear Wiper and Washer [w/ Front Manual Wiper]

A/T Indicator, Cruise Control, ECT, Engine Control

Power Outlet (12V)

Front Auto Air Conditioning, Front Manual Air Conditioning, Power Heater, PTC Heater, Rear Heater [w/ Rear Switch], Rear Manual Cooler [w/ Rear Switch], Windshield Deicer

Front Auto Air Conditioning, Front Manual Air Conditioning

Rear Heater [w/ Rear Switch, w/o Rear Switch]

A/T Indicator, Cruise Control, ECT, Engine Control

A/T Indicator, Cruise Control, ECT, Engine Control

Windshield Deicer

Interior Light [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Power Outlet [USB Jack] [Van, Commuter]

Door Lock Control [w/o Entry and Start System], Front Auto Air Conditioning, Front Manual Air Conditioning, Power Heater, Power Window, PTC Heater, Windshield Deicer, Wireless Door Lock Control [w/o Entry and Start System]

Front Fog Light

WIPER NO.2 [Prior Jun. 2020]

WIPER NO.2 [Aug. 2022 or later]

WIPER NO.2 [Jun. 2020 or later Prior Aug. 2022]

Mirror Heater, Rear Window Defogger

Automatic Hibeam System [Bulb Type Headlight], Automatic Light Control [Bulb Type Headlight], Headlight [Bulb Type], Headlight Beam Level Control [Manual]

Daytime Running Light, Taillight

Automatic Hibeam System [Bulb Type Headlight], Automatic Light Control [Bulb Type Headlight], Headlight [Bulb Type], Headlight Beam Level Control [Manual]

Power Source [Van, Commuter]

A/T Indicator, Cruise Control, ECT, Engine Control

Ignition

A/T Indicator, Cruise Control, ECT, Engine Control

A/T Indicator, Cruise Control, ECT, Engine Control

A/T Indicator, Cruise Control, ECT, Engine Control, Urea SCR [Separate Type Urea Pump]

A/T Indicator, Cruise Control, ECT, Engine Control

Power Heater, PTC Heater

Power Heater, PTC Heater

Power Heater, PTC Heater

Daytime Running Light, Front Fog Light, Illumination [Van, Commuter], Rear Fog Light, Taillight

ABS [Van, Commuter], Hill-Start Assist Control [Van, Commuter], VSC [Van, Commuter]

Rear Manual Cooler

Front Auto Air Conditioning, Front Manual Air Conditioning

ABS [Van, Commuter], Hill-Start Assist Control [Van, Commuter], VSC [Van, Commuter]

Mirror Heater, Rear Window Defogger

A/T Indicator, Cruise Control, ECT, Engine Control

Starting, Stop and Start System

Power Source [Van, Commuter]

CLR RR

STOP LP

STARTER NO.2

IG1 NO.4

FR HTR

DEF

STARTER

S-HTR

FR MGC

RR MGC

CDS FAN

HTR RR NO.1

DIM LH / MIRROR NO.1

DIM RH / MIRROR NO.2

ACC NO.2

WIP MAIN

RR ROOM LP SW / SHORT PIN [Van, commuter], H-LP CLN [wagon]

SECURITY HORN

FR FOG

HORN

AI VALVE
