2022 Lincoln Corsair fuse box diagram
The 2022 Corsair 1st generation (also known as "CX483") has 2 different fuse boxes:
Engine Compartment Fuse Box diagram
Passenger Compartment Fuse Box diagram

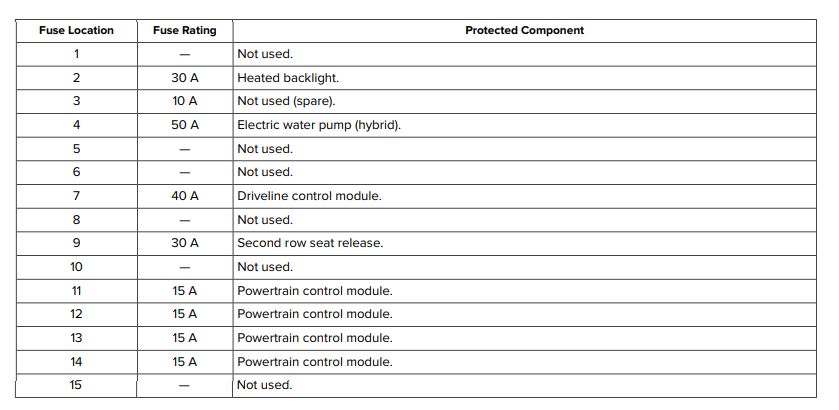

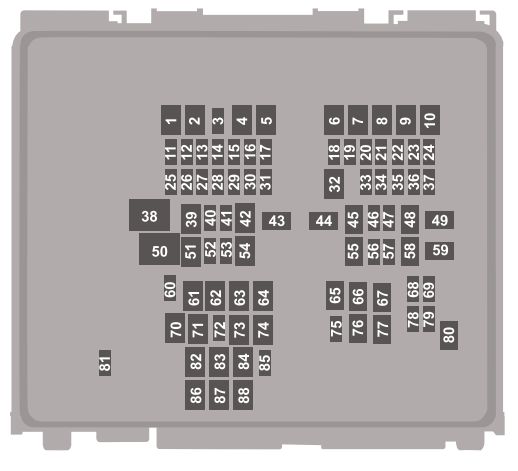

Engine Compartment Fuse Box
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse FMM/MCase 30A | 2 | Heated backlight | |||
Fuse MICRO2 10A | 3 | Spare | |||
Fuse FMM/MCase 50A | 4 | Electric water pump (hybrid) | |||
Fuse FMM/MCase 40A | 7 | Driveline control module | |||
Fuse FMM/MCase 30A | 9 | Second row seat release | |||
Fuse MICRO2 15A | 11 | Powertrain control module | |||
Fuse MICRO2 15A | 12 | Powertrain control module | |||
Fuse MICRO2 15A | 13 | Powertrain control module | |||
Fuse MICRO2 15A | 14 | Powertrain control module | |||
Fuse MICRO2 15A | 17 | Heated wiper park | |||
Fuse MICRO2 10A | 18 | Air conditioning clutch | |||
Fuse MICRO2 5A | 20 | DC/DC converter (hybrid) | |||
Fuse MICRO2 10A | 21 | Battery charge control module (hybrid) | |||
Fuse MICRO2 5A | 22 | Spare | |||
Fuse MICRO2 5A | 23 | Charge port light ring (hybrid) | |||
Fuse MICRO2 5A | 24 | Battery electronic control module (hybrid) | |||
Fuse MICRO2 25A | 25 | Left-hand enhanced exterior lighting module | |||
Fuse MICRO2 25A | 26 | Right-hand enhanced exterior lighting module | |||
Fuse MICRO2 5A | 27 | Powertrain control module (hybrid) | |||
Fuse MICRO2 10A | 28 | Anti-lock brake system module | |||
Fuse MICRO2 10A | 29 | Powertrain control module | |||
Fuse MICRO2 10A | 30 | Electronic stability control, Transmission oil pump | |||
Fuse MICRO2 5A | 31 | Electronic power assist steering | |||
Fuse FMM/MCase 30A | 32 | Body control module | |||
Fuse MICRO2 10A | 33 | Front parking aid camera, Rear view camera, Blind spot information system, Cruise control module, Image processing module B | |||
Fuse MICRO2 10A | 34 | Headlamp leveling | |||
Fuse MICRO2 15A | 35 | Heated steering wheel | |||
Fuse MICRO2 10A | 36 | Powertrain control module (hybrid) | |||
Fuse MICRO2 20A | 37 | Horn | |||
Fuse FMX/JCase 40A | 38 | Blower motor | |||
Fuse MICRO2 10A | 40 | Brake on-off switch | |||
Fuse MICRO2 20A | 41 | Amplifier | |||
Fuse FMM/MCase 30A | 42 | Driver power seat | |||
Fuse FMM/MCase 40A | 43 | Anti-lock brake control valves | |||
Fuse FMM/MCase 40A | 44 | Spare | |||
Fuse FMM/MCase 30A | 45 | Passenger power seat | |||
Fuse MICRO2 20A | 46 | Spare | |||
Fuse MICRO2 20A | 47 | Heated seats | |||
Fuse FMM/MCase 30A | 48 | Power liftgate | |||
Fuse FMM/MCase 60A | 49 | Anti-lock brake control pump | |||
Fuse FMX/JCase 60A | 50 | Cooling fan | |||
Fuse FMM/MCase 30A | 51 | Moonroof | |||
Fuse MICRO2 5A | 52 | USB charge port-rear console | |||
Fuse MICRO2 5A | 53 | USB charge port-rear console | |||
Fuse FMM/MCase 20A | 54 | Rear heated seat module | |||
Fuse FMM/MCase 30A | 55 | Starter motor | |||
Fuse MICRO2 20A | 56 | Amplifier | |||
Fuse MICRO2 10A | 57 | Data link connector | |||
Fuse FMM/MCase 30A | 58 | Climate controlled seat module | |||
Fuse FMM/MCase 40A | 59 | Body control module | |||
Fuse MICRO2 15A | 69 | Port fuel injectors | |||
Fuse FMM/MCase 20A | 70 | Rear cargo power point | |||
Fuse FMM/MCase 20A | 71 | Rear console power point | |||
Fuse MICRO2 20A | 72 | Rear window wiper | |||
Fuse FMM/MCase 30A | 74 | Windshield wiper motor | |||
Fuse MICRO2 20A | 75 | Spare | |||
Fuse MICRO2 15A | 78 | Multi-contour seats | |||
Fuse MICRO2 10A | 79 | Spare | |||
Fuse FMM/MCase 20A | 80 | Fuel pump | |||
Fuse MICRO2 10A | 81 | Rear window washer pump | |||
Fuse FMM/MCase 40A | 82 | Spare | |||
Fuse FMM/MCase 40A | 84 | Auxiliary power distribution box (hybrid) | |||
Fuse MICRO2 5A | 85 | Rain sensor | |||

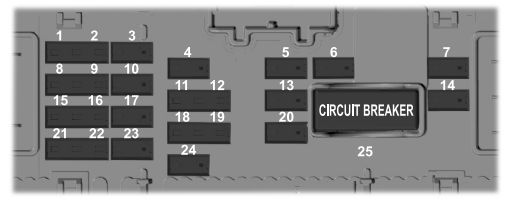

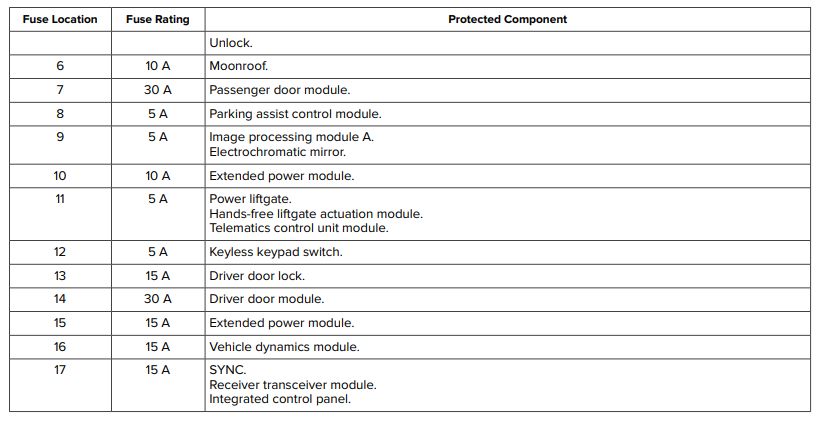

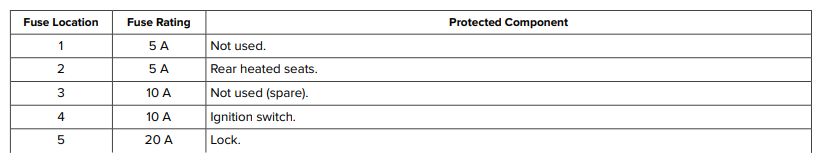

Passenger Compartment Fuse Box
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse MICRO3 5A | 1 | Spare | |||
Fuse MICRO3 5A | 2 | Rear heated seats | |||
Fuse MINI 10A | 3 | Spare | |||
Fuse MINI 10A | 4 | Ignition switch | |||
Fuse MINI 20A | 5 | Lock, Unlock | |||
Fuse MINI 10A | 6 | Moonroof | |||
Fuse MINI 30A | 7 | Passenger door module | |||
Fuse MICRO3 5A | 8 | Parking assist control module | |||
Fuse MICRO3 5A | 9 | Image processing module A, Electrochromatic mirror | |||
Fuse MINI 10A | 10 | Extended power module | |||
Fuse MICRO3 5A | 11 | Power liftgate, Hands-free liftgate actuation module, Telematics control unit module | |||
Fuse MICRO3 5A | 12 | Keyless keypad switch | |||
Fuse MINI 15A | 13 | Driver door lock | |||
Fuse MINI 30A | 14 | Driver door module | |||
Fuse MICRO3 15A | 15 | Extended power module | |||
Fuse MICRO3 15A | 16 | Vehicle dynamics module | |||
Fuse MINI 15A | 17 | SYNC, Receiver transceiver module, Integrated control panel | |||
Fuse MICRO3 7.5A | 18 | Driver power seat switch, Passenger power seat switch, Wireless accessory charging module, Selectable drive mode switch. | |||
Fuse MICRO3 7.5A | 19 | Headlamp switch pack, Telematics control unit module, Bluetooth low energy module | |||
Fuse MINI 10A | 20 | Spare | |||
Fuse MICRO3 7.5A | 21 | Climate control, E-shifter module | |||
Fuse MICRO3 7.5A | 22 | Instrument cluster, Gateway module, Steering column control module | |||
Fuse MINI 20A | 23 | Audio unit | |||
Fuse MINI 20A | 24 | Head up display | |||
Circuit breaker MAXI | 25 | Spare | |||
