2006 Honda FR-V fuse box diagram
The 2006 FR-V 1st generation (also known as "BE1", "BE2", "BE3", "BE4", "BE8") has 4 different fuse boxes:
![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Petrol]](https://images.startmycar.com/legos/fusebox-thumbnails/fusebox-honda-fr-v-2006-genid-g1-0.webp)
Under-bonnet Fuse Box [Petrol] diagram
![2006 Honda FR-V fuse box diagram Interior Fue Box [Petrol]](https://images.startmycar.com/legos/fusebox-thumbnails/fusebox-honda-fr-v-2006-genid-g1-1.webp)
Interior Fue Box [Petrol] diagram
![2006 Honda FR-V fuse box diagram Interior Fuse Box [Diesel]](https://images.startmycar.com/legos/fusebox-thumbnails/fusebox-honda-fr-v-2006-genid-g1-2.webp)
Interior Fuse Box [Diesel] diagram
![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Diesel]](https://images.startmycar.com/legos/fusebox-thumbnails/fusebox-honda-fr-v-2006-genid-g1-3.webp)

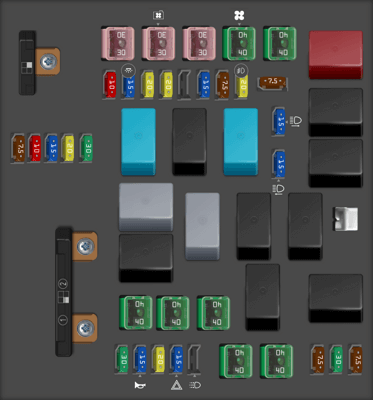

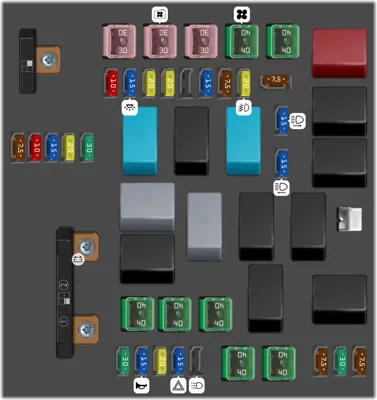

Under-bonnet Fuse Box [Diesel] diagram

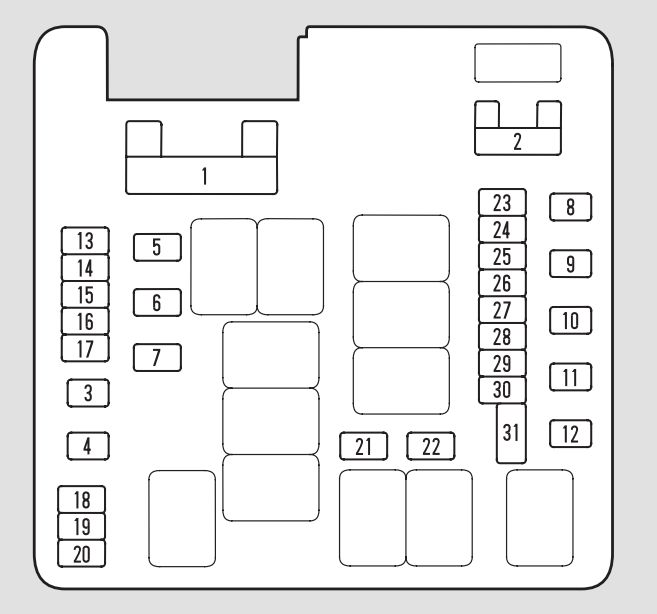

Under-bonnet Fuse Box [Petrol]
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Multi fuse block MUSB | 1-2 | Battery | |||
Multi fuse block MUSB | 2 | Ignition Switch,Option | |||
Fuse FMX/JCase 40A | 3 | ABS P, VSA P | |||
Fuse FMX/JCase 40A | 4 | ABS V, VSA V | |||
Fuse FMX/JCase 40A | 5 | Headlight Washer | |||
Fuse FMX/JCase 30A | 8 | Rear Demister | |||
Fuse FMX/JCase 20A | 9 | Radiator Fan | |||
Fuse FMX/JCase 20A | 10 | Condenser Fan | |||
Fuse FMX/JCase 40A | 11 | Heater Motor | |||
Fuse MINI 15A | 13 | Ignition Coil | |||
Fuse MINI 15A | 14 | Horn, Stop | |||
Fuse MINI 15A | 15 | LAF Sensor | |||
Fuse MINI 15A | 16 | Hazard | |||
Fuse MINI | 17 | Daytime Running Light | |||
Fuse MINI 7.5A | 19 | Oil Level Sensor | |||
Fuse MINI 7.5A | 20 | Stop Switch | |||
Fuse MINI 15A | 21 | Left Headlight | |||
Fuse MINI 15A | 22 | Right Headlight | |||
Fuse MINI 10A | 23 | Back Up | |||
Fuse MINI 15A | 24 | Interior Light | |||
Fuse MINI 20A | 26 | Super Lock | |||
Fuse MINI | 27 | Sunroof | |||
Fuse MINI 15A | 28 | Front Demister | |||
Fuse MINI 7.5A | 29 | MG Clutch | |||
Fuse MINI 20A | 30 | Front Fog Lights | |||
Fuse MINI 7.5A | 31 | FR Wiper AS | |||

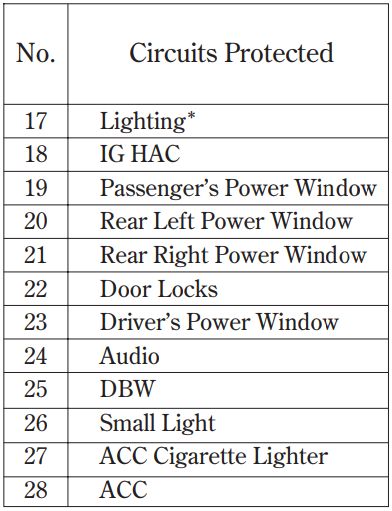

Interior Fue Box [Petrol]
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse MINI 7.5A | 1 | Ignition Coil | |||
Fuse MINI 10A | 2 | SRS | |||
Fuse MINI 7.5A | 3 | ABS | |||
Fuse MINI 30A | 5 | Front Wipers | |||
Fuse MINI 7.5A | 6 | Back Light | |||
Fuse MINI 15A | 7 | Fuel Pump | |||
Fuse MINI 7.5A | 8 | ACG (IG) | |||
Fuse MINI 7.5A | 9 | Meter | |||
Fuse MINI 20A | 10 | Heated Seat | |||
Fuse MINI 7.5A | 11 | Rear Fog Light | |||
Fuse MINI 15A | 12 | IGP | |||
Fuse MINI 15A | 14 | Rear Wiper | |||
Fuse MINI 7.5A | 15 | SRS | |||
Fuse MINI 7.5A | 16 | Mirror | |||
Fuse MINI 10A | 17 | Lighting | |||
Fuse MINI 7.5A | 18 | IG HAC | |||
Fuse MINI 20A | 19 | Passenger's Power Window | |||
Fuse MINI 20A | 20 | Rear Left Power Window | |||
Fuse MINI 20A | 21 | Rear Right Power Window | |||
Fuse MINI 20A | 22 | Door Locks | |||
Fuse MINI 20A | 23 | Driver's Power Window | |||
Fuse MINI 15A | 24 | Audio | |||
Fuse MINI 7.5A | 25 | DBW | |||
Fuse MINI 10A | 26 | Small Light | |||
Fuse MINI 15A | 27 | ACC Cigarette Lighter | |||
Fuse MINI 7.5A | 28 | ACC | |||

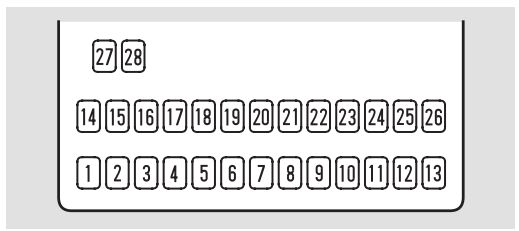

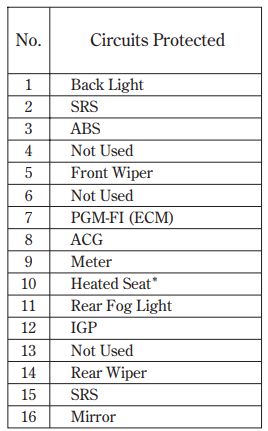

Interior Fuse Box [Diesel]
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Fuse MINI 7.5A | 1 | (Back Light) Backup lights | |||
Fuse MINI 10A | 2 | (SRS) Airbag | |||
Fuse MINI 7.5A | 3 | (ABS) Anti-lock braking system | |||
Fuse MINI 30A | 5 | (Front Wiper) Front wipers | |||
Fuse MINI 15A | 7 | PGM-FI (ECM) | |||
Fuse MINI 7.5A | 8 | (ACG) Battery and charging system | |||
Fuse MINI 7.5A | 9 | (Meter) Instrument cluster | |||
Fuse MINI 20A | 10 | (Heated Seat) Seat heater | |||
Fuse MINI 7.5A | 11 | (Rear Fog Light) Rear fog lights | |||
Fuse MINI 15A | 12 | (IGP) Ignition | |||
Fuse MINI 15A | 14 | (Rear Wiper) Rear wiper | |||
Fuse MINI 7.5A | 15 | (SRS) Airbag | |||
Fuse MINI 7.5A | 16 | (Mirror) Power control mirror | |||
Fuse MINI 10A | 17 | (Lighting) Illumination | |||
Fuse MINI 7.5A | 18 | IG HAC | |||
Fuse MINI 20A | 19 | Passenger's Power Window | |||
Fuse MINI 20A | 20 | Left Rear Power Window | |||
Fuse MINI 20A | 21 | Right Rear Power Window | |||
Fuse MINI 20A | 22 | (Door Locks) Power door lock system | |||
Fuse MINI 20A | 23 | Driver's Power Window | |||
Fuse MINI 15A | 24 | (Audio) Audio system | |||
Fuse MINI 7.5A | 25 | (Heated Mirror) Mirror heater | |||
Fuse MINI 10A | 26 | (Small Light) Small lights | |||
Fuse MINI 15A | 27 | ACC Cigarette Lighter | |||
Fuse MINI 7.5A | 28 | (ACC) Protects several accesory circuits | |||

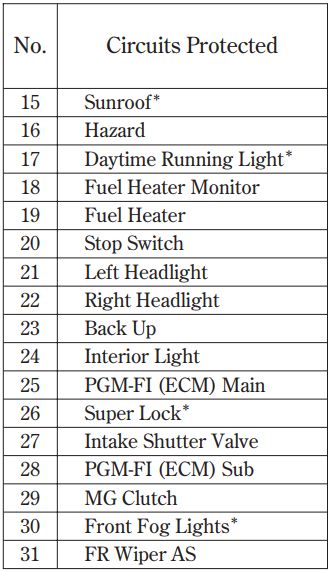

Under-bonnet Fuse Box [Diesel]
| |||||
|---|---|---|---|---|---|
| Type | No. | Description | |||
Multi fuse block MUSB | 1-2 | Glow Plug | |||
Multi fuse block MUSB | 1-1 | Battery | |||
Multi fuse block MUSB | 2 | Ignition Switch, Option | |||
Fuse FMX/JCase 40A | 3 | ABS P, VSA P | |||
Fuse FMX/JCase 40A | 4 | ABS V, VSA V | |||
Fuse FMX/JCase 40A | 5 | PTC HTR1 | |||
Fuse FMX/JCase 40A | 6 | PTC HTR2 | |||
Fuse FMX/JCase 40A | 7 | PTC HTR3 | |||
Fuse FMX/JCase 30A | 8 | Rear Demister | |||
Fuse FMX/JCase 30A | 9 | Radiator Fan | |||
Fuse FMX/JCase 30A | 10 | Condenser Fan | |||
Fuse FMX/JCase 40A | 11 | Heater Motor | |||
Fuse FMX/JCase 40A | 12 | Fuel Heater | |||
Fuse MINI 30A | 13 | Headlight Washer | |||
Fuse MINI 15A | 14 | Horn, Stop | |||
Fuse MINI 20A | 15 | Sunroof | |||
Fuse MINI 15A | 16 | Hazard | |||
Fuse MINI | 17 | Daytime Running Light* | |||
Fuse MINI 7.5A | 18 | Fuel Heater Monitor | |||
Fuse MINI 30A | 19 | Fuel Heater | |||
Fuse MINI 7.5A | 20 | Stop Switch | |||
Fuse MINI 15A | 21 | Left Headlight | |||
Fuse MINI 15A | 22 | Right Headlight | |||
Fuse MINI 10A | 23 | Back Up | |||
Fuse MINI 15A | 24 | Interior Light | |||
Fuse MINI 20A | 25 | PGM-FI (ECM) Main | |||
Fuse MINI 20A | 26 | Super Lock | |||
Fuse MINI | 27 | Intake Shutter Valve | |||
Fuse MINI 15A | 28 | PGM-FI (ECM) Sub | |||
Fuse MINI 7.5A | 29 | MG Clutch | |||
Fuse MINI 20A | 30 | Front Fog Lights | |||
Fuse MINI 7.5A | 31 | FR Wiper AS | |||
Honda FR-V fuse box diagrams change across years, pick the right year of your vehicle:
Doesn't match your car?Ask for your diagram
Found a mistake? Let us know!
Source: Honda FR-V 2006 Owner's Manual![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Petrol]](https://images.rewise.ai/originals/legos/fusebox-diagrams/4d8c0dbb_Captura de pantalla 2024-10-04 173536.jpg)
![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Petrol]](https://images.rewise.ai/originals/legos/fusebox-tables/17deccf9_Captura de pantalla 2024-10-04 173602.jpg)
![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Petrol]](https://images.rewise.ai/originals/legos/fusebox-tables/5940a6eb_Captura de pantalla 2024-10-04 173608.jpg)
![2006 Honda FR-V fuse box diagram Interior Fue Box [Petrol]](https://images.rewise.ai/originals/legos/fusebox-diagrams/4d372e04_Captura de pantalla 2024-10-04 173629.jpg)
![2006 Honda FR-V fuse box diagram Interior Fue Box [Petrol]](https://images.rewise.ai/originals/legos/fusebox-tables/81f0a239_Captura de pantalla 2024-10-04 173701.jpg)
![2006 Honda FR-V fuse box diagram Interior Fue Box [Petrol]](https://images.rewise.ai/originals/legos/fusebox-tables/1383d441_Captura de pantalla 2024-10-04 173706.jpg)
![2006 Honda FR-V fuse box diagram Interior Fuse Box [Diesel]](https://images.rewise.ai/originals/legos/fusebox-diagrams/66aa49b6_Captura de pantalla 2024-10-04 173827.jpg)
![2006 Honda FR-V fuse box diagram Interior Fuse Box [Diesel]](https://images.rewise.ai/originals/legos/fusebox-tables/f0f5530b_Captura de pantalla 2024-10-04 173849.jpg)
![2006 Honda FR-V fuse box diagram Interior Fuse Box [Diesel]](https://images.rewise.ai/originals/legos/fusebox-tables/4cddd2fe_Captura de pantalla 2024-10-04 173853.jpg)
![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Diesel]](https://images.rewise.ai/originals/legos/fusebox-diagrams/ca77fb24_Captura de pantalla 2024-10-04 173733.jpg)
![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Diesel]](https://images.rewise.ai/originals/legos/fusebox-tables/30bb3be8_Captura de pantalla 2024-10-04 173758.jpg)
![2006 Honda FR-V fuse box diagram Under-bonnet Fuse Box [Diesel]](https://images.rewise.ai/originals/legos/fusebox-tables/2797e118_Captura de pantalla 2024-10-04 173802.jpg)
