2014 Ford Transit Connect fuse box diagram

The 2014 Transit Connect 2nd generation pre-facelift has 3 different fuse boxes:

Engine Compartment Fuse Box diagram

Passenger Compartment Fuse Box diagram

Load Compartment Fuse Box diagram

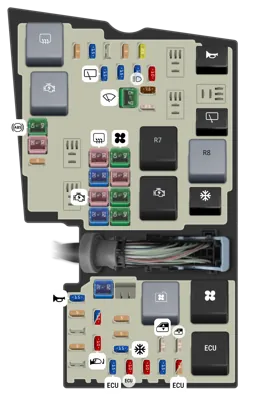

Engine Compartment Fuse Box

Type	No.		Description
Fuse FMX/JCase 40A	F7		Anti-lock brake system
Fuse FMX/JCase 30A	F8		Stability control
Fuse FMX/JCase 30A	F9		Heated rear window
Fuse FMX/JCase 40A	F10		Blower motor
Fuse FMX/JCase 20A	F11		Rear floor console auxiliary power point Cargo area auxiliary power point [van only, vehicles with Start/Stop]
Fuse FMX/JCase 30A	F12		Powertrain control module
Fuse FMX/JCase 30A	F13		Starter relay View problems with the starter fuse...
Fuse FMX/JCase 40A	F14		Heated windshield (right-hand)
Fuse FMX/JCase 20A	F15		Cargo area auxiliary power point [van only, vehicles without Start/Stop] Luggage compartment auxiliary power point [Tourneo, vehicles without Start/Stop]
Fuse FMX/JCase 40A	F16		Heated windshield (left-hand)
Fuse FMX/JCase 20A	F17		Floor console auxiliary power point
Fuse MINI 5A	F19		Anti-lock brake system Stability Control
Fuse MINI 15A	F20		Horn View problems with the horn fuse...
Fuse MINI 5A	F21		Stop lamp switch
Fuse MINI 15A	F22		Battery monitor system [1.6 GTDI engine only]
Fuse MINI 10A	F22		Power supply voltage [powertrain control module 2.5 L engine only]
Fuse MINI 5A	F23		Relay coils
Fuse MINI 10A	F25		Power mirrors [without door control unit]
Fuse MINI 5A	F26		* Engine control relay coil feed [2.5 L engine only]
Fuse MINI 15A	F27		Air conditioning clutch View problems with the air conditioning fuse...
Fuse MINI 25A	F28		Rear power window [Without door control unit]
Fuse MINI 25A	F29		Front power window [without door control unit]
Fuse MINI 5A	F30		Ignition switch position Il output [van only]
Fuse MINI 15A	F32		Engine control module
Fuse MINI 10A	F33		Engine control module
Fuse MINI 10A	F34		Fuel injectors
Fuse MINI 15A	F35		Filter Heater
Fuse MINI 10A	F36		Engine control module [DV6 and Fox engine only]
Fuse MINI 5A	F36		Active grill shutter [1.6 GTDI and 2.5L engine only]
Fuse MINI 5A	F37		Parking assist control module [van only]
Fuse MINI 15A	F38		Engine control module Transmission control module
Fuse MINI 5A	F40		Electronic power assist steering
Fuse MINI 20A	F41		Body control module
Fuse MINI 15A	F42		Rear window wiper
Fuse MINI 15A	F43		Heated front seat [wagon only]
Fuse MINI 15A	F44		Headlamp control module View problems with the headlight fuse...
Fuse MINI 10A	F45		Heated washer nozzle
Fuse FMX/JCase 40A	F46		Windshield wiper
Fuse MINI 7.5A	F47		Heated exterior mirror [without door control unit]
Fuse MINI 25A	F48		Body control module
Relay	R2		Horn View problems with the horn relay...
Relay	R5		Rear window wiper
Relay	R7		Heated windshield
Relay	R8		Accessory delay
Relay	R10		Starter motor View problems with the starter relay...
Relay	R11		Air conditioning clutch View problems with the air conditioning relay...
Relay	R12		Cooling fan View problems with the cooling fan relay...
Relay	R13		Blower motor
Relay	R14		Electronic engine control
Relay	R15		Heated rear window
Relay	R16		Ignition View problems with the starter relay...

🖨️ Printable diagram💎

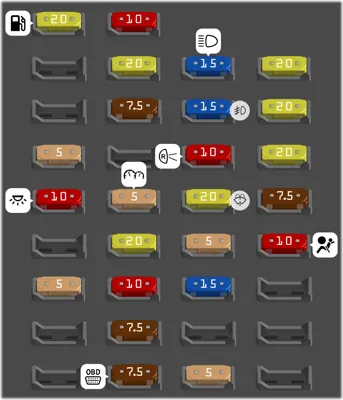

Passenger Compartment Fuse Box

Type	No.		Description
Fuse MINI 20A	F56		Fuel pump View problems with the fuel pump fuse...
Fuse MINI 5A	F59		Passive anti-theft system transceiver
Fuse MINI 10A	F60		Interior lamp, Driver door switch pack, Glove compartment lamp, Overhead console switch bank
Fuse MINI 5A	F62		Autowipers Auto-dimming interior mirror
Fuse MINI 10A	F65		Liftgate release
Fuse MINI 20A	F66		Front door double locking and unlock relay
Fuse MINI 7.5A	F67		SYNC Front display interface module, Global positioning system module
Fuse MINI 5A	F69		Instrument panel cluster
Fuse MINI 20A	F70		Central locking relay
Fuse MINI 10A	F71		Heating control head (manual air conditioning), Dual automatic temperature control
Fuse MINI 7.5A	F72		Steering wheel module
Fuse MINI 7.5A	F73		Data link connector, Battery backup sounder
Fuse MINI 15A	F74		High beam headlamp View problems with the headlight fuse...
Fuse MINI 15A	F75		Front fog lamp View problems with the fog light fuse...
Fuse MINI 10A	F76		Reversing lamp
Fuse MINI 20A	F77		Washer pump
Fuse MINI 5A	F78		Not used
Fuse MINI 15A	F79		Audio unit DVD navigation system, Touchscreen, Hazard flasher switch, Door lock switch
Fuse MINI 5A	F81		Power sunroof interior motion sensor
Fuse MINI 20A	F82		Washer pump (ground fuse)
Fuse MINI 20A	F83		Central locking (ground fuse)
Fuse MINI 20A	F84		Double locking (ground fuse)
Fuse MINI 7.5A	F85		Ignition switch
Fuse MINI 10A	F86		Airbag module, Occupant classification system, Passenger airbag deactivation indicator

🖨️ Printable diagram💎

Load Compartment Fuse Box

Type	No.		Description
Fuse MINI 10A	F1		Rear heating, ventilation and air conditioning View problems with the air conditioning fuse...
Fuse MINI 25A	F2		Driver seat adjuster
Fuse MINI 25A	F3		Driver door module
Fuse MINI 25A	F4		Passenger door module
Fuse MINI 25A	F6		Door control unit rear left
Fuse MINI 25A	F7		Door control unit rear right
Fuse FMX/JCase 40A	F25		Rear blower motor
Fuse FMX/JCase 40A	F26		Accessories Trailer tow module
Fuse MINI 5A	F29		Rear view camera
Fuse MINI 5A	F30		Parking aid
Fuse MINI 15A	F34		Driver heated seat
Fuse MINI 15A	F35		Passenger heated seat
Fuse MINI 20A	F37		Power sunblind
Relay	R1		Ignition Switch
Relay	R2		Rear heating, ventilation and air conditioning motor

🖨️ Printable diagram💎
