1994 Ford Bronco fuse box diagram

The 1994 Bronco 5th generation has 3 different fuse boxes:

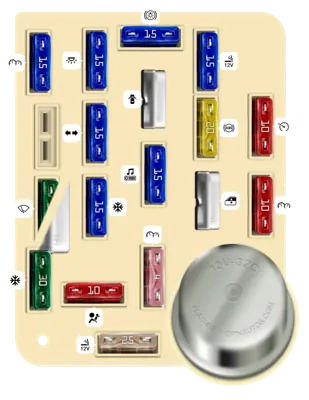

Instrument Panel Fuse Panel diagram

1994 Ford Bronco fuse box diagram Engine Compartment Fuse Box

Engine Compartment Fuse Box diagram

1994 Ford Bronco fuse box diagram Trailer Relay Box

Trailer Relay Box diagram

Instrument Panel Fuse Panel

Instrument Panel Fuse Panel
Type	No.	Description
Fuse ATO 30A	1	Air Conditioner/Heater View problems with the air conditioning fuse...
Fuse ATO 30A	2	Wiper/Washer
Circuit breaker MAXI	2	Interval Wiper/Washer
Fuse ATO 15A	4	Exterior Lamps, Trailer Marker Lamps Relay, Warning Chime, Instrument illumination
Fuse ATO 10A	5	Air Bag System
Fuse ATO 15A	6	Fuel Tank Selector [Diesel Only], Air Conditioner/Heater View problems with the air conditioning fuse...
Fuse ATO 15A	7	Turn Lamps, Rear Window Defrost [Bronco Only]
Fuse ATO 15A	8	Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime
Fuse ATO 25A	9	Power Point View problems with the cigarette lighter fuse...
Fuse ATO 4A	10	Instrument Illumination
Fuse ATO 15A	11	Radio, Radio Display Dim View problems with the radio fuse...
Circuit breaker ATO	12	Power Door Lock, Power Tailgate Window [Bronco Only], Electronic Shift Control, Power Lumbar
Fuse ATO 15A	13	Stop and Hazard Lamps, Stop Sense For: Anti-lock Brakes, Speed Control, Electronic Engine Control View problems with the brake light fuse...
Circuit breaker ATO	14	Power Windows
Fuse ATO 20A	15	Anti-lock Brakes
Fuse ATO 15A	16	Cigar Lighter View problems with the cigarette lighter fuse...
Fuse ATO 10A	17	Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control
Fuse ATO 10A	18	Speedometer, Speed Control. Electronic Shift Control

🖨️ Printable diagram💎

Engine Compartment Fuse Box

Engine Compartment Fuse Box
Type	No.	Description
Fuse ATO 20A	1	Radio View problems with the radio fuse...
Fuse ATO 15A	2	Fog Lamp Relay, 4WABS Relay Nº1 View problems with the fog light fuse...
Fuse ATO 30A	3	Horn, Headlamp Flash-to-Pass, Dytime Running Light, Speed Control View problems with the horn fuse...
Fuse ATO 25A	4	Trailer Market Lamps Relay, Trailer Backup Lamps Relay
Fuse ATO 15A	5	Backup Lamps, Daytime Runnin Light, Trailer Battery Charge Relay, Heater Exhaust Gas Oxygen (HEGO) Sensor, 4WABS [Gasoline]
Fuse ATO 10A	6	Trailer Right Stop/Turn Lamps View problems with the tail light fuse... View problems with the brake light fuse...
Fuse ATO 10A	7	Trailer Left Stop/Turn Lamps View problems with the tail light fuse... View problems with the brake light fuse...
Fuse MAXI 30A	8	4WABS Relay Nº2
Fuse MAXI 20A	9	Powertrain Control Module [Diesel]
Fuse MAXI 20A	9	EEC/PCM Power Relay, Electronic Engine/Powertrain Control Module, Fuel Pump Relay [Gasoline] View problems with the fuel pump fuse...
Fuse MAXI 20A	10	Starter Relay, Fuse (Passenger Compartment): "15", "18" View problems with the starter fuse...
Fuse MAXI 20A	11	Fuel Plug Controller, Fuel Shutoff Solenoid, Engine Temperature Switch, Cold Timing Advance Solenoid, Cold Idle Solenoid [Diesel]
Diode ATO	12	Power Control Moduole (PCM), Electronic Egine Control (EEC) Power
Fuse MAXI 50A	13	Fuse (Passenger Compartment): "5", "9", "13"
Fuse MAXI 30A	14	Rear Window Defrost
Fuse MAXI 50A	15	Fuse (Passenger Compartment): "1","7", Fuse (Engine Compartment): "5"
Fuse MAXI 20A	16	Fuel Pump Relay [Gasoline] View problems with the fuel pump fuse...
Fuse MAXI 50A	17	Alternator Charge Light, Fuse (Passenger Compartment): "6", "11", "14", "17", Fuse (Engine Compartment): "22"
Fuse MAXI 30A	18	Trailer Battery Charge Relay
Fuse MAXI 50A	20	Fuse (Passenger Compartment): "4", "8", "12", "16"
Fuse MAXI 30A	21	Trailer Electronic Brake Control Unit
Fuse MAXI 20A	22	Fuel Line Heater (Fuel Heater), Leece/Neville Alternator (Ambulance Package Generator), Electronic Transmission Control, Power Control Module (PCM) Power Relay, Glow Plug Relay [Diesel]
Fuse MAXI 20A	22	TFI Ignition Module, Ignition Coil, Distributor, EEC/PCM Power Relay [Gasoline]
Relay	R1	Fog Lamps, ABS Pump Motor
Relay	R2	Trailer Marker Lamps or Dual Rear Wheel Running Lights
Relay	R3	Horn View problems with the horn relay...
Relay	R4	Trailer Backup Lamps, IDM Power [Direct Injection Diesel] [Diesel], Fuel Pump [Gasoline] View problems with the fuel pump relay...
Relay	R5	TEGA/PCM Power or Electronic Transmission Control System [Diesel]
Relay	R5	Electronic Engine Control/Powertrain Control Module (EEC/PCM) Power [Gasoline]
