2012 Chevrolet Malibu fuse box diagram
The 2012 Malibu 7th generation (also known as "Epsilon") has 3 different fuse boxes:
Engine Compartment Fuse Block diagram
Instrument Panel Fuse Block diagram
Rear Compartment Fuse Block diagram
Engine Compartment Fuse Block
| Type | Description | |
|---|---|---|

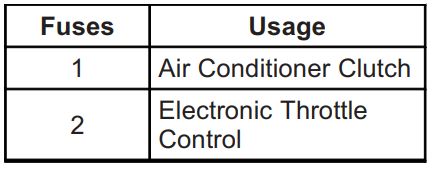

Fuse MINI 10A | 1 Air Conditioner Clutch | |
Fuse MINI 15A | 2 Electronic Throttle Control | |
Fuse MINI 10A | 3 Not Used | |
Fuse MINI 10A | 4 Transmission Control Module Ignition 1 | |
Fuse MINI 20A | 5 Mass Airflow Sensor [LY7] | |
Fuse MINI 10A | 6 Emission | |
Fuse MINI 10A | 7 Left Headlamp Low-Beam | |
Fuse MINI 15A | 8 Horn | |
Fuse MINI 10A | 9 Right Headlamp Low-Beam | |
Fuse MINI 15A | 10 Front Fog Lamps | |
Fuse MINI 10A | 11 Left Headlamp High-Beam | |
Fuse MINI 10A | 12 Right Headlamp High-Beam | |
Fuse MINI 10A | 13 Engine Control Module BATT | |
Fuse MINI 25A | 14 Windshield Wiper | |
Fuse MINI 10A | 15 Antilock Brake System (IGN 1) | |
Fuse MINI 10A | 16 Engine Control Module IGN 1 | |
Fuse FMX/JCase 30A | 17 Cooling Fan 1 | |
Fuse FMX/JCase 30A | 18 Cooling Fan 2 | |
Fuse FMX/JCase 30A | 19 Run Relay, Heating, Ventilation, Air Conditioning Blower | |
Fuse FMX/JCase 30A | 20 Body Control Module 1 | |
Fuse FMX/JCase 30A | 21 Body Control Module Run/Crank | |
Fuse FMX/JCase 60A | 22 Rear Electrical Center 1 | |
Fuse FMX/JCase 60A | 23 Rear ElectricalCenter 2 | |
Fuse FMX/JCase 60A | 24 Antilock Brake System | |
Fuse FMX/JCase 50A | 25 Body Control Module 2 | |
Fuse FMX/JCase 30A | 26 Starter | |
Battery terminal | 41 Electric Power Steering | |
Fuse MINI 10A | 42 Transmission Control Module Battery | |
Fuse MINI 15A | 43 Ignition Module [LE9 & LE5], Injectors, Ignition Coils Odd [LY7] | |
Fuse MINI 15A | 44 Injectors [LE9 & LE5], Injectors, Ignition Coils Even [LY7] | |
Fuse MINI 10A | 45 Post Cat 02 Sensor Heaters [LY7] | |
Fuse MINI 15A | 46 Daytime Running Lamps | |
Fuse MINI 10A | 47 Center High-Mounted Stoplamp | |
Fuse FMX/JCase 20A | 50 Driver Power Window | |
Fuse MINI 10A | 51 Not Used | |
Fuse MINI 5A | 54 Regulated Voltage Control | |
Fuse FMX/JCase 30A | 55 DC/AC Inverter | |
Fuse MINI 30A | 56 Antilock Brake System BATT | |
Relay | 28 Cooling Fan 1 | |
Relay | 29 Cooling Fan Series/ Paralle | |
Relay | 30 Cooling Fan 2 | |
Relay | 31 Starter | |
Relay | 32 Run/Crank, Ignition | |
Relay | 33 Powertrain | |
Relay | 34 Air Conditioning Clutch | |
Relay | 35 High Beam | |
Relay | 36 Front Fog Lamps | |
Relay | 37 Horn | |
Relay | 38 Low-Beam Headlamp | |
Relay | 39 Windshield Wiper 1 | |
Relay | 40 Windshield Wiper 2 | |
Relay | 48 Daytime Running Lamps | |
Relay | 49 Stoplamps | |
Diode MINI | 27 Wiper | |
Fuse puller | UNIDENTIFIED 6 Extraction tool for fuse replacement. | |
Fuse FMX/JCase 20A | 52 AIR Solenoid | |
Relay | 53 AIR Solenoid |
Instrument Panel Fuse Block
| Type | Description | |
|---|---|---|
Fuse MINI | POWER MIRRORS Power Mirrors | |
Fuse MINI | EPS Electronic Power Steering | |
Fuse MINI | RUN/CRANK Cruise Control Switch, Passenger Airbag Status Indicator | |
Relay | HVAC BLOWER HIGH Heating Ventilation Air Conditioning Blower - High Speed Relay | |
Fuse MINI | CLUSTER/ THEFT Instrument Panel Cluster, Theft Deterrent System | |
Fuse MINI | ONSTAR OnStar [If Equipped] | |
Fuse MINI | AIRBAG (IGN) Airbag (Ignition) | |
Fuse MINI | HVAC CTRL (BATT) Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery) | |
Fuse MINI | WIPER SW Windshield Wiper/ Washer Switch | |
Fuse MINI | IGN SENSOR Ignition Switch | |
Fuse MINI | STR/WHL ILLUM Steering Wheel Illumination | |
Fuse MINI | RADIO Audio System | |
Fuse MINI | INTERIOR LIGHTS Interior Lamps | |
Fuse FMX/JCase | POWER WINDOWS Power Windows | |
Fuse MINI | HVAC CTRL (IGN) Heating Ventilation Air Conditioning Control (Ignition) | |
Fuse MINI | HVAC BLOWER Heating Ventilation Air Conditioning Blower Switch | |
Fuse MINI | DOOR LOCK Door Locks | |
Fuse MINI | ROOF/HEAT SEAT Sunroof, Heated Seat | |
Fuse MINI | AIRBAG (BATT) Airbag (Battery) | |
Fuse MINI | SPARE FUSE HOLDER1 Spare | |
Fuse MINI | SPARE FUSE HOLDER2 Spare | |
Fuse MINI | SPARE FUSE HOLDER3 Spare | |
Fuse MINI | SPARE FUSE HOLDER4 Spare | |
Fuse puller | FUSE PULLER Fuse Puller |
Rear Compartment Fuse Block

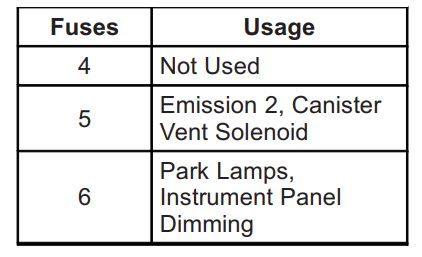

| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 10A | F1 | Park Lamps, Instrument Panel Dimming | |
Fuse MINI 10A | F5 | Back-up Lamps | |
Diode MINI | F10 | Cargo Lamp | |
Fuse MINI 20A | F12 | Auxiliary Power Outlets | |
Fuse MINI 7.5A | F19 | Remote Keyless Entry (RKE) System, XM Satellite Radio (If Equipped) | |
Fuse MINI | F21 | Sunroof Controls | |
Fuse MINI 25A | F23 | Audio Amplifier | |
Fuse MINI 15A | F24 | Heated Seat Controls | |
Fuse MINI 10A | F25 | Trunk Release | |
Fuse MINI 30A | F26 | Rear Defog | |
Fuse MINI | F27 | Heated Mirrors | |
Fuse MINI 15A | F28 | Fuel Pump | |
Fuse MINI 10A | F30 | Emission 2, Canister Vent Solenoid | |

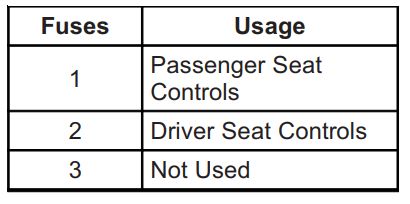

Fuse FMX/JCase | F31 | Passenger Seat Controls | |
Fuse FMX/JCase 30A | F32 | Driver Seat Controls | |
Relay | R1 | Park Lamps | |
Relay | R3 | Back-up Lamps | |
Relay | R9 | Trunk Release | |
Relay | R10 | Rear Window Defogger | |
Relay | R11 | Fuel Pump |
