2022 Toyota Corolla Cross fuse box diagram

The 2022 Corolla Cross 1st generation (also known as "XG10") has 5 different fuse boxes:

2022 Toyota Corolla Cross fuse box diagram Engine fuse panel (2ZR-FE, M20A-FKS motors)
Engine fuse panel (2ZR-FE, M20A-FKS motors) diagram
2022 Toyota Corolla Cross fuse box diagram Engine fuse panel (M20A-FKS motor, before Nov. 2022)
Engine fuse panel (M20A-FKS motor, before Nov. 2022) diagram
2022 Toyota Corolla Cross fuse box diagram Engine fuse panel (M20A-FKS, from Nov. 2022)
Engine fuse panel (M20A-FKS, from Nov. 2022) diagram
2022 Toyota Corolla Cross fuse box diagram Interior fuse panel (M20A-FKS Before Nov. 2022)
Interior fuse panel (M20A-FKS Before Nov. 2022) diagram
2022 Toyota Corolla Cross fuse box diagram Interior fuse panel (M20A-FKS From Nov. 2022)
Interior fuse panel (M20A-FKS From Nov. 2022) diagram
Engine fuse panel (2ZR-FE, M20A-FKS motors)
Engine fuse panel (2ZR-FE, M20A-FKS motors)
Engine fuse panel (2ZR-FE, M20A-FKS motors)
Engine fuse panel (2ZR-FE, M20A-FKS motors)
TypeNo.Description
Fuse FMX/JCase
30A		1
ABS. Hill-Start Assist Control. TRC. VSC.
Fuse MINI
10A		2
Cruise Control. CVT and Shift Indicator. Dynamic Radar Cruise Control. Engine Control.
Fuse MINI
20A		3
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
20A		4
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
10A		5
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
10A		6
Back Door Opener. Entry & Start System. Horn. Immobiliser System. Starting. Steering Lock. Theft Deterrent. Wireless Door Lock Control.
Fuse MINI
30A		7
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
7.5A		8
Telematics System.
Fuse MINI
10A		9
Automatic Light Control. Headlight. Headlight Beam Level Control. Light Auto Turn Off System. Light Reminder.
Fuse MINI
10A		10
Automatic Light Control. Headlight. Light Auto Turn Off System. Light Reminder.
Fuse MPF2
12
Power Source.
Fuse FLM
80A		15
EPS. EPS.
Fuse MINI
30A		17
Power Source.
Fuse MINI
7.5A		18
Headlight.
Fuse MINI
7.5A		20
Back Door Opener. Entry & Start System. Immobiliser System. Starting. Steering Lock. Theft Deterrent. Wireless Door Lock Control.
Fuse MINI
10A		21
Headlight.
Fuse MINI
25A		26
Cooling Fan. Cruise Control. CVT and Shift Indicator. Dynamic Radar Cruise Control. Engine Control.
Fuse MINI
30A		27
Back Door Opener. Entry & Start System. Immobiliser System. Starting. Steering Lock. Wireless Door Lock Control.
Fuse MINI
25A		28
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
30A		29
Front Wiper and Washer. Rear Wiper and Washer.
Fuse MINI
20A		30
Power Source.
Fuse MINI
10A		31
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
10A		32
Combination Meter. Cruise Control. CVT and Shift Indicator. Engine Control. Ignition.
Fuse MINI
10A		33
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
10A		34
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
10A		35
Cooling Fan. Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
7.5A		36
Cruise Control. CVT and Shift Indicator. Engine Control.
Fuse MINI
10A		37
Back Door Opener. Entry & Start System. Immobiliser System. Starting. Steering Lock. Wireless Door Lock Control.
Fuse MINI
10A		39
Cruise Control. CVT and Shift Indicator. Dynamic Radar Cruise Control. Engine Control.
Fuse MINI
7.5A		44
Power Outlet.
Fuse FMX/JCase
50A		47
ABS. Hill-Start Assist Control. TRC. VSC.
Fuse MINI
7.5A		52
Front Fog Light.
Fuse MINI
30A		55
Cruise Control. CVT and Shift Indicator. Engine Control. Rear Window Defogger.
Fuse MPF2
58
Cooling Fan.
Fuse MPF2
59
Cooling Fan.
Fuse MPF2
60
Power Back Door.
Fuse MPF2
61
Air Conditioner.
Fuse MINI
30A		62
Spare
Fuse MINI
25A		63
Spare
Fuse MINI
10A		64
Spare
Relay
R1
EFI-MAIN NO.3
Relay
R2
PTC HTR NO.2
Relay
R3
EFI-MAIN NO.2
Relay
R4
PTC HTR NO.3
Relay
R5
PTC HTR NO.1
Relay
R6
DEF
Relay
R7
HORN
Relay
R9
D INJ
Relay
R10
ST
Engine fuse panel (M20A-FKS motor, before Nov. 2022)
Engine fuse panel (M20A-FKS motor, before Nov. 2022)
Engine fuse panel (M20A-FKS motor, before Nov. 2022)
Engine fuse panel (M20A-FKS motor, before Nov. 2022)
TypeDescription
Fuse MINI
7.5A
F3
(ECU-B NO.3) Engine control unit
Fuse MINI
5A
F4
(BATT-S) Battery and charging system
Fuse MINI
10A
F5
(EFI NO.1) Multiport fuel injection system
Fuse MINI
30A
F6
(EFI-MAIN NO.3) Multiport fuel injection system
Fuse MINI
10A
F7
(HORN) Horn
Fuse MINI
25A
F8
D INJ
Fuse MINI
10A
F10
(H-LP RH) Right-hand headlight
Fuse MINI
25A
F11
(IGP-MAIN) Ignition
Fuse MPF2
F13
PA BBC
Fuse MPF2
F14
(BBC NO.2) Stop & Start system
Fuse FLF/PAL 293
80A
F15
(EPS) Electric power steering
Fuse MINI
10A
F17
D/C CUT
Fuse MINI
7.5A
F18
(DRL) Daytime running lights
Fuse MINI
20A
F19
VVT
Fuse MINI
7.5A
F20
(S-HORN) Horn / anti-theft deterrent
Fuse MINI
7.5A
F21
(H-LP HI) Headlights high beam
Fuse MINI
10A
F22
(H-LP LH) Left-hand headlight
Fuse MPF2
F23
(BBC NO.1) Stop & Start system
Fuse MPF2
F24
(ABS-MAIN) Anti-lock braking system
Fuse MPF2
F25
INP STD NO.3
Fuse MINI
25A
F26
(EFI-MAIN NO.2) Multiport fuel injection system
Fuse MINI
30A
F28
(ST) Starter system
Fuse MINI
30A
F29
(EFI-MAIN NO.1) Multiport fuel injection system
Fuse MINI
30A
F30
(WIPER) Wipers
Fuse MINI
10A
F31
ECU-IGP NO.3
Fuse MINI
10A
F32
ECU-IGP NO.2
Fuse MINI
15A
F33
(WASHER) Windshield washer
Fuse MINI
7.5A
F34
(EFI NO.3) Multiport fuel injection system
Fuse MINI
10A
F36
(EFI NO.2) Multiport fuel injection system
Fuse MINI
7.5A
F37
(EFI NO.4) Multiport fuel injection system
Fuse MINI
7.5A
F38
ECU-IGP NO.1
Fuse MINI
10A
F39
(INJ) Fuel injectors
Fuse MINI
10A
F40
(EFI NO.5) Multiport fuel injection system
Fuse FLF/PAL 293
80A
F48
INP STD NO.2
Fuse MINI
7.5A
F53
(FOG FR) Front fog lights
Fuse MINI
15A
F54
(DEICER) Deicer or defroster
Fuse MPF2
F57
(PTC HTR NO.3) Additional heater
Fuse MPF2
F58
(PTC HTR NO.2) Additional heater
Fuse MPF2
F59
(PTC HTR NO.1) Additional heater
Fuse MPF2
F60
(HTR) Air conditioning system
Fuse MPF2
F61
(FAN NO.1) Electric cooling fan
Fuse MPF2
F62
(ABS MTR) Anti-lock braking system
Relay
R1
(DRL) Daytime running lights
Relay
R2
(EFI-MAIN NO.1) Multiport fuel injection system
Relay
R3
(WIPER) Wipers
Relay
R4
(H-LP RH) Right-hand headlight
Relay
R5
(FAN NO.1) Electric cooling fan
Relay
R6
(ST) Starter system
Relay
R7
(H-LP LH) Left-hand headlight
Relay
R8
VVT
Relay
R9
(H-LP HI) Headlights high beam
Relay
R10
(EFI-MAIN NO.3) Multiport fuel injection system
Relay
R11
D INJ
Relay
R12
(EFI-MAIN NO.2) Multiport fuel injection system
Relay
R13
(IGP-MAIN) Ignition
Relay
R14
(HORN) Horn
Relay
R15
(S-HORN) Horn / anti-theft deterrent
Relay
R16
(DEICER) Deicer or defroster
Fuse MINI
30A
SPARE1
(SPARE) Spare fuse
Fuse MINI
25A
SPARE2
(SPARE) Spare fuse
Fuse MINI
10A
SPARE3
(SPARE) Spare fuse
Engine fuse panel (M20A-FKS, from Nov. 2022)
Engine fuse panel (M20A-FKS, from Nov. 2022)
Engine fuse panel (M20A-FKS, from Nov. 2022)
Engine fuse panel (M20A-FKS, from Nov. 2022)
TypeDescription
Fuse MINI
5A
F2
(EFI NO.1) Multiport fuel injection system
Fuse MINI
5A
F4
(BATT-S) Battery and charging system
Fuse MINI
7.5A
F5
(S-HORN) Horn / anti-theft deterrent
Fuse MINI
10A
F6
(HORN) Horn
Fuse MINI
20A
F8
D INJ
Fuse MINI
10A
F9
H-LP LH [w/o Adaptive Front-Lighting System}
Fuse MINI
15A
F9
H-LP LH [w/ Adaptive Front-Lighting System}
Fuse MINI
10A
F10
H-LP RH [w/o Adaptive Front-Lighting System}
Fuse MINI
15A
F10
H-LP RH [w/ Adaptive Front-Lighting System}
Fuse MINI
25A
F11
(IGP-MAIN) Ignition
Fuse MINI
25A
F13
(EFI-MAIN NO.2) Multiport fuel injection system
Fuse FLF/PAL 293
80A
F14
INP STD NO.3
Fuse FLF/PAL 293
80A
F15
(EPS) Electric power steering
Fuse FMX/JCase
30A
F16
PA-BBC
Fuse MINI
30A
F17
D/C CUT
Fuse MINI
20A
F19
VVT
Fuse MINI
30A
F20
(EFI-MAIN NO.3) Multiport fuel injection system
Fuse MINI
7.5A
F21
(H-LP HI) Headlights high beam
Fuse MPF2
F23
(BBC NO.2) Stop & Start system
Fuse MPF2
F25
(BBC NO.1) Stop & Start system
Fuse MINI
30A
F26
(WIPER) Wipers
Fuse MINI
30A
F27
(ST) Starter system
Fuse MINI
30A
F28
(EFI-MAIN NO.1) Multiport fuel injection system
Fuse MINI
10A
F31
ECU-IGP NO.3
Fuse MINI
5A
F32
ECU-IGP NO.1
Fuse MINI
7.5A
F33
(IGN) Ignition
Fuse MINI
7.5A
F34
(EFI NO.4) Multiport fuel injection system
Fuse MINI
5A
F36
ECU-IGP NO.2
Fuse MINI
15A
F37
(WASHER) Windshield washer
Fuse MINI
10A
F38
(EFI NO.3) Multiport fuel injection system
Fuse MINI
10A
F39
(EFI NO.2) Multiport fuel injection system
Fuse MINI
10A
F40
(EFI NO.5) Multiport fuel injection system
Fuse MINI
10A
F43
(STRG HTR) Heated steering wheel
Fuse FLF/PAL 293
80A
F48
INP STD NO.2
Fuse MINI
7.5A
F53
(FOG FR) Front fog lights
Fuse MINI
15A
F54
(DEICER) Deicer or defroster
Fuse MPF2
F57
(ABS NO.2) Anti-lock braking system
Fuse MPF2
F59
(ABS NO.1) Anti-lock braking system
Fuse MPF2
F60
(FAN NO.1) Electric cooling fan
Fuse MPF2
F62
(HTR) Air conditioning system
Relay
R1
D INJ
Relay
R3
(WIPER) Wipers
Relay
R4
(H-LP RH) Right-hand headlight
Relay
R5
(H-LP LH) Left-hand headlight
Relay
R6
(EFI-MAIN NO.2) Multiport fuel injection system
Relay
R7
(WIPER) Wipers
Relay
R8
VVT
Relay
R9
(DIM) Instrument panel lights
Relay
R10
(IGP-MAIN) Ignition
Relay
R11
(DEICER) Deicer or defroster
Relay
R13
(EFI-MAIN NO.3) Multiport fuel injection system
Relay
R14
(HORN) Horn
Relay
R15
(ST) Starter system
Relay
R16
(EFI-MAIN NO.1) Multiport fuel injection system
Fuse MINI
30A
SPARE1
(SPARE) Spare fuse
Fuse MINI
25A
SPARE2
(SPARE) Spare fuse
Fuse MINI
10A
SPARE3
(SPARE) Spare fuse

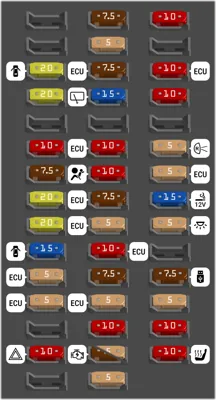

Interior fuse panel (M20A-FKS Before Nov. 2022)
Interior fuse panel (M20A-FKS Before Nov. 2022)
Interior fuse panel (M20A-FKS Before Nov. 2022)
Interior fuse panel (M20A-FKS Before Nov. 2022)
TypeNo.Description
Fuse MINI
20A		F3
(DOOR F/L) Front left door lock
Fuse MINI
20A		F4
(DOOR R/L) Rear left door
Fuse MINI
10A		F6
DOOR BACK
Fuse MINI
7.5A		F7
(OBD) On-board diagnostics
Fuse MINI
20A		F8
(DOOR F/R) Front right door
Fuse MINI
20A		F9
(DOOR R/R) Rear right door
Fuse MINI
15A		F10
(D/L) Power door lock system
Fuse MINI
5A		F11
(ECU-DCC NO.2) Engine control unit
Fuse MINI
5A		F12
(ECU-DCC NO.1) Engine control unit
Fuse MINI
10A		F14
(HAZ) Hazard light
Fuse MINI
7.5A		F16
(TAIL) Tail lights
Fuse MINI
5A		F17
(PANEL) Instrument panel lights
Fuse MINI
7.5A		F18
(ECU-IGR NO.2) Engine control unit
Fuse MINI
15A		F19
(WIPER RR) Rear wiper
Fuse MINI
10A		F21
(ECU-IGR NO.1) Engine control unit
Fuse MINI
10A		F22
(A/BAG-IGR) Airbag
Fuse MINI
7.5A		F23
(ECU-IGR NO.5) Engine control unit
Fuse MINI
5A		F24
(ECU-B NO.1) Engine control unit
Fuse MINI
10A		F25
(ECU-B NO.2) Engine control unit
Fuse MINI
7.5A		F26
(STOP) Stop lights
Fuse MINI
5A		F27
(ECU-ACC) Engine control unit
Fuse MINI
10A		F28
(STRG LOCK) Steering lock
Fuse MINI
7.5A		F29
(AM2 [w/ Smart Key System]) Starter system
Fuse MINI
5A		F29
(AM2 [w/o Smart Key System]) Starter system
Fuse MINI
5A		F30
(DCM) Data communication module (telematics system)
Fuse MINI
10A		F31
(MIR HTR) Mirror heater
Fuse MINI
10A		F33
(ECU-IGR NO.4) Engine control unit
Fuse MINI
10A		F34
(STRG HTR) Heated steering wheel
Fuse MINI
5A		F36
(BKUP LP) Backup lights
Fuse MINI
5A		F37
(ECU-IGR NO.3) Engine control unit
Fuse MINI
15A		F38
(P/OUTLET NO.1) Cigar lighter / power outlet
Fuse MINI
5A		F39
(DOME) Dome light and interior light
Fuse MINI
7.5A		F41
(USB NO.1) USB charger
Fuse MINI
5A		F42
(SFT LOCK-ACC) AT Shift lock control system
Fuse MINI
10A		F43
(S/HTR F/L) Front seat heater
Fuse MINI
10A		F44
(S/HTR F/R) Seat heater
Interior fuse panel (M20A-FKS From Nov. 2022)
Interior fuse panel (M20A-FKS From Nov. 2022)
Interior fuse panel (M20A-FKS From Nov. 2022)
Interior fuse panel (M20A-FKS From Nov. 2022)
TypeNo.Description
Fuse MINI
5A		F2
+BA NO.2
Fuse MINI
20A		F3
(DOOR F/L) Front left door lock
Fuse MINI
20A		F4
(DOOR R/L) Rear left door
Fuse MINI
7.5A		F6
DOOR BACK
Fuse MINI
7.5A		F7
(OBD) On-board diagnostics
Fuse MINI
20A		F8
(DOOR F/R) Front right door
Fuse MINI
20A		F9
(DOOR R/R) Rear right door
Fuse MINI
15A		F10
(D/L) Power door lock system
Fuse MINI
10A		F11
(ECU-DCC NO.2) Engine control unit
Fuse MINI
5A		F12
(ECU-DCC NO.1) Engine control unit
Fuse MINI
15A		F13
(RADIO) Radio and audio system
Fuse MINI
10A		F14
(HAZ) Hazard light
Fuse MINI
10A		F15
(FUEL OPN) Fuel lid opener
Fuse MINI
7.5A		F16
(TAIL) Tail lights
Fuse MINI
3A		F17
(PANEL) Instrument panel lights
Fuse MINI
7.5A		F18
(ECU-IGR NO.2) Engine control unit
Fuse MINI
15A		F19
(WIPER RR) Rear wiper
Fuse MINI
3A		F20
(EPS-IGR) Electric power steering
Fuse MINI
10A		F21
(ECU-IGR NO.1) Engine control unit
Fuse MINI
10A		F22
(A/BAG-IGR) Airbag
Fuse MINI
5A		F24
(ECU-B NO.1) Engine control unit
Fuse MINI
10A		F25
(ECU-B NO.2) Engine control unit
Fuse MINI
7.5A		F26
(STOP) Stop lights
Fuse MINI
5A		F27
(ECU-ACC) Engine control unit
Fuse MINI
7.5A		F29
(AM2) Starter system
Fuse MINI
7.5A		F30
(AM2) Starter system
Fuse MINI
10A		F31
(MIR HTR) Mirror heater
Fuse MINI
5A		F33
(BKUP LP) Backup lights
Fuse MINI
30A		F35
(AMP NO.1) Audio system
Fuse MINI
7.5A		F36
(ECU-IGR NO.4) Engine control unit
Fuse MINI
5A		F37
(METER-IGR) Instrument cluster
Fuse MINI
15A		F38
(P/OUTLET NO.1) Cigar lighter / power outlet
Fuse MINI
5A		F39
(DOME) Dome light and interior light
Fuse MINI
10A		F41
(USB NO.1) USB charger
Fuse MINI
10A		F43
(S/HTR F/L) Front seat heater
Fuse MINI
10A		F44
(S/HTR F/R) Seat heater

Toyota Corolla Cross fuse box diagrams change across years, pick the right year of your vehicle:

Doesn't match your car?Ask for your diagram
Found a mistake?  Let us know!
Source: Toyota Corolla Cross 2022 Owner's Manual

Related guides

What is a fuse and what types can you find for your Corolla Cross?



Popular searches
RadioClutchOverheatingFusebox

Find what you needed?

Thank you!

Browse site version for:

Australia
Great Britain
New Zealand
United States
South Africa
Italy
France
Germany
International
EspañolPortuguês
©2026 Rewise Inc.
HelpPrivacyTermsFeedbackPublish with us💎 Go Premium
