2010 Ford Mondeo Facelift fuse box diagram
The 2010 Mondeo generation Mk4 (also known as "CD345") has 4 different fuse boxes:
Engine compartment fuse box diagram
Central fuse box diagram
Rear fuse box (4-door and 5-door) diagram
Rear fuse box (state) diagram

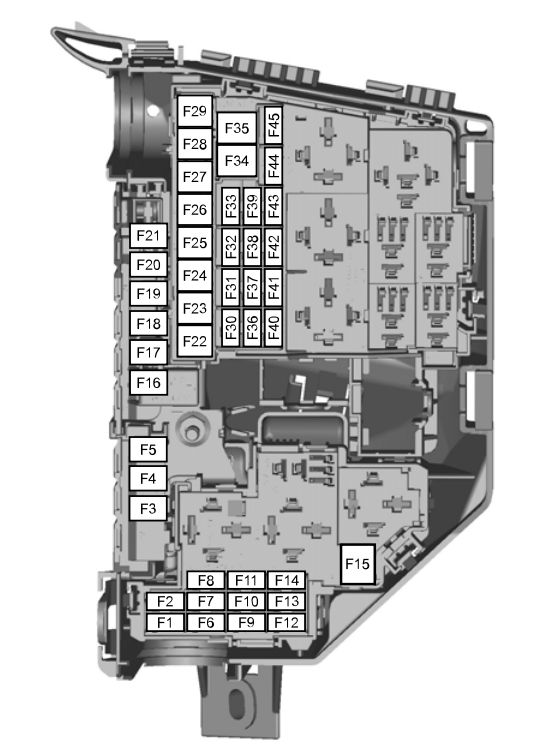

Engine compartment fuse box
| Type | No. | Description | |
|---|---|---|---|

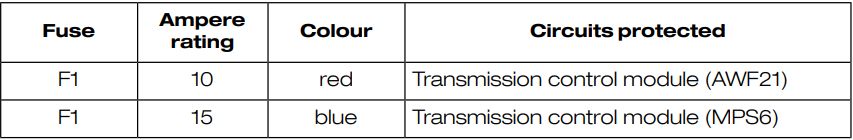

Fuse MINI 10A | F1 | Transmission control module (AWF21) | |
Fuse MINI 15A | F1 | Transmission control module (MPS6) | |

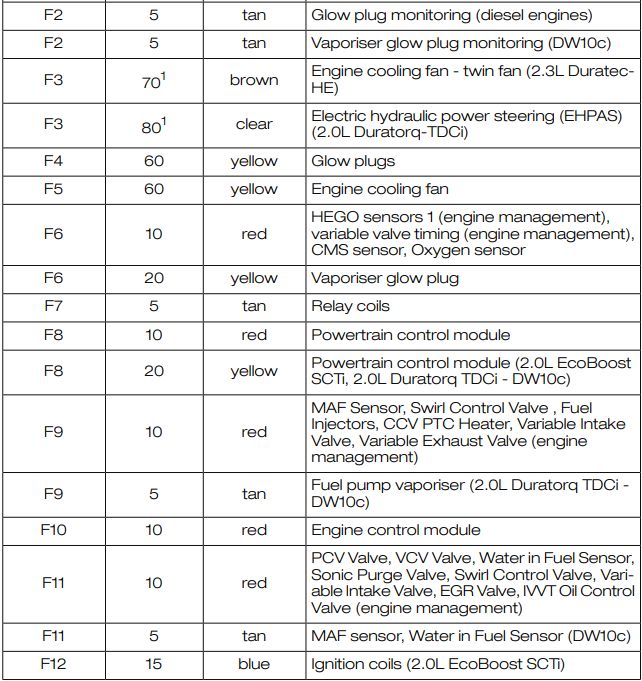

Fuse MINI 5A | F2 | Glow plug monitoring (diesel engines) | |
Fuse MINI 5A | F2 | Vaporiser glow plug monitoring (DW10c) | |
Fuse FMX/JCase 70A | F3 | Engine cooling fan - twin fan [2.3L DuratecHE] | |
Fuse FMX/JCase 80A | F3 | Electric hydraulic power steering (EHPAS) [2.0L Duratorq-TDCi] | |
Fuse FMX/JCase 60A | F4 | Glow plugs | |
Fuse FMX/JCase 60A | F5 | Engine cooling fan | |
Fuse MINI 10A | F6 | HEGO sensors 1 (engine management), variable valve timing (engine management), CMS sensor, Oxygen sensor | |
Fuse MINI 20A | F6 | Vaporiser glow plug | |
Fuse MINI 5A | F7 | Relay coils | |
Fuse MINI 10A | F8 | Powertrain control module | |
Fuse MINI 20A | F8 | Powertrain control module [2.0L EcoBoost SCTi, 2.0L Duratorq TDCi - DW10c] | |
Fuse MINI 10A | F9 | MAF Sensor, Swirl Control Valve, Fuel Injectors, CCV PTC Heater, Variable Intake Valve, Variable Exhaust Valve (engine management) | |
Fuse MINI 5A | F9 | Fuel pump vaporiser [2.0L Duratorq TDCi - DW10c] | |
Fuse MINI 10A | F10 | Engine control module | |
Fuse MINI 10A | F11 | PCV Valve, VCV Valve, Water in Fuel Sensor, Sonic Purge Valve, Swirl Control Valve, Variable Intake Valve, EGR Valve, IVVT Oil Control Valve (engine management) | |
Fuse MINI 5A | F11 | MAF sensor, Water in Fuel Sensor (DW10c) | |
Fuse MINI 15A | F12 | Ignition coils [2.0L EcoBoost SCTi] | |
Fuse MINI 10A | F12 | EGR Throttle, Variable Turbo Control Valve, Coil on Plug; Canister Purge Valve, Power Steering Pressure Switch (engine management) | |
Fuse MINI 5A | F12 | Relay coils (DW10c) | |
Fuse MINI 15A | F13 | Air conditioning relay | |
Fuse MINI 15A | F14 | Diesel filter heater | |
Fuse MINI 20A | F14 | Brake vacuum pump | |
Fuse FMX/JCase 40A | F15 | Starter relay | |
Fuse FMX/JCase 80A | F16 | Diesel auxiliary heater (PTC) | |
Fuse FMX/JCase 60A | F17 | Central fuse box supply A | |
Fuse FMX/JCase 60A | F18 | Central fuse box supply B | |
Fuse FMX/JCase 60A | F19 | Rear fuse box supply C | |
Fuse FMX/JCase 60A | F20 | Rear fuse box supply D | |
Fuse FMX/JCase 30A | F22 | Windscreen wiper module | |
Fuse FMX/JCase 25A | F23 | Heated rear window | |
Fuse FMX/JCase 30A | F24 | Headlamp washer | |
Fuse FMX/JCase 30A | F25 | ABS valves | |
Fuse FMX/JCase 40A | F26 | ABS pump | |
Fuse FMX/JCase 30A | F27 | Fuel fired heater | |
Fuse FMX/JCase 40A | F28 | Heater blower | |
Fuse MINI 15A | F31 | Horn | |
Fuse MINI 5A | F32 | Fuel fired heater - remote control | |
Fuse MINI 5A | F33 | Light switch module, engine compartment fuse box coils | |
Fuse FMX/JCase 40A | F34 | Heated windscreen (left-hand side) | |
Fuse FMX/JCase 40A | F35 | Heated windscreen (right-hand side) | |
Fuse MINI 5A | F36 | ABS | |
Fuse MINI 10A | F37 | Heated front washer jets | |
Fuse MINI 5A | F38 | Adaptive cruise control (ACC) | |
Fuse MINI 15A | F39 | Adaptive front lighting system (AFS) | |
Fuse MINI 20A | F41 | Instrument panel | |
Fuse MINI 10A | F42 | Engine control module, transmission control module, electric hydraulic power steering (EHPAS) 15 feed | |
Fuse MINI 5A | F43 | Headlamp levelling, adaptive front lighting system (AFS) | |
Fuse MINI 15A | F45 | Rear window wiper |

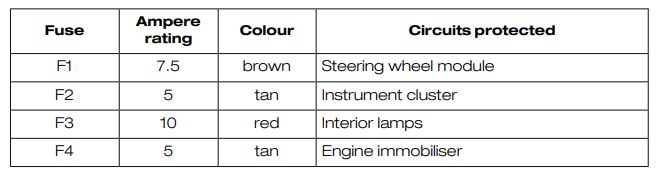

Central fuse box
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 7.5A | F1 | Steering wheel module | |
Fuse MINI 5A | F2 | Instrument cluster | |
Fuse MINI 10A | F3 | Interior lamps | |
Fuse MINI 5A | F4 | Engine immobiliser | |
Fuse MINI 7.5A | F5 | Adaptive cruise control (ACC) | |
Fuse MINI 5A | F6 | Rain sensor | |
Fuse MINI 15A | F7 | Cigar lighter | |
Fuse MINI 10A | F8 | Fuel filler flap unlock supply | |
Fuse MINI 15A | F9 | Windscreen washers - rear | |
Fuse MINI 15A | F10 | Windscreen washers - front | |
Fuse MINI 10A | F11 | Luggage compartment release supply | |
Fuse MINI 10A | F12 | Fuel filler flap lock supply | |
Fuse MINI 20A | F13 | Fuel pump | |
Fuse MINI 7.5A | F13 | Fuel pump [2.2L Duratorq] | |
Fuse MINI 5A | F14 | Remote frequency receiver, Interior motion sensor | |
Fuse MINI 5A | F15 | Ignition switch | |
Fuse MINI 5A | F16 | Battery backup sounder (alarm system), OBD II (board computer diagnostics) | |
Fuse MINI 5A | F17 | Not used | |
Fuse MINI 10A | F18 | SRS (airbag) supply | |
Fuse MINI 7.5A | F19 | ABS, yaw rate sensor (ESP), electric parking brake (EPB), accelerator pedal supply | |
Fuse MINI 7.5A | F20 | Electronic feed, electronic fuse | |
Fuse MINI 15A | F21 | Audio system (including voice control) | |
Fuse MINI 5A | F22 | Brake lamp switch | |
Fuse MINI 20A | F23 | Sunroof | |
Fuse MINI 5A | F24 | Steering column unit, climate control module |
Rear fuse box (4-door and 5-door)
| Type | No. | Description | |
|---|---|---|---|
Fuse ATO 25A | FA1 | Door module (left-hand front) (window up/ down, central locking, electric folding mirror, heated mirror) | |
Fuse ATO 25A | FA2 | Door module (right-hand front) (window up/ down, central locking, electric folding mirror, heated mirror) | |
Fuse ATO 25A | FA3 | Door module (left-hand rear) (window up/ down) | |
Fuse ATO 25A | FA4 | Door module (right-hand rear) (window up/ down) | |
Fuse ATO 10A | FA5 | Rear locking (without rear door modules) | |
Fuse ATO 15A | FA6 | Auxiliary power socket | |
Fuse ATO 5A | FA7 | Relay coils | |
Fuse ATO 20A | FA8 | Keyless vehicle module | |
Fuse ATO 30A | FA10 | Electric driver's seat | |
Fuse FMX/JCase 20A | FA11 | Accessories, trailer module | |
Fuse ATO 5A | FB1 | Parking aid module | |
Fuse ATO 15A | FB2 | Suspensión module | |
Fuse ATO 15A | FB3 | Heated driver's seat | |
Fuse ATO 15A | FB4 | Heated front passenger seat | |
Fuse ATO 15A | FB5 | Left-hand rear heated seat | |
Fuse ATO 15A | FB7 | Right-hand rear heated seat | |
Fuse ATO 30A | FB9 | Electric front passenger seat | |
Fuse ATO 10A | FB10 | Anti-theft alarm hom | |
Fuse ATO 7.5A | FC5 | CD changer, rear seat entertainment system | |
Fuse ATO 5A | FC7 | Seat memory function module | |
Fuse ATO 20A | FC8 | Keyless entry |
Rear fuse box (state)
| Type | No. | Description | |
|---|---|---|---|
Fuse ATO 25A | FA1 | Door module (left-hand front) (window up/ down, central locking, electric folding mirror, heated mirror) | |
Fuse ATO 25A | FA2 | Door module (right-hand front) (window up/ down, central locking, electric folding mirror, heated mirror) | |
Fuse ATO 25A | FA3 | Door module (left-hand rear) (window up/ down) | |
Fuse ATO 25A | FA4 | Door module (right-hand rear) (window up/ down) | |
Fuse ATO 10A | FA5 | Rear locking (without rear door modules) | |
Fuse ATO 15A | FA6 | Auxiliary power socket | |
Fuse ATO 5A | FA7 | Relay coils | |
Fuse ATO 20A | FA8 | Keyless vehicle module | |
Fuse ATO 30A | FA10 | Electric driver's seat | |
Fuse FMX/JCase 20A | FA11 | Accessories, trailer module | |
Fuse ATO 5A | FB1 | Parking aid module | |
Fuse ATO 15A | FB2 | Suspensión module | |
Fuse ATO 15A | FB3 | Heated driver's seat | |
Fuse ATO 15A | FB4 | Heated front passenger seat | |
Fuse ATO 15A | FB5 | Left-hand rear heated seat | |
Fuse ATO 15A | FB7 | Right-hand rear heated seat | |
Fuse ATO 30A | FB9 | Electric front passenger seat | |
Fuse ATO 10A | FB10 | Anti-theft alarm hom | |
Fuse ATO 7.5A | FC5 | CD changer, rear seat entertainment system | |
Fuse ATO 5A | FC7 | Seat memory function module | |
Fuse ATO 20A | FC8 | Keyless entry |
Ford Mondeo fuse box diagrams change across years, pick the right year of your vehicle:
Doesn't match your car?Ask for your diagram
Found a mistake? Let us know!
Source: Ford Mondeo 2010 Owner's Manual
