1995 Chevrolet Blazer fuse box diagram
The 1995 Blazer generation S10-2 (also known as "GMT330") has one fuse box:
Fuse B/ock
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 20A | 1 | Stop Lamps, Hazard Lamps, Chime, CHMSL Relay, CHMSL Lamp | |
Fuse MINI 20A | 2 | Dome Lamps, Cargo Lamps, Visor Vanity Mirror, Cigarette Lighter, Inside Rearview Mirror Lamp, Overhead Console Lamps, Glove Box Lamp, Horns, Horn Relay, IP Courtesy Lamps, Power Outside Rearview Mirror, Liftglass Release Motor, Illuminated Entry Module | |
Fuse MINI 20A | 3 | Park Lamps, License Plate Lamps, Electric Shift Transfer Case Module, Under Hood Lamp, Rear Wiper, Fog Lamp Relay, Door Switch Lamp | |

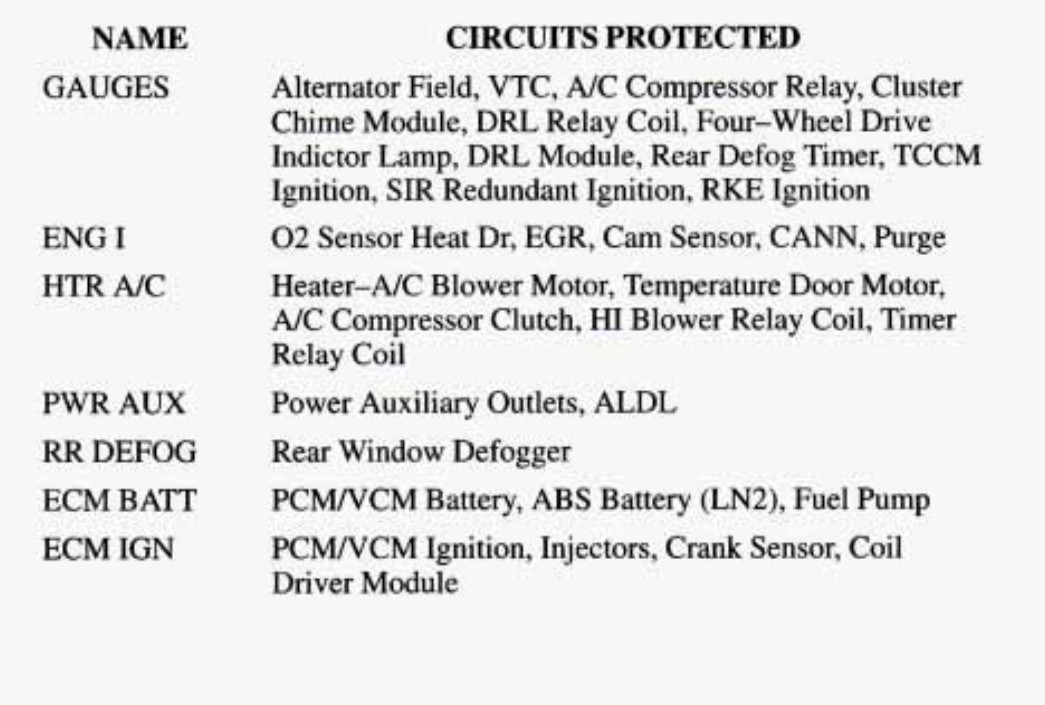

Fuse MINI 20A | 5 | O2 Sensor Heat Dr, EGR, Cam Sensor, CANN, Purge | |
Fuse MINI 25A | 6 | Heater-A/C Blower Motor, Temperature Door Motor, A/C Compressor Clutch, HI Blower Relay Coil, Timer Relay Coil | |
Fuse MINI 20A | 4 | Alternator Field, VTC, A/C Compressor Relay, Cluster Chime Module, DRL Relay Coil, Four-Wheel Drive Indictor Lamp, DRL Module, Rear Defog Timer, TCCM Ignition, SIR Redundant Ignition, RKE Ignition | |
Fuse MINI 25A | 7 | Power Auxiliary Outlets, ALDL | |
Fuse MINI 30A | 8 | Rear Window Defogger | |
Fuse MINI 20A | 9 | PCM/VCM Battery, ABS Battery (LN2), Fuel Pump | |
Fuse MINI 20A | 10 | PCM/VCM Ignition, Injectors, Crank Sensor, Coil Driver Module | |
Fuse MINI 20A | 11 | Radio, Inside Rearview Mirror Map Lamp, Console Reading Lamps, Rear Wiper, Rear Overhead Console Display | |
Fuse MINI 10A | 13 | Clock, Radio Battery, CD Player | |
Fuse MINI 10A | 14 | Cluster Illumination, Ash Tray Lamp, Radio Illumination, Heater Lamp, Four-Wheel Illumination, Chime Module, Fog Lamp Rear Wiper Switch, Rear Defog Switch Lift Glass Release Switch Illumination, Console Illumination | |
Fuse MINI 10A | 15 | Daytime Running Lamps | |
Fuse MINI 15A | 16 | Turn Signal and Back-up Lamps | |
Fuse MINI 25A | 17 | Windshield Washer, Windshield Wiper Motor | |
Fuse MINI 20A | 18 | DRAC, Anti-Lock Braking System, Cruise Control | |
Fuse MINI 20A | 19 | Electric Shift Transfer Case | |
Fuse MINI 10A | 20 | Crank Signal | |
Fuse MINI 20A | 21 | Fog Lamp Relay, Fog Lamps | |
Fuse MINI 10A | 22 | Air Bag Module | |
Fuse MINI 10A | 23 | 4L60E Automatic Transmission | |
Fuse MINI 10A | 24 | PRNDL Power | |

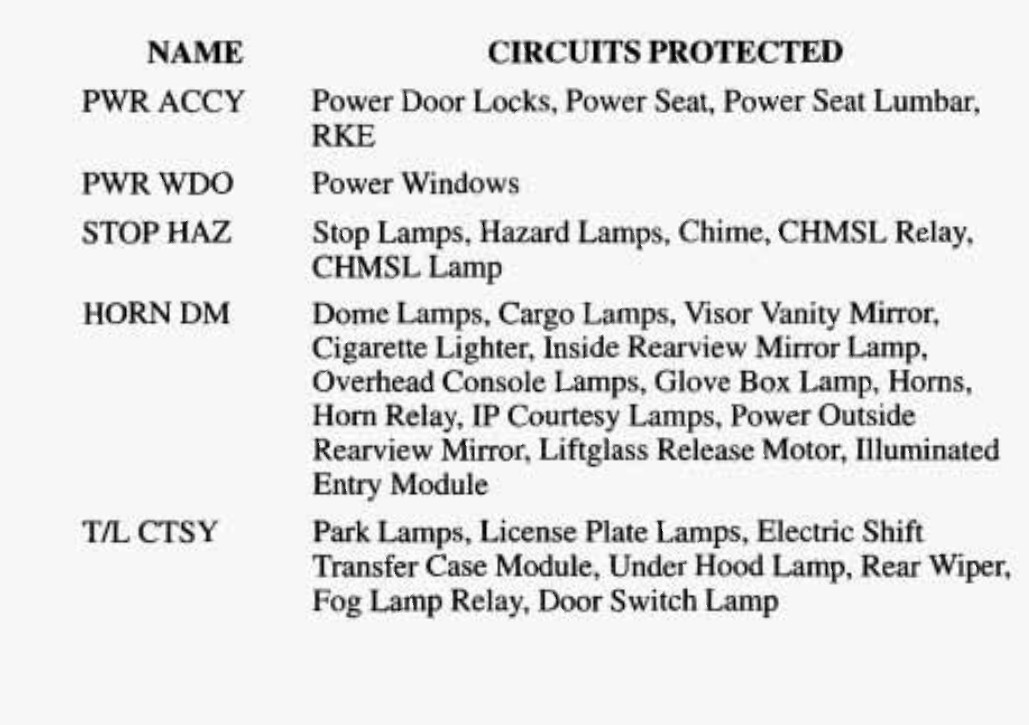

Circuit breaker ATO | A | Power Door Locks, Power Seat, Power Seat Lumbar, RKE | |
Circuit breaker ATO | B | Power Windows |
