2018 Hyundai Elantra Hatchback Nu-2.0l-Gdi fuse box diagram
The 2018 Elantra generation Gen6 (also known as "AD") has 2 different fuse boxes:
Instrument panel fuse panel diagram
Engine compartment fuse panel diagram

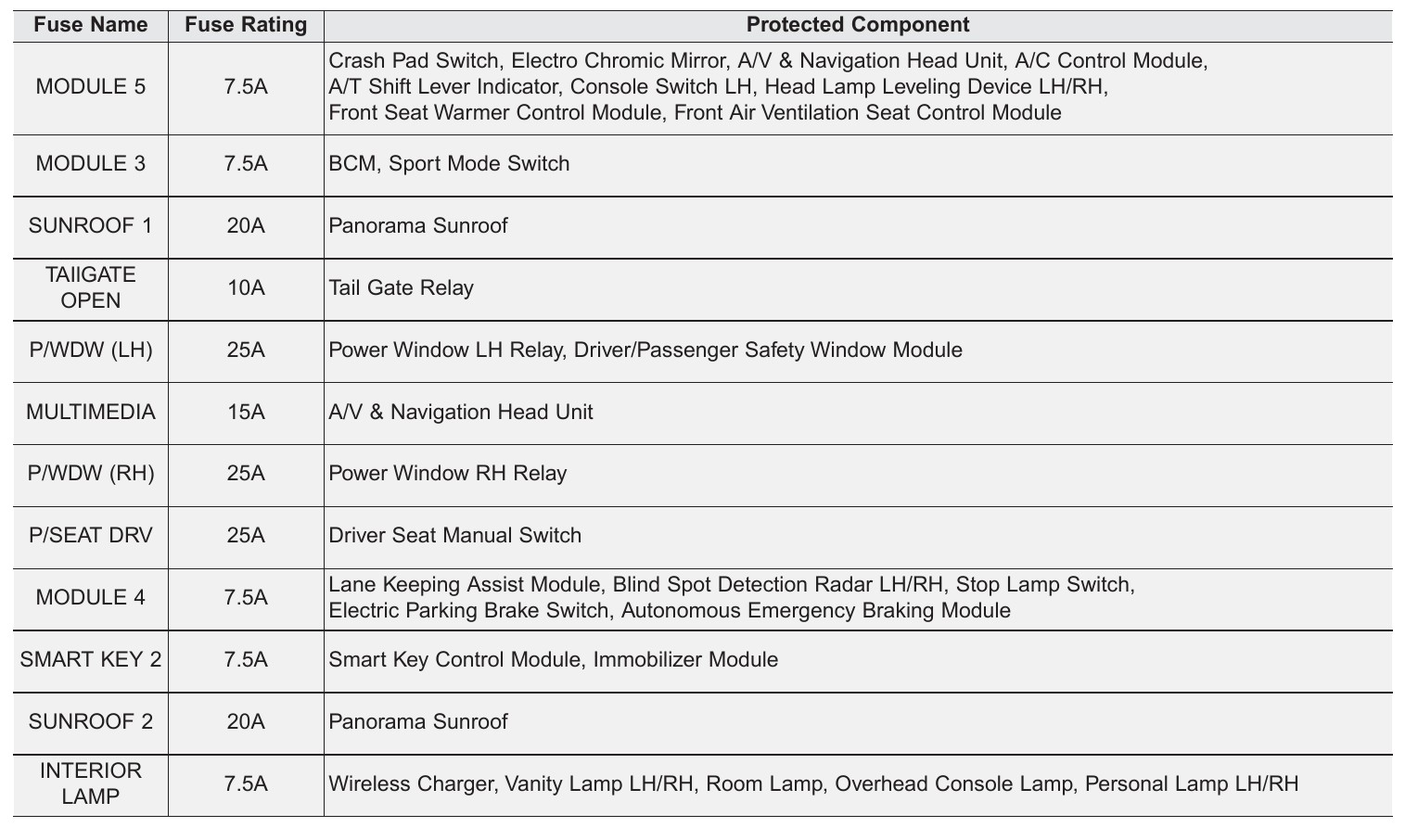

Instrument panel fuse panel
| Type | Description | |
|---|---|---|
Fuse MICRO2 7.5A | MODULE 5 Crash Pad Switch, Electro Chromic Mirror, A/V & Navigation Head Unit, A/C Control Module, A/T Shift Lever Indicator, Console Switch LH, Head Lamp Leveling Device LH/RH, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module | |
Fuse MICRO2 7.5A | MODULE 3 BCM, Sport Mode Switch | |
Fuse MICRO2 20A | SUNROOF 1 Panorama Sunroof | |
Fuse MICRO2 10A | TAILGATE OPEN Tail Gate Relay | |
Fuse MICRO2 25A | P/WDW (LH) Power Window LH Relay, Driver/Passenger Safety Window Module | |
Fuse MICRO2 15A | MULTIMEDIA A/V & Navigation Head Unit | |
Fuse MICRO2 25A | P/WDW (RH) Power Window RH Relay | |
Fuse MICRO2 25A | P/SEAT DRV Driver Seat Manual Switch | |
Fuse MICRO2 7.5A | MODULE 4 Lane Keeping Assist Module, Blind Spot Detection Radar LH/RH, Stop Lamp Switch, Electric Parking Brake Switch, Autonomous Emergency Braking Module | |
Fuse MICRO2 7.5A | SMART KEY 2 Smart Key Control Module, Immobilizer Module | |
Fuse MICRO2 20A | SUNROOF 2 Panorama Sunroof | |
Fuse MICRO2 7.5A | INTERIOR LAMP Wireless Charger, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Personal Lamp LH/RH | |
Fuse MICRO2 7.5A | MEMORY 2 BCM | |
Fuse MICRO2 10A | MEMORY 1 A/C Control Module, Instrument Cluster, Auto Light & Photo Sensor, Electro Chromic Mirror, ICM Relay Box (Outside Mirror Folding/Unfolding Relay) | |
Fuse MICRO2 30A | AMP AMP | |
Fuse MICRO2 7.5A | MODULE 6 Smart Key Control Module, BCM | |
Fuse MICRO2 7.5A | MDPS MDPS Unit | |
Fuse MICRO2 7.5A | MODULE 1 Hazard Switch, Center Door Lock Switch, Ignition Key Interlock Switch, Driver/Passenger Smart Key Outside Handle, Data Link Connector | |
Fuse MICRO2 7.5A | MODULE 7 Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module | |
Fuse MICRO2 7.5A | A/BAG IND Instrument Cluster, Center Door Lock Switch | |
Fuse MICRO2 7.5A | BRAKE SWITCH Smart Key Control Module, Stop Lamp Switch | |
Fuse MICRO2 7.5A | START Without Smart Key : Ignition Key Switch With Smart Key : Smart Key Control Module | |
Fuse MICRO2 7.5A | CLUSTER Instrument Cluster | |
Fuse MICRO2 20A | DR LOCK Door Lock/Unlock Relay, ICM Relay Box (T/Turn Unlock Relay) | |
Fuse MICRO2 10A | AEB Autonomous Emergency Braking Module | |
Fuse MICRO2 20A | S/HEATER Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module | |
Fuse MICRO2 7.5A | A/CON1 A/C Control Module, Cluster lonizer, E/R Junction Block (Blower Relay) | |
Fuse MICRO2 15A | SMART KEY 1 Smart Key Control Module, Immobilizer Module | |
Fuse MICRO2 15A | A/BAG SRS Control Module | |
Fuse MICRO2 25A | IG1 PCB Block (ABS3, ECU5, SENSOR4, TCU2) | |
Fuse MICRO2 10A | MODULE 2 Wireless Charger, Smart Key Control Module, BCM, A/V & Navigation Head Unit, Power Outside Mirror Switch, E/R Junction Block (Power Outlet Relay), AMP | |
Fuse MICRO2 15A | WASHER Multifunction Switch | |
Fuse MICRO2 10A | WIPER (LO/HI) ECM/PCM, BCM | |
Fuse MICRO2 15A | WIPER (RR) Rear Wiper Relay, Rear Wiper Motor | |
Fuse MICRO2 10A | HEATED MIRROR Driver/Passenger Power Outside Mirror, A/C Control Module, ECM/PCM | |
Fuse MICRO2 20A | POWER OUTLET Rear Power Outlet #2 | |
Fuse MICRO2 15A | HEATED STEERING BCM | |
Fuse MICRO2 25A | SPARE1 Spare | |
Fuse MICRO2 10A | SPARE2 Spare | |
Fuse MICRO2 20A | SPARE3 Spare | |
Fuse MICRO2 10A | SPARE4 Spare | |
Fuse MICRO2 10A | SPARE5 Spare | |
Fuse MICRO2 10A | SPARE6 Spare | |
Fuse MICRO2 10A | SPARE7 Spare |
Engine compartment fuse panel
| Type | Description | |
|---|---|---|
Multi fuse block MUSB | MAIN E/R Junction Block (Fuse-ABS1, - ABS2, B/Alarm, Power Outlet1) | |
Multi fuse block MUSB | MDPS 1 MDPS Unit, Battery | |
Multi fuse block MUSB | B+5 PCB Block (Fuse - ECU4, ECU3, Horn, Wiper, Engine Control Relay) | |
Multi fuse block MUSB | B+2 IGPM (Fuse - S/Heater, IPS0, IPS1, IPS2) | |
Multi fuse block MUSB | B+3 IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8) | |
Multi fuse block MUSB | B+4 IGPM (Fuse - AMP, P/WDW LH, P/WDW RH, Tail Gate Open, Sunroof1, Sunroof2, P/Seat (DRV)) | |
Multi fuse block MUSB | COOLING FAN 1 E/R Junction Block (Cooling Fan1 Relay) | |
Multi fuse block MUSB | REAR HEATED E/R Junction Block (Rear Heated Relay) | |
Multi fuse block MUSB | BLOWER E/R Junction Block (Blower Relay) | |
Multi fuse block MUSB | IG1 Ignition Switch, E/R Junction Block (ACC Relay, IG1 Relay) | |
Multi fuse block MUSB | IG2 Ignition Switch, E/R Junction Block (IG2 Relay) | |
Multi fuse block MUSB | PTC HEATER 1 PTC Heater1 | |
Fuse MICRO2 20A | POWER OUTLET 3 Rear Power Outlet 1 | |
Fuse MICRO2 20A | POWER OUTLET 2 Front Power Outlet | |
Fuse MICRO2 15A | TCU1 TCM | |
Fuse MICRO2 20A | VACUUM PUMP Vacuum Pump | |
Fuse MICRO2 20A | FUEL PUMP E/R Junction Block (Fuel Pump Relay) | |
Fuse FMM/MCase 40A | COOLING FAN 2 E/R Juntion Block (Cooling Fan2 Relay, Cooling Fan3 Relay) | |
Fuse FMM/MCase 40A | B+1 IGPM (Fuse - Door Lock, Smart Key1, Module1, Brake Switch, Reak Current Autocut Device) | |
Fuse FMM/MCase 40A | DCT 1 TCM | |
Fuse FMM/MCase 40A | DCT 2 TCM | |
Fuse MINI 10A | B/ALARM HORN ICM Relay Box (Burglar Alarm Horn Relay) | |
Fuse FMM/MCase 40A | ABS 1 Multipurpose Check Connector, ESC Control Module | |
Fuse FMM/MCase 30A | ABS 2 Multipurpose Check Connector, ESC Control Module | |
Fuse FMM/MCase 40A | POWER OUTLET 1 E/R Junction Block (Power Outlet Relay) | |
Fuse MICRO2 10A | B/UP LAMP Back-Up Lamp Switch | |
Fuse MICRO2 10A | SENSOR2 Purge Control Solenoid Valve, Oil Control Valve #1/#2, Variable Intake Solenoid Valve, E/R Junction Block (Cooling Fan2 Relay, Cooling Fan3 Relay) | |
Fuse MICRO2 10A | ECU2 ECM/PCM | |
Fuse MICRO2 20A | ECU1 ECM/PCM | |
Fuse MICRO2 15A | SENSOR1 Oxygen Sensor (Up), Oxygen Sensor (Down) | |
Fuse MICRO2 20A | IGN COIL Ignition Coil #1/#2/#3/#4, Condenser | |
Fuse MICRO2 15A | ECU3 ECM/PCM | |
Fuse MICRO2 10A | ECU5 ECM/PCM | |
Fuse MICRO2 10A | ABS3 ABS/ESC Control Module, Multipurpose Check Connector | |
Fuse MICRO2 15A | ABS3 E/R Junction Block (Fuse - B/Up Lamp), Transaxle Range Switch, TCM | |
Fuse MICRO2 10A | SENSOR3 E/R Junction Block (Fuel Pump Relay) | |
Fuse MICRO2 25A | WIPER Wiper Relay | |
Fuse MICRO2 15A | HORN Horn Relay | |
Connector | CONNECTOR1 Connector | |
Connector | CONNECTOR2 Connector | |
Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |
